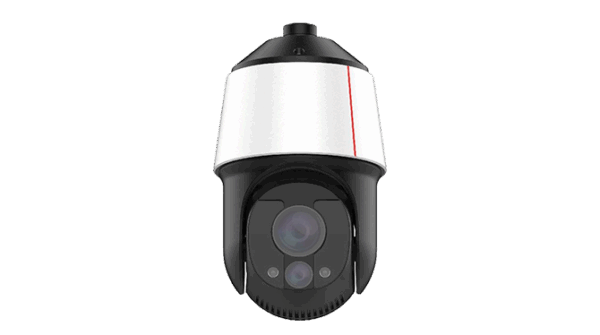

HWT-M6741-10-Z40-E2

2 TOPS computing power
Supports omni-data structuring, automatic tracking, behavior analysis, crowd flow analysis, target detection, person detection, object classification (motor vehicle, non-motorized vehicle, and pedestrian), vehicle recognition, vehicle event detection, and traffic flow statistics
Supports backlight adaptation and overcast adaptation
1/1.8″ CMOS sensor
Online loading and upgrade of algorithms
120 dB super wide dynamic range (WDR), ensuring that both foreground and background objects are clearly identified in environments with sharp light contrast
Parking violation detection
Dual camera modules for both panoramic view and detail capture
Axis deviation correction for dual-lens self-calibration
Agglomerate fog detection based on deep learning algorithms
Image stabilization based on six-axis gyroscope and AI to ensure image quality
Built-in electronic compass and accelerometer, reflecting the PTZ direction and tilt range in real time
Supports omni-data structuring

Categories: AI Camera, HOLOWITS

Description

Max resolution	Wide-angle prime lens: 4MP: 2560 (H) x 1440 (V) Zoom lens: 4MP: 2560 (H) x 1440 (V)
Sensor size	1/1.8″ CMOS
Shutter speed	The 1/3s to 1/68250s drop-down list box is added. The time can be manually set to 1/3, 1/4, 1/8, 1/12, or 1/15. Non-slow shutter level: 1/25,1/30,1/50,1/60,1/90,1/100,1/120,1/125,1/180,1/250,1/350,1/500, 1/725,1/1000,1/1500,1/2000,1/3000,1/4000,1/6000,1/10000,1/30000, 1/100000;Default value:1/25
Day/Night mode	Supported; automatic (ICR), color (default), B/W, and scheduled Sensitivity level: high (default), medium, and low Image triggering/Internal triggering
Gain control	Manual exposure: 101 levels configurable from 0 to 100 (step: 1; default value: 0)
White balance	Auto/Auto tracking/Manual/OnePush
Digital noise reduction	2D/3D noise reduction
WDR	120dB
Highlight compensation	Supported
EIS	Supported; Supports sensitivity levels.
Optical Defogging/Algorithm-assisted Defogging	Not Supported/Supported
Exposure compensation	Supported
Exposure mode	Supported
SNR	>45dB
Motorized focus	Supported
Day/Night focus compensation	Supported
Backlight adaptation	Supported
Overcast adaptation	Supported
Image correction	Zoom lens: vertical, horizontal, or both Wide-angle prime lens: vertical, horizontal, or both
Digital zoom/Optical zoom	16X/40X
Privacy mask	Supported
eCompass	Supported
Power type	AC 24V, POE(IEEE 802.3bt)
IP rating	IP66
IK rating	IK10(except for the viewing window)
