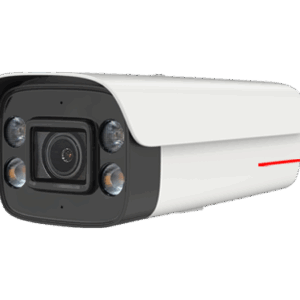

HWT-D2120-10-LI-SV

1 TOPS computing power
Supports multi-algorithm switchover, behavior analysis, crowd flow analysis, target detection, person detection, object (motor vehicle, non-motorized vehicle, and pedestrian) classification, vehicle recognition, vehicle event detection, and traffic flow statistics
Supports backlight adaptation and overcast adaptation
1/2.7″ CMOS sensor
Online loading and upgrade of algorithms
Supports intelligent infrared/white-light compensation
Built-in dual microphones and speaker for voice intercom
Supports voice intercom, alarm-triggered announcement playing, and customized audio files
Audible and visual alarm
120 dB super wide dynamic range (WDR), ensuring that both foreground and background objects are clearly identified in environments with sharp light contrast
Audible and visual alarm

Categories: AI Camera, HOLOWITS

Description

Technical Spec

Max resolution	2MP 1920(H)*1080(V)
Image sensor	1/2.7″ CMOS/2MP 1920(H)*1080(V)
Min illumination	Color: 0.002 lux (F1.2, AGC ON, 1/30s shutter speed); B/W: 0.0005 lux (F1.2, AGC ON, 1/30s shutter speed) or 0 lux (infrared illuminator enabled)
Day/Night mode	Supported; automatic (ICR), color, B/W, and scheduled (default: automatic) Sensitivity level: high (default), medium, and low Image triggering/Internal triggering
White balance	Auto/Manual/OnePush
Digital noise reduction	2D/3D noise reduction
WDR	120dB
HLC/BLC	Supported/Supported
EIS	Supported; Sensitivity levels are not supported.
Optical Defogging/Algorithm-assisted Defogging	Supported
Signal-to-Noise Ratio(SNR)	>45dB
Power type	DC12V,PoE(IEEE 802.3at)
Power consumption	Maximum: 12.8W, typical: 3.2W
Operating temperature –	-30℃ to 60℃
Operating humidity	5% to 95% (non-condensing)
Surge protection	4kV
IP rating	IP67
Equipment Anti Corrosion	Class C corrosion resistance
IK rating	IK10
Weight	Net weight 1.0kg; Gross weight 1.2KG
Dimensions	Device dimensions 88mm×107mm×206mm; Package dimensions 115mm×140mm×294mm
