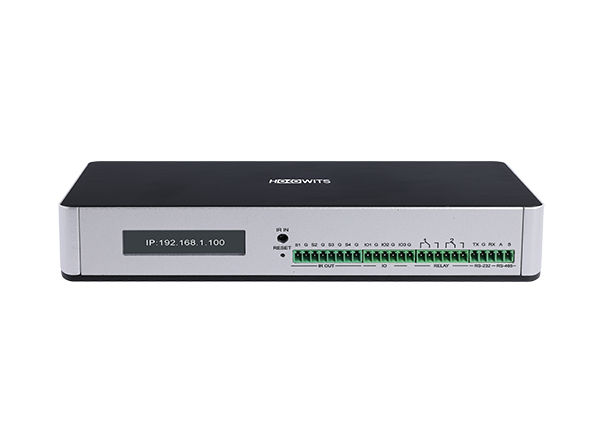

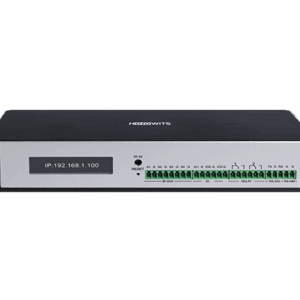

DCT-S1080-1
S Series 1080P 1IO Distributed Control Terminal
- The decentralized system features independent nodes for enhanced stability, embedded Linux OS, 24/7 operation, auto-recovery, dual-link backup (fiber/network), and dual power (POE/adapter) with low power consumption (12W max).
- High-performance video processing supports 4K/1080P@60fps capture/display (YUV 4:4:4/4:2:2), H.265 decoding, dual-stream transmission (1080P+360P), low latency (10ms), and packet-loss resilience (10%) for tear-free playback.
- Integrated KVM enables cross-platform graphical screen transmission, virtual mouse roaming, OSD previews (8 per page), role-based permissions, and auto-restore of signal sources upon login.
- Centralized control includes RS-232/485, IR/RELAY/IO interfaces, programmable IR learning, OLED status/IP display, and sensor integration, complemented by a desktop/rack-mount design.
- Advanced AV tools offer real-time video wall adjustments (splicing, zoom, movement), one-click signal push, audio EQ (10-band), signal cropping/annotation, and OCR text extraction for cross-platform use.
- Dynamic overlays support customizable logos, subtitles, time/temperature/humidity displays, real-time people counting, and annotation tools (shapes, undo/erase) across multiple interfaces.
- Security features SM2/SM3/SM4 encryption, offline display during server disconnection, batch upgrades, and synchronized multi-node operations with robust data redundancy and recovery protocols.
- Description
Description
Technical Spec
| Processing capability | Support 1920*1080P@60fps, 1920*1080P@30fps high-definition video signal input and output and backward compatible, 4 channels 1080P@60 H.265, Support YUV4:4:4/YUV4:2:2/YUV4:2:0 multiple image formats |
| Codec capability | Support H.264/H.265 video coding, PCM audio lossless transmission |
| Video port | 1*HDMI IN (support audio), 1*HDMI OUT(support audio) |
| Audio port | 1*3.5mm stereo input, 1*3.5mm stereo output, input sensitivity: 775mV |
| USB port | 2*USB2.0 (KVM interface) |
| Network port | 1*RJ45, 10/100/1000Base-T |
| OPTICAL port | 1*SFP |
| Serial port | 1*RS-485, 1*RS-232 |
| Infrared port | 1*IR learning window, 4*IR OUT |
| I/O port | 3*I/O port |
| Weak relay port | 2*RELAY port |
| Reset button | 1*pinhole RESET button |
| Mode switch | 1* input and output mode switch |
| Display screen | 2.23-inch OLED display with128*32 pixels |
| Power supply | DC 12V /POE |
| Max power consumption | 12W |
| Ambient temperature | -10°C~45°C (working state) -15°C~ 45°C (non-working state) |
| Ambient humidity | 5%~90% (working status), no condensation |
| Weight | About 0.9kg |
| Dimension (L*W*H) | 222*117*43.8mm |
