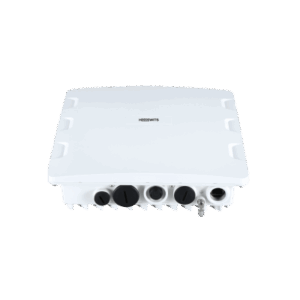

ACA-AP55/AP80
Access point Transmitter with with 55/80 Meter Coverage
- 【ACA-AP55】Access point Transmitter with with 55 meter coverage
- 【ACA-AP80】Access point Transmitter with with 80 meter coverage
- The wireless access point has built-in smart matrix antenna, which can provide high-speed, and low-latency wireless network.
- Description
Description
Technical Spec
ACA-AP55
| Ethernet port | 1*10/100/1000Mbps |
| Console port | 1 RJ45 port |
| POE | Support 802.3at/bt Ethernet power supply standard |
| Adapter power supply | 12V/2A |
| Transmission power | ≤20dBm |
| Adjustable power granularity | 1dBm |
| Adjustable power range | 1dBm~corresponding national standards |
| Power consumption | <14.85W |
| Antenna | Built-in matrix smart antenna |
| Reset/restore factory settings | Support |
| Status indicator | 1* system indicator: Blue, normal online: always on, inactive: blinking, abnormal power-on: light off |
| Working/Storage temperature | 0℃~45℃ |
| Protection class | IP41 |
| Weight | 0.473 kg |
| Dimension | 195*195*43mm |
| Working/Storage humidity | 10%~90%RH |
