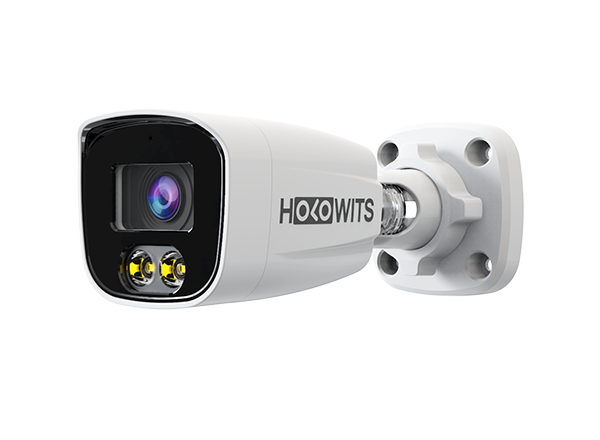

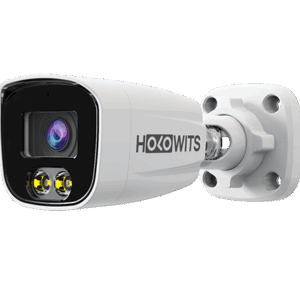

A1B IR Series
2MP | 5MP Analog Bullet Camera
- 【A1B-2R(2.8)】: 2MP IR Bullet Camera
- 【A1B-2R(3.6)】: 2MP IR Bullet Camera
- 【A1B-5R(2.8)】: 5MP IR Bullet Camera
- 【A1B-5R(3.6)】: 5MP IR Bullet Camera
- Note: Technical Spec may vary depending on the model. For precise parameters, please refer to the datasheet of the corresponding model
- Description
Description
Technical Spec
| Image Sensor | 1/3” or 1/2.7” CMOS |
| Maximum Resolution | 1920 (H)*1080 (V) / 2880 (H)*1620 (V) |
| Lens | 2.8mm / 3.6mm |
| Effective Pixels | 2MP Default: 2MP 25FPS(P)/30FPS(N); 5MP Default: 5MP@20FPS |
| Signal System | PAL/NTSC (Switched by OSD) |
| Day-Night Mode | IR Cut Filter |
| S/N Ratio | ≥50DB |
| Minimum Illumination | 0.02lux@F2.0 |
| BLC | AUTO |
| AWB | AUTO |
| AES | AUTO |
| OSD Language (6) | English/Chinese/Russian/Japanese/Korean |
| White Light Range | 20m |
| IR Range | 20m |
| Video Output | AHD/TVI/CVI/CVBS |
| Video recording takes up space | 1min ≈ 35.2MB（3.6mm Lens） |
| Operating Temperature | -20℃ – 60℃ |
| Working Voltage | DC12V |
