WS-C3650-48TS-S
Original price was: $9,270.00.$2,243.00Current price is: $2,243.00.

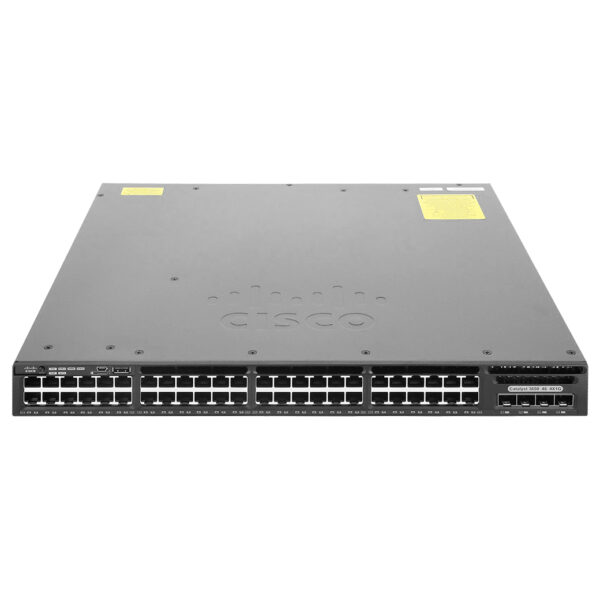

| Model: | WS-C3650-48TS-S Catalyst 3650 Switch |
| Detail: | Cisco Catalyst 3650 48 x 10/100/1000 Ehternet ports – Layer 3 – 4 x 1G SFP uplinks – IP Base IOS -Managed |
PDF ATTACHMENT : ws-c3650-48ts-s-datasheet
Enquire Now
- Description
Description
We provide you the best Cisco WS-C3650-48TS-S Switch at Gear Net Technologies have 11 years of involvement with conveying and providing IT, systems administration, and security items and administrations across the globe. We have Cisco switches available to be purchased, so you can get the item at an insignificant rate than elsewhere.
While constructing any sort of office, the most fundamental piece of gear you will require is Switch. Likewise, there is just one organization you will hear nowadays that produces a-list switches… and that is Cisco! Cisco produces switches for each area and necessity, from Cisco Switches for both Access and Compact Campus LAN Switches to Cisco Nexus Series switches for server farms.
The Cisco Catalyst® 3650 Series is the up and coming age of big business class independent and stackable access-layer switches that give the establishment a full combination of wired and remote on a solitary stage. The Cisco Catalyst WS-C3650-48TS-S Switch is based on the high-level Cisco StackWise®-160 and exploits the new Cisco® Unified Access Data Plane (UADP) application-explicit coordinated circuit (ASIC). This switch can empower uniform wired-remote approach authorization, application permeability, adaptability, application improvement, and prevalent flexibility. We give you the best value Cisco Catalyst WS-C3650-48TS-S PoE Switch WS-C3650-48TS-S accessible in Dubai, UAE. The Cisco Catalyst 3650 Series Switches uphold full IEEE 802.3at Power over Ethernet Plus (PoE+) and offer particular and field-replaceable excess fans and force supplies. They can help you increment remote efficiency and decrease your TCO. for server farms.
WS-C3650-48TS-S Specification |
|
|
Enclosure type |
Rack-mountable – 1U |
|
Ports |
48 x 10/100/1000 + 4 x 1G SFP |
|
Network management Interface |
· Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling |
|
Available PoE Power |
None |
|
Switching Capacity |
176Gbps |
|
Maximum stacking number |
9 |
|
Stack Bandwidth |
160Gbps |
|
Forwarding Performance |
77.37Mpps |
|
FNF entries |
48000 |
|
Maximum VLANs IDs |
4,094 |
|
MAC Address Table Size |
32K |
|
CPU |
Multicore CPU |
|
RAM |
4 G |
|
Flash Memory |
2 G |
|
Wireless |
|
|
Number of AP per switch/stack |
50 |
|
Number of wireless clients per switch/stack |
1000 |
|
Total number of WLANs per switch |
64 |
|
Wireless bandwidth per switch |
up to 40Gbps |
|
Supported Aironet AP series |
3700, 3600, 3500, 2600, 1600, 1260, 1140, 1040 |
|
Expansion / Connectivity |
|
|
Console ports |
USB (Type-B), Ethernet (RJ-45) |
|
Expansion Slot(s) |
power redundant slot |
|
Accessory & Rack Moubt Kits |
· ACC-KIT-T1: Accessory kit |
|
Stacking module & cable |
· C3650-STACK-KIT: Stack Module |
|
Power supply |
PWR-C2-1025WAC |
|
Power Device |
Power supply – redundant – plug-in module |
|
Power Redundancy |
optional |
|
Voltage range (Auto) |
100V-240V |
|
Power Consumption of standalone (in Watts) |
86. 4 (max) |
|
Miscellaneous |
|
|
Width |
17.5 Inches (44.5 cm) |
|
Depth |
17.625 Inches (44.8 cm) |
|
Height |
1.73 Inches (4.4 cm) |
|
Shipping Weight |
17.49 Kg |
|
Rack Mounting Kit |
optional |
|
MTBF in hours |
527,580 |
|
Compliant Standards |
· IEEE 802.1D Spanning Tree Protoco |
|
System software / license |
|
|
System software |
IOS LAN Base (Upgradable) |
|
EnergyWise license |
ENERGY-MGMT, ENERGY-MGT-100-K9 |
|
Software license |
· C3650-48-S-E: IP Base to IP Services RTU paper license · L-C3650-48-S-E: IP Base to IP Services RTU electronic license |
|
Access Point Licenses |
· L-LIC-CT3650-UPG: Primary upgrade license SKU for Cisco 3650 wireless controller (e-delivery) |
|
Features |
· EEM · RPS Support · IP service-level agreements (SLAs) · Advanced IP unicast routing protocols · Jumbo Frames · VLANS · Voice Vlan · VTPv2 · CDPv2 · LLDP · 802.3ad LACP and PAgP · PVST/PVST+ · 802.1W/802.1S · Port Fast/Uplink Fast · Dynamic Trunking Protocol (DTP) · port CoS Trust and Override · Trusted Boundary · ACL Classification · ingress Policing · Auto QoS · Per VLAN policies · 802.1p queues · Scheduling · Priority Queuing · Configure CoS Priority Queues · Configure CoS Priority Queues · Configure Queue Weights · Configure Buffers and Thresholds · Class & Policy Maps · Modify CoS and DSCP Mapping · Weighted Tail Drop · IGMPv1,v2,v3 and MLDv1, v2 · DHCP server · DSCP transparency · HSRP, VRRP, BLGP · RIPv1, v2 EIGRP, PIM OSPF, OSPFv3, EIGRPv6, BGPv4, IS-ISv4 · VRF-lite · PIM-SM/DM, PIM sparse-dense mode, SSM · Flexible Netflow |
|
Advanced Network security |
· Port security · DHCP snooping · Dynamic ARP inspection (DAI) · IP source guard · The Unicast Reverse Path Forwarding (uRPF) |
|
Management |
· BRIDGE-MIB · CISCO-AUTH-FRAMEWORK-MIB · CISCO-VTP-MIB · EtherLike-MIB · HC-RMON-MIB · IEEE8021-PAE-MIB · IEEE8023-LAG-MIB |
|
Technical Support and Services |
· Cisco SMARTnet Service · Cisco Smart Foundation Service · Cisco SP Base Service · Cisco Focused Technical Support Services |
|
Environmental Ranges |
|
|
With AC power supply |
|
|
Operating temperature up to 5000 ft (1500 m) |
23ºF to 113ºF (-5ºC to +45ºC) |
|
Operating temperature up to 10,000 ft (3000 m) |
23ºF to 104ºF (-5ºC to +40ºC) |
|
Short-term exception at sealevel with single fan failure |
23ºF to 113ºF (-5ºC to +45ºC) |
|
Short-term exception up to 5000 feet (1500 m) |
23ºF to 122ºF (-5ºC to 50ºC) |
|
Short-term exception up to 10,000 feet (3000 m) |
23ºF to 113ºF (-5ºC to 45ºC) |
|
With DC power supply |
|
|
Operating temperature up to 6000 ft (1800 m) |
23ºF to 113ºF (-5ºC to +45ºC) |
|
Operating temperature up to 10,000 ft (3000 m) |
23ºF to 104ºF (-5ºC to +40ºC) |
|
Operating temperature up to 13,000 ft (4000m) |
23ºF to 95ºF (-5ºC to 35ºC) |
|
Short-term exception up to 6,000 feet (1800 m) |
23ºF to 131ºF (-5ºC to +55ºC) |
|
Short-term exception up to 10,000 feet (3000 m) |
23ºF to 122ºF (-5ºC to +50ºC) |
|
Short-term exception up to 13,000 feet (4000 m) |
23ºF to 113ºF (-5ºC to +45ºC) |
|
Short-term exception at sealevel with single fan failure |
23ºF to 113ºF (-5ºC to +45º) |
|
Storage environment |
-40ºF to 160ºF (-40ºC to 70ºC) |
|
Operating altitude |
Up to 16,400 Feet (Up to 5000m) |
|
Storage altitude |
Up to 16,400 Feet (Up to 5000m) |
|
Operating relative humidity |
5% to 96% noncondensing |
|
Storage relative humidity |
5% to 96% noncondensing |
|
Short-term exception at sealevel with single fan failure |
23ºF to 113ºF |
|
Storage environment |
-40ºF to 160ºF |
