Product Details
VS-S2T-10G
Original price was: $58,190.00.$19,802.00Current price is: $19,802.00.

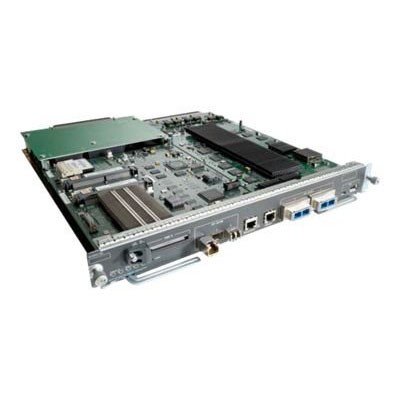

| Model: | VS-S2T-10G Cisco Catalyst 6500 Series Supervisor 2T |
| Detail: | Cisco 6500 Supervisor 2T VS-S2T-10G Catalyst 6500 Supervisor 2T – 2 ports 10GbE X2 – 2 ports SFP – MSFC5 PFC4 |
Description
VS-S2T-10G Specification |
|
|
Product Description |
Catalyst 6500 Supervisor VS-S2T-10G |
|
Devide Tyde |
Control Processor |
|
Ports |
2 * 10G X2 ports, 3 * 1G SFP ports |
|
Console ports |
10/100/1000 RJ-45 |
|
Centralized switching capacity |
2 Tbps, 4 Tbps(with VSS) |
|
Per-slot switching capacity |
80 Gbps |
|
FNF (Flexible NetFlow) entries |
512,000 |
|
Forn Factor |
Plug-in Module |
|
DRAM |
2GB for Lite and XL (4GB upgrade with 2GB memory upgrade (2+2) |
|
NVRAM |
4 MB |
|
Compact Flash |
1GB |
|
Throughput |
● 720 Mpps for IPv4 |
|
Routing entries |
● IPV4: 256,000 |
|
Bridge domains |
16,000 |
|
Security ACL entries |
64K shared for QoS / Security |
|
Acl labels |
16,000 |
|
CPU rate limiters (Dos protection) |
57 |
|
Aggregate traffic rate-limiting policers |
16,348 |
|
Layer 2 rate limiters |
20 ingress / 6 egress |
|
MAC entries |
512,000 |
|
Forwarding Entries |
256,000 per system |
|
VRFs |
8,192 |
|
GRE |
390 Mpps |
|
uRPF check (IPV4/IPV6) |
up to 16 |
|
Slot assignment |
●Catalyst 6503-E: Slot 1 and 2 |
|
Line-card Campatibility |
● WS-X6908-10G-2T, WS-X6908-10G-2TXL |
|
Fan tray and power supply supported |
● 1400W for 6503-E |
|
Software Compatibility |
● 12.2(50)SY and future releases |
|
Reliability and Availability |
● Virtual Switching System (VSS) |
|
Memory |
● MEM-SUP2T-2GB: Cisco Catalyst 6500 2GB Memory for Supervisor Engine 2T |
|
Compact Flash memory |
● MEM-C6K-CPTFL1G: Catalyst 6500 Compact Flash Memory 1GB |
|
Service Modules |
ACE 20, ACE 30, NAM-1, NAM-2, NAM-3, FWSM, ASA-SM, WiSM-1, WiSM-2 |
|
SW packages |
● IP BASE |
