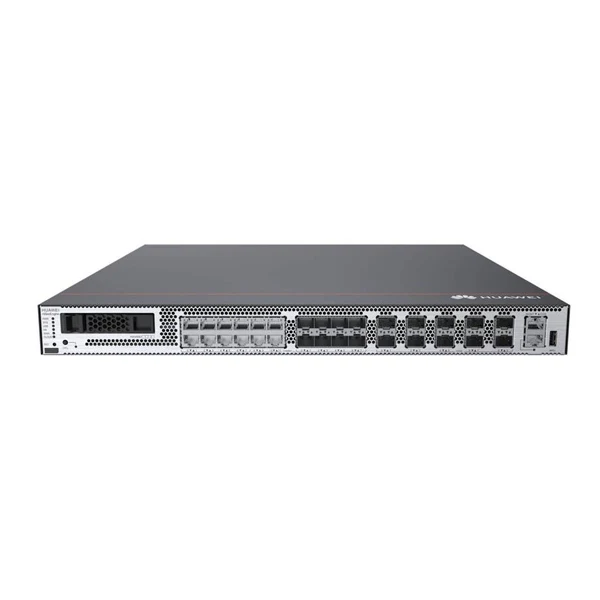

USG6635F-AC
$1,500.00
USG6635F(HTM) AC Host(8*GE COMBO + 4*GE RJ45 + 10*10GE SFP+ ,2 AC POWER)
WhatsApp Us
- Description
Description
| Basic Information | |
| Part Number | 02353WAV |
| Model | USG6635F-AC |
| Description | USG6635F(HTM) AC Host(8*GE COMBO + 4*GE RJ45 + 10*10GE SFP+ ,2 AC POWER) |
| Technical Specifications | |
| Installation Type | Rack |
| Cabinet installation standard | Cabinet with a depth of 600 mm or above |
| Chassis height [U] | 1 |
| Wide [mm] | 442 mm |
| Depth [mm] | 420 mm |
| Height [mm] | 43.6 mm |
| Weight without packaging [kg(lb)] | 7.3 (16.09) |
| Weight with packaging [kg(lb)] | 10.3 (22.71) |
| Maximum power consumption [W] | 242 |
| Maximum heat dissipation [BTU/hour] | 825.7 |
| Heat dissipation mode | The fan module locates at the air exhaust of the system. |
| Power supply mode | AC built-in |
| Rated input voltage [V] | – AC: 100 V to 240 V, 50 Hz/60 Hz – High-voltage DC: 240 V, DC |
| Input voltage range [V] | – AC: 90 V to 290 V, 45 Hz to 65 Hz – High-voltage DC: 190–290 V, DC |
| Maximum output power [W] | 600 |
| Maximum input current [A] | 8 |
| CPU | 1 CPU, 16 Cores/CPU, up to 2.0 GHz |
| Memory | DDR4 32GB with ECC |
| NOR Flash | 64MB |
| NAND Flash | 4 GB |
| Hard disk | Optional. You can purchase a 2.5-inch SATA hard disk (240 GB/960 GB/1000 GB/1920 GB) from Huawei based on the site requirements. The hard disk is hot swappable. |
| Redundant power supply | 1+1 |
| Redundant fans | 3+1 |
| Number of power modules | 2 |
| Number of fan modules | 4 |
| Types of fans | Pluggable |
| Airflow direction | Air intake vent from front and air outlet from rear. |
| Long-term operating altitude [m(ft.)] | Without hard disk driver: 0 m to 5000 m With hard disk driver: 0 m to 3000 m |
| Storage altitude [m(ft.)] | 0 m to 5000 m |
| Console port | RJ45 |
| Eth Management port | RJ45 |
