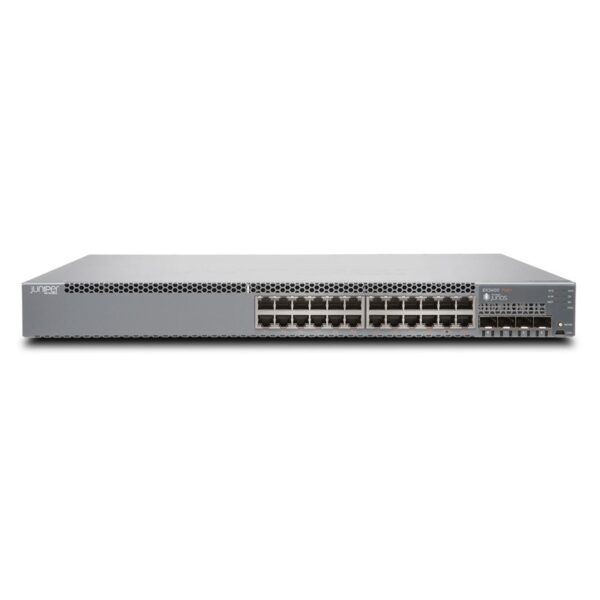

EX3400-24P
$1,320.00
| Model: | EX3400-24P – Juniper EX3400 Series Ethernet Switches |
| Detail: | EX3400 24-port 10/100/1000BaseT PoE+, 4 x 1/10G SFP/SFP+, 2 x 40G QSFP+, redundant fans, front-to-back airflow, 1 AC PSU JPSU-600-AC-AFO included (optics sold separately) |
- Description
Description
EX3400-24P Specification |
|
|
Description |
EX3400 24-port 10/100/1000BASE-T (24 PoE+ ports) with 4 SFP+ and 2 QSFP+ uplink ports (optics not included) |
|
Form factor |
Fixed platform |
|
Dimensions (W x H x D) |
17.4 x 1.7 x 13.8 in (43.7 x 4.4 x 35 cm) |
|
Backplane speed |
160 Gbps |
|
Data rate |
288 Gbps |
|
Throughput |
214 Mpps (wire speed) |
|
40GBASE quad small form-factor pluggable plus transceiver (QSFP+) port densities |
2 |
|
100GBASE C form-factor pluggable transceiver (CFP) port densities |
N/A |
|
Resiliency |
Redundant, field-replaceable power supplies |
|
Operating system |
Junos OS |
|
Traffic monitoring |
sFlow |
|
Quality-of-service (QoS) queues/port |
8 unicast/4 multicast |
|
MAC addresses |
32,000 |
|
Jumbo frames |
9216 bytes |
|
IPv4 unicast/multicast routes |
36,000/4,000 |
|
IPv6 unicast/multicast routes |
18,000/2,000 |
|
Number of VLANs |
4,096 |
|
ARP entries |
16,000 |
