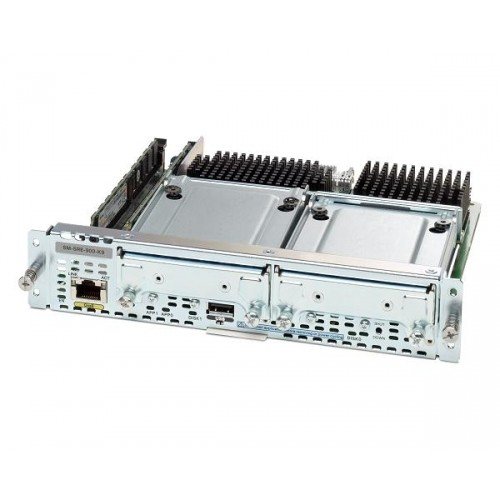

SM-SRE-900-K9

SM-SRE-900-K9 Specifications

Form factor

SM

CPU

Intel Core2 Duo, 1.86 GHz

DRAM

4 GB (default) or 8 GB

Compact Flash memory

2-GB internal USB flash-memory module

Hard disk

Two 500-GB SATA

(1 TB in non-RAID mode)

5400 rpm (SRE 900)

Hot-swappable hard disk drive (HDD)

Yes

RAID support

RAID 0 or 1 (application dependant)

Internal network interfaces

Gigabit Ethernet connectivity to router backplane

External network interfaces

One USB connector

One RJ-45 Gigabit Ethernet connector

Router platforms

Cisco 2911, 2921, 2951, 3925, 3925E, 3945, and 3945E Integrated Services Routers

Cisco IOS Software (on router)

Release 15.1(4)M

Embedded hardware-based cryptography acceleration

Yes

Applications

• Cisco Unity Express

• Cisco UCS Express

• Cisco AXP

• Cisco WLC

• Cisco WAAS

• Cisco Video Surveillance

• Infoblox Core Network Services

• Cisco Prime Network Analysis Module (NAM)

• Cisco Unified SIP Proxy

• Cisco Unified Messaging Gateway (UMG)

• Cisco Survivable Remote Site Voicemail (SRSV)

• Sagemcom Fax over IP

• Tiani Spirit Medical Data Exchange Solution

• Orion Health Rhapsody Connect

• NetScout nGenius Integrated Agent

• BlueCat Adonis DNS/DHCP and Proteus IPAM

• LogLogic MX-Virtual Appliance

• SecureLogix Voice Policy Firewall

• Open Text RightFax Fax over IP

• Visual Network Systems OmniPoint Element

• Uplogix Local Management Platform

• Industry Weapon CommandCenterHD

Power consumption (maximum)

50W

Dimensions (H x W x D)

1.58 x 7.44 x 7.5 in.

(4 x 18.9 x 19.1 cm)

Shipping dimensions (H x W x D with packaging)

9.5 x 7.5 x 2.5 in.

(24.1 x 19.1 x 6.4 cm)

Maximum weight

2.5 lb (1.1 kg)

Operating temperature

32 to 104°F (0 to 40°C) normal

23 to 131°F (-5 to +55°C) short term

Humidity

10 to 85% operating

Altitude (operating)

104°F (40°C) at sea level

104°F (40°C) at 6,000 ft (1,800m)

86°F (30°C) at 13,000 ft (4,000m)

27.2°C (81°F) at 15,000 ft (4,600m)

Note: De-rate 34.5°F (1.4°C) per 1,000 ft above 6,000 ft (per 300m above 2,600m)

Temperature

-4 to 149°F (-20 to +65°C)

Relative humidity

5 to 95%

Altitude

15,000 ft (4,600m)
