Product Details
S5720-28TP-PWR-LI-AC
AED515.00

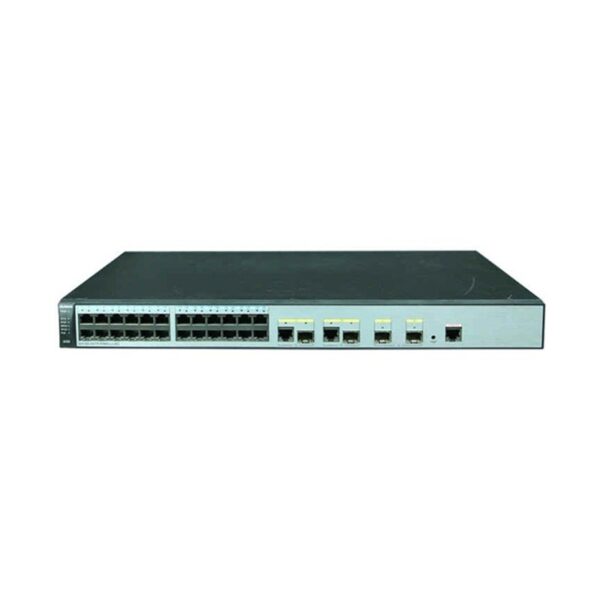

| Model: | S5720-28TP-PWR-LI-AC – Huawei S5700 Series Switches |
| Detail: | S5720-28TP-PWR-LI-AC(24 Ethernet 10/100/1000 ports,2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP,PoE+,370W POE AC 110/220V) |
Description
S5720-28TP-PWR-LI-AC Specification |
|
|
Memory (RAM) |
512 MB |
|
Flash |
240 MB |
|
Mean time between failures (MTBF) |
40 years |
|
Mean time to repair (MTTR) |
2 hours |
|
Availability |
> 0.99999 |
|
Service port surge protection |
Common mode: ±7 kV |
|
Power supply surge protection |
±6 kV in differential mode, ±6 kV in common mode |
|
Dimensions (W x D x H) |
442.0 mm x 310.0 mm x 43.6 mm (17.4 in. x 12.2 in. x 1.72 in.) |
|
Weight (including packaging materials) |
3.6 kg (7.94 lb) |
|
Stack ports |
Twenty-four 10/100/1000BASE-T ports and two 1000BASE-X ports |
|
RTC |
Not supported |
|
RPS |
Not supported |
|
PoE |
Supported |
|
Rated voltage range |
100 V AC to 240 V AC, 50/60 Hz |
|
Maximum voltage range |
90 V AC to 264 V AC, 47 Hz to 63 Hz |
|
Maximum power consumption (100% throughput, full speed of fans) |
|
|
Typical power consumption (30% of traffic load)
|
27.4 W |
|
Storage temperature |
-40°C to +70°C (-40°F to +158°F) |
|
Noise under normal temperature (27°C, sound power) |
less than 48.6 dBA |
|
Relative humidity |
5% to 95%, noncondensing |
|
Operating altitude |
0-5000 m (0-16404 ft.) |
