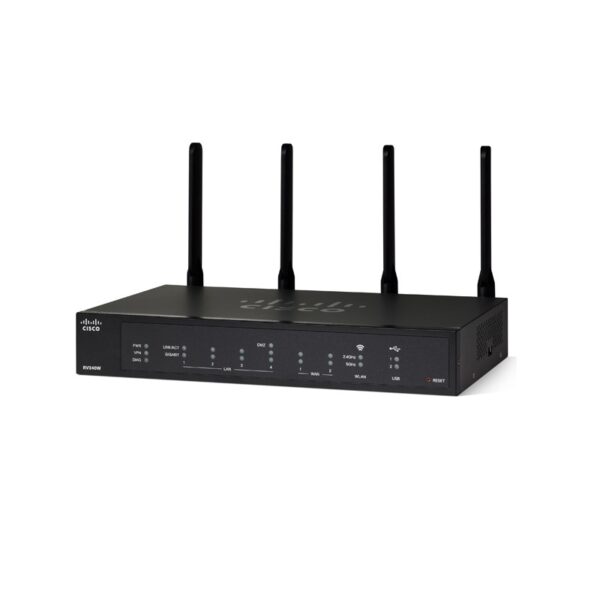

RV340W-E-K9-AU

RV340W-E-K9-AU Specification

WAN ports

2 RJ-45 Gigabit Ethernet

LAN ports

4 RJ-45 Gigabit Ethernet

(LAN 1, 2, 3, 4 and LAN 9, 10, 11, 12 are PoE 802.3at, max 30W per port up to 120W total)

Console/serial

1 RJ-45 port for future use. Port is disabled

USB

2 for external 3G/4G modem or flash drive (USB-3, USB-2)

Firewall

Stateful packet inspection, up to 980 Mbps throughput for TCP and UDP

Quality of Service (QoS)

Traffic Classes, WAN Queuing, WAN Policing, WAN Bandwidth Management, Assign detailed QoS (Class of Service (CoS)/Differentiated Services Code Point (DSCP)/policies) settings per application or end device

Web Security

Dynamic web filtering: Cloud based, more than 80 categories, more than 450 million domains classified

Application Visibility

Application identification: Assign policies to Internet applications

500 unique Apps

Client Identification

Identifies and categorizes clients dynamically. Assigns policies based on end device category and operating system.

Intrusion Prevention System

IDS/IPS inspects network packets, logs and/or blocks a wide range of network attacks. It delivers increased network availability, faster remediation, and comprehensive threat protection.

HTTP/FTP/SMTP/POP3/IMAP

Antivirus

Protection from viruses, trojans, spyware, and identity theft by inspecting traffic going through the router.

HTTP/FTP/SMTP/POP3/IMAP

Cisco Umbrella

First line of defense for threats on the Internet. Prevention for user and malware-initiated connections. Protection against Malware, C2 callbacks, and phishing. Proxy inspection for risky domains.

IPSec

IKEv1 and IKEv2

50 simultaneous connections (any combination of remote access and site-to-site), up to 650 Mbps throughput

IPsec remote access

Yes (remote access from any standards-based IPsec client and Cisco IPsec VPN EasyVPN)

Layer 2 Tunneling Protocol (L2TP) over IPsec

Yes

Generic Routing Encapsulation (GRE) over IPsec

Yes

Cisco SSL VPN (Cisco AnyConnect)

Maximum 50 SSL VPN tunnels and up to 33Mbps throughput. Also requires Cisco AnyConnect end user licenses to use on the end device. Ideal for mobile devices.

Point-to-Point Tunneling Protocol (PPTP)

25 connections, up to 100 Mbps throughput

Teleworker mode (Cisco IPsec VPN)

Router acts as a client to connect to central VPN gateway in teleworker mode

VPN pass-through

IPSec, PPTP, L2TP

Management protocols

Web browser (HTTP/HTTPS)

Simple Network Management Protocol (SNMP) v1, v2c, and v3

Representational State Transfer (REST) API

NETCONF

Management Platform

FindIT Network Manager

Firmware upgrade options

Via local PC, USB stick, or from Cisco.com via web browser.

Unattended automatic firmware upgrade.

LAN

VLAN

Up to 32 VLANs

Port Security

Yes, 802.1X

Link aggregation

Yes (static, no LACP)

IPv6

Dual stack, 6rd, 6in4, Dual stack lite

WAN

DHCP client, static IP, PPPoE, PPPTP, L2TP, transparent bridge

Routing

Static routing, IGMP proxy, Inter-VLAN routing, Routing Information Protocol RIPv1,v2, RIPng

Network Address Translation (NAT)

Port Forwarding

Port Address Translation (PAT)

One-to-one NAT

VPN NAT traversal

Session Initiation Protocol (SIP) Application-Level Gateway (ALG), FTP ALG

NAT max sessions

>40000

NAT max connections per second

3000

DynDNS

ChangeIP.com, DynDNS.com, No-IP.com, dnsomatic

IPv6 transition

Dual Stack

Hardware DMZ

Yes (when enabled, one LAN port will be DMZ port)

DMZ host

Yes

System

CPU

ARM-based architecture, dual core, hardware flow engine

1.2 Ghz

RAM

1 GB DDR3

Flash

256 MB

Wireless

Standards

IEEE 802.11ac, 802.11n, 802.11g, 802.11b, 802.11a, 802.1X (security authentication), 802.1Q (VLAN), 802.11i (WPA2 security), 802.11e (wireless QoS)

Antennas

4 external fixed paddle antennas (RV340W)

802.1X supplicant

Yes

SSID-to-VLAN mapping

Yes

Auto channel selection

Yes

WPA/WPA2

Yes, including enterprise authentication

Access control

Yes, MAC filtering

Rouge access point detection

No

QoS

Wi-Fi Multimedia (WMM) with unscheduled automatic power save

Performance

Wireless throughput

PHY data rate:

2.4 GHz: 450 Mbps 964-QAM), 600 Mbps (256-QAM)

5 GHz: 1.7 Gbps (256-QAM), 2.1 Gbps (1024-QAM)

Total: Up to 2.7 Gbps

(real-world throughput will vary)

Recommended user support

Up to 50 users at 2.4 GHz and 124 users at 5 GHz simultaneously

Captive Portal for guest access

Yes

Wireless parameters

Frequency

Dual concurrent radios (2.4 and 5 GHz)

WLAN

802.11n/ac

4×4 MU-MIMO with 4 partial streams at 5GHz

3×3 MIMO with 3 spatial streams at 2.4 GHz

20 MHz, 40 MHz and 80 MHZ channels for 802.11ac

20 MHz and 40 MHz channels for 802.11n

PHY data rate:

2.4 GHz: 450 Mbps (64-QAM), 600 Mbps (256-QAM)

5 GHz: 1.7 Gbps (256-QAM), 2.1 Gbps (1024-QAM)

Total: up to 2.7 Gbps

802.11 Dynamic Frequency Selection (DFS)

MU-MIMO up to 3 clients simultaneously

Data rates supported

802.11 a/b/g:

• 54, 48, 36, 24, 18, 12, 9, 6, 11, 5.5, 2, and 1 Mbps

• 802.11n: 6.5 to 450 Mbps

– 20-MHz bandwidth: MCS 0-15 for supported data rates

– 40-MHz bandwidth: MCS 0-15 for supported data rates

802.11ac:

• 6.5 Mbps to 1.7 Gbps

– 20-MHz bandwidth: MCS 0-9 for supported data rates

– 40-MHz bandwidth: MCS 0-9 for supported data rates

– 80-MHz bandwidth: MCS 0-9 for supported data rates

Frequency band and operating channels

E (E regulatory domain):

2412 to ~2472 MHz: 13 channels

5.15 to 5.25 GHz: 4 channels

5.25 to 5.35 GHz: 4 channels

5.47 to 5.725 GHz: 8 channels

Transmitter output power

2.4 GHz

• 802.11b: 17.5 +/- 2 dBm

• 802.11g: 17.5 +/- 2 dBm @ 6 Mbps

• 802.11g: 15.5 +/- 2 dBm @ 54 Mbps

• 802.11n (HT20): 17.5 +/- 2 dBm @ MCS0

• 802.11n (HT20): 15.5 +/- 2 dBm @ MCS7

• 802.11n (HT40): 15.5 +/- 2 dBm @ MCS7

5 GHz

• 802.11a: 18.5 +/- 2 dBm @ 6 Mbps

• 802.11a: 14 +/- 2 dBm @ 54 Mbps

• 802.11n (HT20): 14 +/- 2 dBm @ MCS7

• 802.11n (HT40): 14 +/- 2 dBm @ MCS7

• 802.11ac (VHT80): 12.0 +/- 2 dBm @ VHT9SS

Wireless isolation

Wireless isolation between clients

Antenna gain in dBi

2.4 GHz: 3 dBi each antenna

5 GHz: 5 dBi each antenna

Receiver sensitivity

2.4 GHz

• 802.11b: -82 dBm @ 11 Mbps

• 802.11g: -71 dBm @ 54 Mbps

• 802.11n (HT20): -69 dBm @ MCS7

• 802.11n (HT40): -67 dBm @ MCS7

5 GHz

• 802.11ac (VHT20): -59 dBm @ MCS8

• 802.11ac (VHT40): -54 dBm @ MCS9

• 802.11ac (VHT80): -51 dBm @ MCS9

Wireless Distribution System (WDS)

No

Product Dimensions

RV340W excluding antennas

280 x 44 x 170 mm (11 x 1.75 x 6.75 in)

RV340W with antennas

280 x 44 x 315 mm (11 x 1.75 x 12.40 in)

MTBF

50000 hours

Rack mountable

No

Included accessories

Power supply, power cord, Ethernet cable

Fan

No

Included accessories

Power supply, power cord, ethernet cable

Power Supply

AC 100-240V/1A DC 12V/3A

Certification

FCC Class B, CE Class B, UL, cUL, CB, CCC, BSMI, KC, Anatel

Operating temperature

0° to 40 °C (32° to 104 °F)

Storage temperature

0° to 70 °C (32° to 158 °F)

Operating humidity

10% to 85% noncondensing

Storage humidity

5% to 90% noncondensing
