Product Details

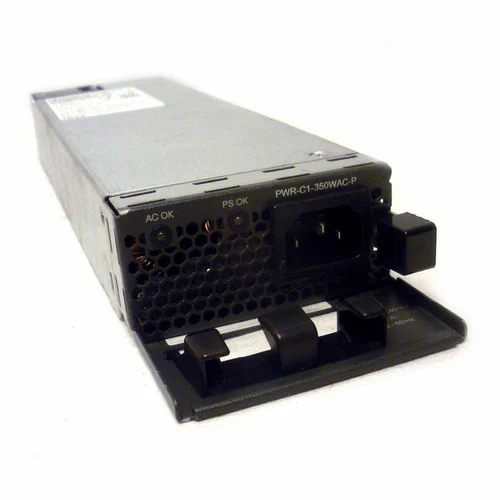

PWR-C1-350WAC
Original price was: $675.00.$139.00Current price is: $139.00.
| Model: | Cisco Power Supply for Cisco 3850 Series Switches |
| Detail: | Cisco 3850 Series Power Supply PWR-C1-350WAC 350W AC Config 1 Power Supply |
Description
PWR-C1-350WAC Specification |
|
|
Power supply rated maximum |
350W |
|
Total output BTU (Note: 1000 BTU/hr = 293W) |
1207BTU/hr, 350W |
|
Input-voltage range and frequency |
100-240VAC, 50-60 Hz |
|
Input current |
4-2A |
|
Output ratings |
-56V at 6.25A |
|
Output holdup time |
16.7 ms minimum at 100VAC |
|
Power-supply input receptacles |
IEC 320-C16 (IEC60320-C16) |
|
Power cord rating |
10A |
|
Physical specifications |
(H x W x D): 1.58 X 3.25 X 12.20 in Weight: 2.6 lb |
|
Operating temperature |
23 to 113°F (-5 to 45°C) |
|
Storage temperature |
-40 to 158°F (-40 to 70°C) |
|
Relative humidity operating and nonoperating noncondensing |
5 to 90% noncondensing |
|
Altitude |
10,000 ft. (3000 meters), up to 45°C |
|
MTBF |
Calculated MTBF must be greater than 300,000 using Telcordia SR-332, Method 1, Case 3. Demonstrated MTBF is 500,000 hr (with 90% confidence level). |
|
EMI and EMC compliance |
FCC Part 15 (CFR 47) Class A ICES-003 Class A EN 55022 Class A CISPR 22 Class A AS/NZS 3548 Class A BSMI Class A (AC input models only) VCCI Class A EN 55024, EN300386, EN 50082-1, EN 61000-3-2, EN 61000-3-3 EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN 61000-6-1 |
|
Safety compliance |
UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, CCC, CE Marking |
|
LED indicators |
“AC OK”: Input power to the power supply is OK “PS OK”: Output power from the power supply is OK |
