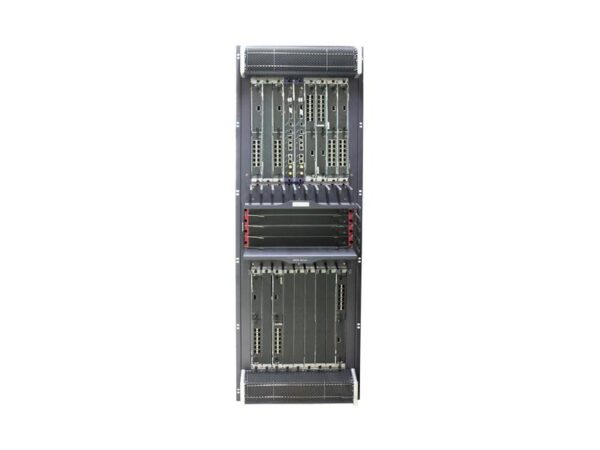

ME0P16BASA30

ME0P16BASA30 Specifications

Switching Capacity

25.2 Tbit/s

Slots

22 slots, including 2 MPUs (1:1 backup), 4 SFUs (3+1 backup), and 16 LPUs

Dimensions (W x D x H)

442 mm x 650 mm x 1,420 mm (32U)

Maximum Power Consumption

4,610W (120G)

Full Configuration Weight

279 kg (240G)

Interface Types

OC-192c/STM-64c POS

OC-48c/STM-16c POS

OC-3c/STM-1c POS

OC-12c/STM-4c ATM

OC-3c/STM-1c ATM

100GE-WAN/LAN

10GE-WAN/LAN

GE/FE

E3/CT3

CE1/CT1

BRAS

User access protocol: PPPoE, PPPoEoA, IPoE, IPoEoA, and PPPoA 802.1X
User authentication protocol: PAP, CHAP, MSCHAP, RADIUS, and HWTACACS
User accounting protocol: RADIUS, HWTACACS, and COPS
User authorization protocol: RADIUS, HWTACACS, and COPS
Policy protocol: COPS and COA

L2TP

Session number: up to 64K/per slot, up to 128K/per chassis

Tunnel number: up to 16K/per slot, up to 12K/per chassis

IPv4

Static routing protocol and dynamic routing protocols such as RIP, OSFP, IS-IS, and BGP-4

IPv6

Various technologies for transition from IPv4 to IPv6:

Manual tunnel configuration, automatic tunnel configurations, IPv6-to-IPv4(6-to-4)

Tunneling, Generic Routing Encapsulation (GRE) tunneling, and Intra-Site Automatic Tunnel Addressing Protocol (ISATAP) tunneling

IPv4 over IPv6 tunneling and IPv6 provider Edge Router (6PE).

IPv6 static routing protocol

IPv6 dynamic routing protocols such as RIP Next Generation (RIPng), OSPFv3, IS-ISv6, and BGP4+.

IPv6 neighbor discovery and psth Maximum Transmission Unit (PMTU) discovery.

Transmission Control Protocol Version 6(TCP6), ping IPv6, traceroute IPv6,socket IPv6, static IPv6 Domain Name System(DNS), specifying the IPv6 DNS server, Trivial File Transfer Protocol(TFTP) IPv6 dient, and IPv6 policy-based routing

Internet Control Message Protocol Version 6(ICMPv6) Management Information Base (MIB),User Datagram Protocol Version 6(UDP6) MIB,ICP6 MIB, AND IPv6 MIB

MPLS

LDP over TE, VPLS, H-VPLS, policy-based routing inVPN.

MPLS L2VPNs in either Martini or Kompella mode.

VLL/VPLS access L3VPNs.

QinQ, MPLS/BGP L3VPN, and inter-AS VPN Option A/B/C.

Asynchronous Transfer Mode(ATM)E1, Inverse Multiplexing over ATM(IMA), and Time-Division Multiplexing(TDM)PWE3.

MPLS-TP.

Layer 2 feature

IEEE802.1q, IEEE802.1p, IEEE802.3ad, and IEEE802.1ab.

Spanning Tree Protocol(STP), Rapid Spanning Tree Protocol (RSTP),Multiple Spanning Tree Protocol (MSTP), RPPP, DHCP⁺

, VLAN switching, and user binding.

QoS

Weighted Random Early Detection (WRED), DS-TE capability with a maximum of eight CTs, five-level H-QoS scheduling, VLL/PWE3 QoS, and MPLS H-QoS.
The last mile QoS.
Multicast replication of IPoE access users

CGN

NAT444,NAT64

Distributed deployment or integrated deployment

Re-allocation or dynamic allocation of ports

VPN NAT

NAT ALG(TFP/ICMP/PPTP/RTSP/SIP)

Port forwarding

NAT server

Web user’s anthentication

DS-Lite

L2-Aware NAT

DAA

ME60s support Destination Address Accounting (DAA), providing refined subscriber management with differentiated service and accounting in IP networks.
