Juniper EX4600‑40F 40‑Port Fiber‑Optimized Multispeed Ethernet Switch
The Juniper EX4600‑40F is a high‑density fiber access switch offering 40 SFP28 and 8 QSFP28 ports with 6.4 Tbps switching, advanced Layer 2/Layer 3 features, cloud‑managed insights, and scalable fabric support.
- Description
Description
The Juniper EX4600‑40F is a high‑performance, fixed configuration enterprise fiber access and aggregation switch built for modern campus, branch, and data center environments that demand high‑speed fiber connectivity and advanced networking features. Running Juniper’s Junos OS, the EX4600‑40F supports robust Layer 2 and Layer 3 services, including EVPN‑VXLAN, BGP/OSPF routing, QoS, ACLs, and deep telemetry — all tightly integrated with Juniper Mist AI (Wired Assurance) for automated insights, proactive troubleshooting, and cloud‑driven management.
This model provides 40× fixed SFP28 fiber ports capable of 1 GbE, 10 GbE, and 25 GbE operation with compatible optics, offering flexible high‑speed access or uplinks without relying on traditional copper interfaces. For uplinks and fabric interconnects, the switch includes 8× QSFP28 ports that can be configured as 40 GbE or 100 GbE or broken out into multiple 25 GbE connections for scalable network design. With up to 6.4 Tbps bidirectional switching capacity and low latencies, the EX4600‑40F handles demanding east‑west and north‑south traffic patterns in campus fabrics and data center leaf layers.

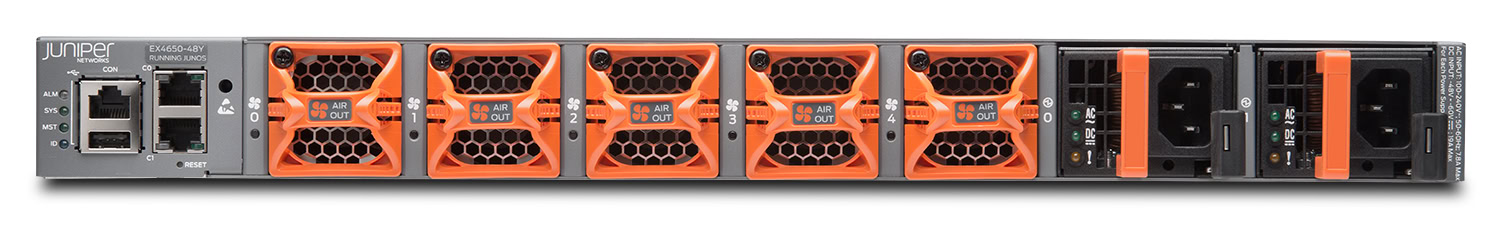

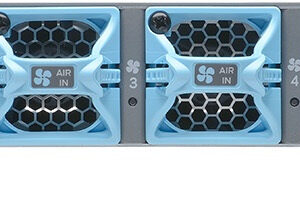

The EX4600‑40F supports Virtual Chassis and Virtual Chassis Fabric (VCF) technology, enabling multiple units (up to 10) to be managed and operated as a single logical chassis for simplified scaling and resilience. MACsec AES‑256 encryption provides secure link‑layer protection, ensuring secure connectivity over fiber segments. Optional hot‑swappable power supplies and fan trays with front‑to‑back (or configurable) airflow make the switch suitable for rack environments with strict cooling requirements.
Key Features:
• 40× SFP28 fiber ports supporting 1/10/25 GbE speeds with appropriate optics
• 8× QSFP28 ports configurable as 40 GbE/100 GbE or broken out to 25 GbE
• Up to 6.4 Tbps bidirectional switching capacity with low latency
• Junos OS with advanced Layer 2/Layer 3 services and fabric features
• AI‑Driven Juniper Mist Wired Assurance for cloud insights and automation
• Virtual Chassis / Virtual Chassis Fabric (VCF) support for scaling
• MACsec AES‑256 link‑layer encryption for secure fiber traffic
• Redundant hot‑swappable PSUs and fans with configurable airflow options
