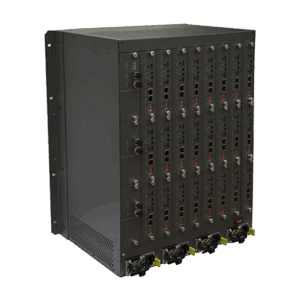

HWT-DEC848 - Image 1
HWT-DEC832
VideoWall P65U

HWT-DEC848

Network Matrix System With up to 48ch HDMI output & optional HDMI /BNC input

  • Adopting H.264 encoding standard
  • Support decoding of network sources such as network cameras/NVR
  • Every HDMI output port has 64 channel video decoding channels, supporting 8-ch 1080p or 16-ch 720p video decoding on the wall simultaneously
  • Support decoding streams of multiple resolution no more than 8K(7680*4320)
  • H.264, H.265, video compression decoding
  • G.711, G.726, AAC, PCM audio compression decoding
Categories: ,
Enquiry Now

Description

Technical Spec

HDMI input one card for 4ch HDMI input, 1920*1080@60; one card for 1ch HDMI input 3840*2160 @30hz
BNC input one card for 8ch BNC input, support TVI, CVI,AHD and CVBS, Pleco D,P and Coaxitron protocol included
HDMI output Maximum 48ch HDMI 2.0, 2ch HDMI per card, each HDMI supports 3840*2160 @30hz
Ethernet 24, 100M/1000M adaptive RJ45 port
Audio input 1ch per HDMI output card,Ф3.5 earphone socket
Audio output 1ch per hdmi output card ,Ф3.5 earphone socket
alarm access Support network alarm access
USB2.0 2 per card
RS232/422 1 per card
Network video decoding H.264
Channel 4 or 1
Performance 1ch 4K 30；4ch 1080p 60
H.265,H.264 3840×2160@30Hz,1920×1080P@60Hz,1024×768P@60Hz,1280×720P@60Hz,1366×768P@60Hz
Video input interface 1ch HDMI；4ch HDMI；8ch BNC
Maximum input resolution 1ch HDMI @ 4K 30；4ch HDMI @ 1080p 60；8ch BNC @ 1080p 60
Input interface quantity every HDMI output card offers 1ch audio in
Input interface type 3.5mm socket
Format G.711,G.726,ADPCM
Output type HDMI 2.0
Output quantity 48ch maximum by one chassis
Max. output resolution 4K
Output resolution 3840×2160@30Hz, 1920×1080P@60Hz, 1024×768P@60Hz, 1280×720P@60Hz,1366×768P@60Hz
Format H265,264
Decoding resolution up to 8K
Video Decoding Channel every HDMI output can decode 48 channel video
Decoding delay 150ms
Decoding performance Each HDMI output supports 2ch 4K or 8ch 1080P or 16ch 720P or 32ch D1
Format G.711,G.726,ADPCM
Output quantity every HDMI output card offers 1ch audio output
Output interface 3.5mm socket
Monitor splicing Up to 48 monitor splicing or any windows splice
Monitor splitting and display Support 4/9/16/25/32/48/64 split or user definition split
Power supply unit AC 100-230 , 360W
