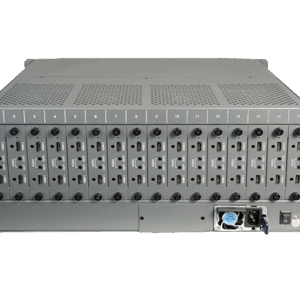

HWT-DEC832 - Image 1
HWT-DEC816
HWT-DEC848

HWT-DEC832

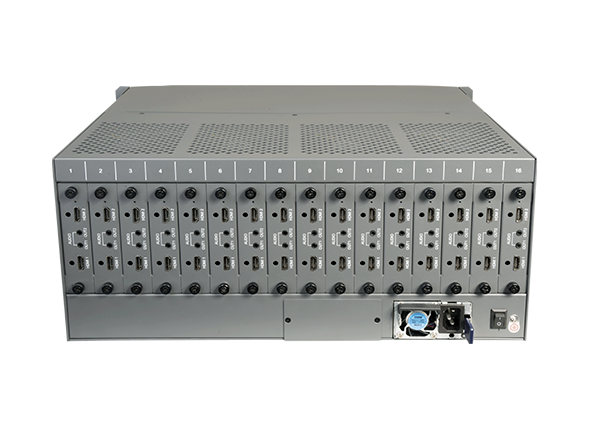

Network Matrix with 32 HDMI output

  • Support network mediainput
  • Support multipleresolution of output, it can manually set output resolution
  • Output supports maximum 3840×2160@60Hz
  • Support 4K, 1080P, 1080I, 720P, D1 video formats
  • H265/H264 compatible
  • Support 8ch 4K or 64ch 1080P or 128ch 720P decodingand display
  • Support video-splitting output, up to 64 windows split onone monitor
Categories: ,
Enquiry Now

Description

Technical Spec

input opitional to have input card
Output 32ch HDMI output
Ethernet 100M/1000M self adaptive
Audio input 16ch，by Ф3.5 audio interface
Audio output 16ch，by Ф3.5 audio interface
Alarm output support network alarm input
USB2.0 support
RS232/422/485 support
Network video decoding H.265,H.264
Network video input 4K, 1080P,1080I,720P,D1
HDMI ouput resolution 1024×768P@60hz,1280×720P@60hz,1366×768P@60hz, 1920×1080P@60hz,3840×2160@60hz
Video decode and display 2ch 4K or 16ch 1080P or 32ch 720P or 64ch D1 per card (16 cards included by default)
Monitor splicing 32 monitor to splice and display one video
Split maximum 64 split,1/4/6/8/9/10/16/25/36/64 splitting mode and display，or split by user-define.
OSD Window, Channel,label, alarm, etc. information
Audio Codec G.711,G.726,ADPCM encode/decode
On/Mute Supports all channels and single channel set individually
Audio input 16ch audio encode, it can open/close audio input.
Power supply AC100 to 230V
