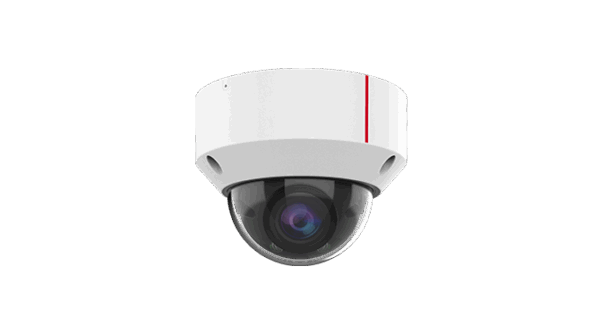

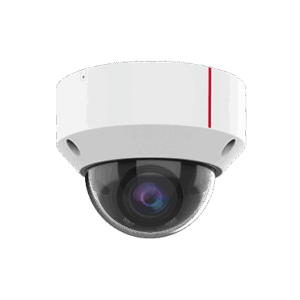

HWT-D3220-10-SIU

1 TOPS computing power
Supports multi-algorithm switchover, behavior analysis, crowd flow analysis, target detection, person detection, object (motor vehicle, non-motorized vehicle, and pedestrian) classification, vehicle recognition, vehicle event detection, and traffic flow statistics
Supports backlight adaptation, overcast adaptation, and speed adaptation
1/2.7″ CMOS sensor
Online loading and upgrade of algorithms
120 dB super wide dynamic range (WDR), ensuring that both foreground and background objects are clearly identified in environments with sharp light contrast

Categories: AI Camera, HOLOWITS

Description

Image sensor	1/2.7″ CMOS/2MP 1920(H)*1080(V)
Min illumination	Color: 0.002 lux (F1.6, AGC ON); B/W: 0.001 lux (F1.6, AGC ON) or 0 lux (infrared illuminator enabled)
Day/Night mode	Supported; automatic (ICR)/Color/B/W (default: automatic) Sensitivity level: high (default), medium, and low Image triggering/Internal triggering
White balance	Auto/Manual/OnePush
Digital noise reduction	2D/3D noise reduction
WDR	120 dB
HLC/BLC	Supported/Supported
EIS	Supported Sensitivity levels are not supported.
Optical Defogging/Algorithm-assisted Defogging	Supported/Not Supported
Signal-to-Noise Ratio(SNR)	> 45 dB
Power type	12 V DC and PoE (IEEE 802.3af)
Power consumption	Maximum: 10 W; typical: 3.5 W
Operating temperature	–30°C to +60°C
Operating humidity	5% to 95% (non-condensing)
Surge protection	4 kV
IP rating	IP67
Equipment Anti Corrosion	Class C corrosion resistance
IK rating	IK10
Weight	Net weight 0.8 kg; Gross weight 1kg
Dimensions	Device dimensions φ127mm x 97mm; Package dimensions 112mm x 147mm x 147mm
