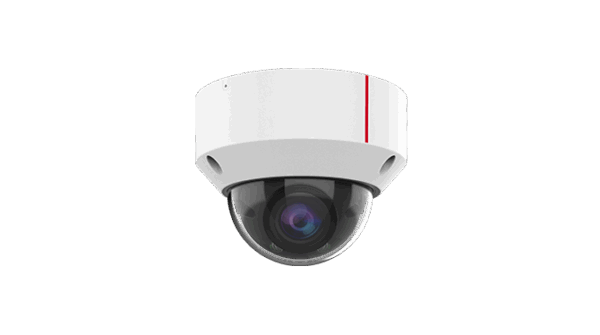

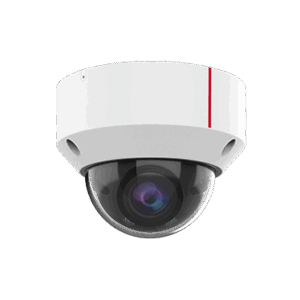

HWT-D3220-10-I-P(2.8mm)

1 TOPS computing power
Supports behavior analysis, crowd flow analysis, target detection, and person detection
1/2.7″ CMOS sensor
120 dB super wide dynamic range (WDR), ensuring that both foreground and background objects are clearly identified in environments with sharp light contrast

Categories: AI Camera, HOLOWITS

Description

Image sensor	1/2.7″ CMOS/2MP 1920(H)*1080(V)
Min illumination	Color: 0.002 lux (F1.6, AGC ON); B/W: 0.001 lux (F1.6, AGC ON) or 0 lux (infrared illuminator enabled)
Day/Night mode	Supported; automatic (ICR)/Color/B/W (default: automatic) Sensitivity level: high (default), medium, and low Image triggering/Internal triggering
White balance	Auto/Manual/OnePush
Digital noise reduction	2D/3D noise reduction
WDR	120 dB
HLC/BLC	Supported/Supported
EIS	Not supported; Sensitivity levels are not supported.
Optical Defogging/Algorithm-assisted Defogging	Not Supported/Supported
Signal-to-Noise Ratio(SNR)	> 45 dB
Power type	12 V DC and PoE (IEEE 802.3af)
Power consumption	Maximum: 6 W; typical: 3.3 W
Operating temperature	–30°C to +60°C
Operating humidity	5% to 95% (non-condensing)
Surge protection	4 kV
IP rating	IP67
Equipment Anti Corrosion	Class C corrosion resistance
IK rating	IK10
Weight	Net weight 0.8 kg; Gross weight 1kg
Dimensions	Device dimensions φ127 mm x 97 mm; Package dimensions 112 mm x 147 mm x 147 mm
