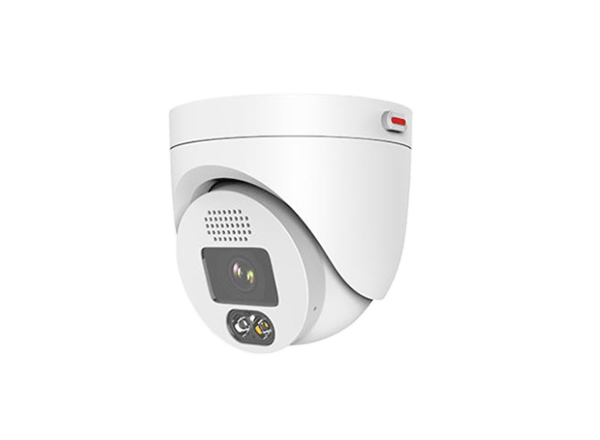

HWT-D3040-10-ELI-PV (2.8 mm)

1 TOPS computing power
Support behavior analysis, which includes deep learning-based perimeter detection algorithm, effectively counteracting interference caused by lighting and shadows and classifying persons, motor vehicles, and non-motorized vehicles
Supports backlight adaptation 1/2.7″ CMOS sensor
120 dB super wide dynamic range (WDR), ensuring that both foreground and background objects are clearly identified in environments with sharp light contrast
Supports IR/white-light compensation and voice intercom
Supports detection of Power over Ethernet (PoE)

Categories: AI Camera, HOLOWITS

Description

Image sensor	1/2.7″ CMOS/4-megapixel: 2688 (H) x1520 (V)
Min illumination	Color: 0.005 lux (F1.2, AGC ON, 1/30s shutter speed); B/W: 0.0025 lux (F1.2, AGC ON, 1/30s shutter speed) or 0 lux (infrared illuminator enabled)
Day/Night mode	Supported; automatic (ICR), color, B/W, and scheduled (default: automatic) Sensitivity level: high (default), medium, and low Image triggering/Internal triggering
White balance	Auto/Manual/OnePush
Digital noise reduction	2D/3D noise reduction
WDR	120 dB
HLC/BLC	Supported/Supported
EIS	The function is not supported. Sensitivity levels are not supported.
Signal-to-Noise Ratio(SNR)	> 45 dB
Power type	12 V DC and PoE (IEEE 802.3af)
Power consumption	Maximum: 12.2 W; typical: 8.2 W
Operating temperature	–30°C to +60°C
Operating humidity	5% to 95% (non-condensing)
Surge protection	2 kV
IP rating	IP67
Equipment Anti Corrosion	Class C corrosion resistance
Weight	Net weight 0.387 kg; Gross weight 0.098 kg
Dimensions	Device dimensions 97 mm x 103 mm x 103 mm; Package dimensions 115 mm x 125 mm x 113 mm
