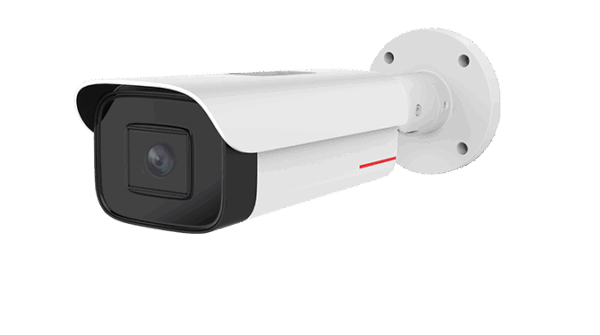

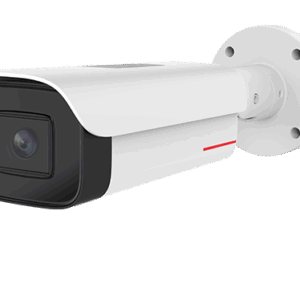

HWT-D2152-10-SIU

1 TOPS computing power
Supports multi-algorithm switchover, behavior analysis, crowd flow analysis, target and person detection, object (motor vehicle, non-motorized vehicle, and pedestrian) classification, vehicle recognition, vehicle event detection, and traffic flow statistics
Supports backlight adaptation and overcast adaptation 1/2.7″ CMOS sensor
Online loading and upgrade of algorithms
120 dB super wide dynamic range (WDR), ensuring that both foreground and background objects are clearly identified in environments with sharp light contrast
Supports switchover among multiple algorithms

Categories: AI Camera, HOLOWITS

Description

Image sensor	1/2.7″ CMOS sensor/5MP 2880(H)*1620(V)
Max Aperture	F1.3(W)-F2.2(T)
Min illumination	Color: 0.005 lux (F1.6, AGC ON); B/W: 0.0025 lux (F1.6, AGC ON) or 0 lux (infrared illuminator enabled)
Day/Night mode	Supported; automatic (ICR), color, B/W, and scheduled (default: automatic) Sensitivity level: high (default), medium, and low Image triggering/Internal triggering
White balance	Auto/Manual/OnePush
Digital noise reduction	2D/3D noise reduction
WDR	120db
Optical Defogging/Algorithm-assisted Defogging	Not Supported/Supported
Exposure compensation	Supported
Exposure mode	Supported
Signal-to-Noise Ratio(SNR)	>45dB
Power type	DC12V,PoE(IEEE 802.3af)
Power consumption	Maximum:12.2W,typical:3.2W
Operating temperature	-30℃ to 60℃
Operating humidity	5% to 95%(non-condensing)
Surge protection	4kV
IP rating	IP67
Equipment Anti Corrosion	Class C corrosion resistance
Weight	Net weight 1.0kg; Gross weight 1.2kg
Dimensions	Device dimensions 88mm×107mm×206mm; Package dimensions 115mm×140mm×297mm
