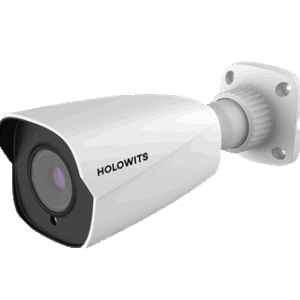

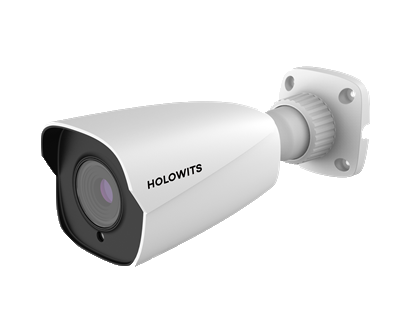

HWT-A2150-I

Specifications	Product Details
Resolution	5MP@20fps / 4MP@30fps, high resolution
Video Output	AHD / TVI / CVI / CVBS standard and lossless video output
Max Resolution	Up to 1500 TVL resolution
Image Sensor	CMOS progressive scan, perfectly captures moving objects
OSD Menu	Supports OSD menu
Low Illumination	Auto color to B/W at low illumination
ICR Switch	Supports ICR switch, true day/night, WDR
Noise Reduction	Supports noise reduction function
Night Vision	50m IR night view distance
Ingress Protection	IP67 ingress protection
COC	Supports COC (Compositing On Camera)

Category: Uncategorized

Description

Major Specifications – Camera
Image Sensor	1 / 2.7″ CMOS
Resolution	5MP
Image Size	2560 x 1936
Video Output	AHD / TVI / CVI / CVBS
Image System	PAL / NTSC
Electronic Shutter	Auto; 1 / 50s ~ 1 / 100000s (PAL); 1 / 60s ~ 1 / 100000s (NTSC)
IR Distance	50 m
Frame Rate	5MP @ 20fps
Min. Illumination	Color: 0.01 lux@F1.2, AGC ON; B/W: 0 lux with IR
Lens	2.8~12mm
Lens Mount	D14
S / N Ratio	≥52dB (AGC OFF)
Ingress Protection	IP67
Functions
Function Control	OSD (COC Control)
Day & Night	ICR
Digital WDR	Yes
Digital NR	2D/3D DNR
AGC	Yes
Auto White Balance	Yes
BLC	Yes
LSC	Yes
Defog	No
HLC	Yes
Sharpness	Yes
Mirror	Yes
Smart IR	Yes
Image Setting	Yes
Defect Correction	Yes
Language	English, Chinese, German, French, Italian, Spanish, Polish, Russian, Portuguese, Dutch, Turkish, Japanese
Angle Adjustment	Pan: 0°~360°; Tilt: 0°~90°; Rotation: 0°~360°
Others
Power Supply	DC12V (±10%)
Power Consumption	IR OFF: <1W; IR ON: <6W
Working Environment	-30°C ~ 50°C, 10% ~ 90% (relative humidity)
Dimensions (mm)	217.7 x 80.5 x 80.5
Weight (net)	Approx. 0.57KG
