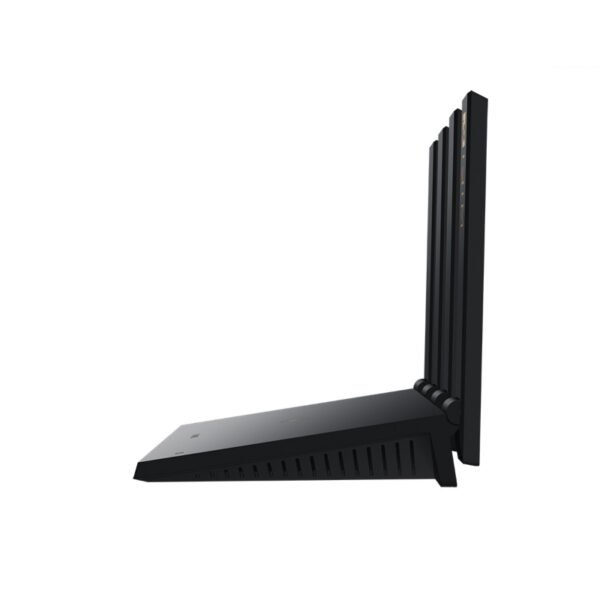

Huawei WiFi AX3 Pro (Quad-core) WiFi 6 Router

Huawei WiFi AX3 Pro (Quad-core) WiFi 6 Router Specification

Processors

Gigahome Quad-core 1.4 GHz CPU

Button

– H button for one-key pairing and WPS compatible
– Independent Reset

Interface

– WAN: One 10 / 100 / 1000 Mbps Ethernet port
– LAN: Three 10 / 100 / 1000 Mbps Ethernet ports

-LED Indicator: 1 state indicator light

Security

TrustZone Security, Anti-brute force algorithms, WPA3, Firewall, DMZ, PAP / CHAP, DMZ / DoS attack protection

Wireless

– 802.11ax/ac/n/a 2 x 2 & 802.11ax/n/b/g 2 x 2, MU-MIMO
– Wireless speed is up to 2976 Mbps (2.4 GHz: 574 Mbps; 5 GHz: 2402 Mbps)

Software Functions

– APP: HUAWEI AI Life App
– Huawei Share (Tap to Connect), Huawei HiLink & 802.11v protocol, IPv4 / IPv6, PPPoE / DHCP / static IP address / Bridge WAN connection methods, Wi-Fi timer, Guest Wi-Fi, Device speed limiting, MAC address filter, Parental control, VPN pass through, DMZ / virtual server

Power Supply

12 V DC, 2 A; Consumption < 24 W

Dimensions

225 mm x 159.2 mm x 39.7 mm
