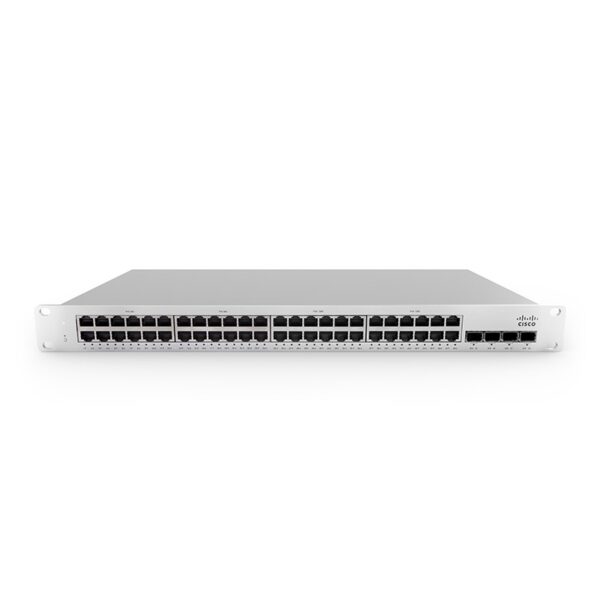

MS210-48FP-HW Specification |
Interfaces | • 48 x 10/100/1000BASE-T Ethernet RJ45 with auto negotiation and crossover detection (auto-MDIX crossover) • 4 x 1GbE SFP uplink • 2 x stacking ports • RJ45 Management port |
Forwarding rate | 77.38mpps |
Switching capacity | 176 Gbps |
Stacking Bandwidth | 80G (dual interface) |
Available PoE+ Power | No |
Idle / Full Load Power | 54 / 882 W |
Power Supply Configuration | Fixed internal |
Supported Power Supply | External RPS |
What’s included | Mounting screw kit |
Dimensions | 1.72” x 19.08” x 13.38” (4.38 x 48.46 x 34cm) |
Weight | 9.63 lb (4.37 kg) |
Management | • Managed via the Web with the Meraki cloud management platform • Integrated with Meraki Wireless and complete portfolio of IT products and solutions • Zero-touch remote provisioning (no staging needed) • Detailed historical per-port and per-client usage statistics • DHCP, client, and hostname fingerprinting • SNMPd and SYSLOG support for integration with other network management solutions • Automatic firmware upgrades with scheduling control |
Layer 3 | • Static routing • DHCP Relay |
Remote Diagnostics | • Email, SMS and Mobile push notification alerts • Cable testing and link failure detection with alerting • Live remote packet capture • Dynamic and interactive network discovery and topology • Combined event and configuration change logs with instant search |
Power | • Power input: 100 – 240 VAC, 47-63 Hz • Power consumption: 15 – 882W • RPS interface: Requires RPS-2300 chassis |
Stacking | • Physical stacking of up to 8 switches with 80 Gbps stack bandwidth on all models • Virtual Stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration • Stacking-compatible with the MS225 |
Ethernet Switching Capabilities | • 802.1p Quality of Service, 8 queues (w/ 6 configurable for DSCP-to-CoS mapping) • 802.1Q VLAN and trunking support for up to 4,094 VLANs • 802.1w, 802.1D Rapid Spanning Tree Protocol (RSTP, STP) • Broadcast storm control • 802.1ab Link Layer Discovery Protocol (LLDP) and Cisco Discovery Protocol (CDP) • 802.3ad Link aggregation with up to 8 ports per aggregate, Multichassis aggregates supported on stacked switches • Port mirroring • IGMP snooping for multicast filtering • MAC forwarding entries: 32K |
Environment | • Operating temperature: -5°C to 50°C • Humidity: 5 to 95% non-condensing |
Regulatory | • CSA-US (US, Canada) • FCC (USA) • IC (Canada) • CE (Europe) • RoHS • RCM (Australia/New Zealand) |
Mounting | • Rack-mountable with included rack mount hardware • Front-to-back airflow • Feature fanless operation |
Security | • Integrated two-factor authentication for Dashboard management • Role-based access control (RBAC) with granular device and configuration control • Corporate wide password policy enforcement • IEEE 802.1X RADIUS and MAB, hybrid authentication and RADIUS server testing • Multi-Domain/Multi-Host/Multi Authentication • Port security: Sticky MAC, MAC whitelisting • DHCP snooping, detection and blocking, Dynamic ARP Inspection • STP Enhancements: BPDU guard, Root guard, Loop guard • IPv4 and IPv6 ACLs |
MTBF Ratings | 320,555 |
