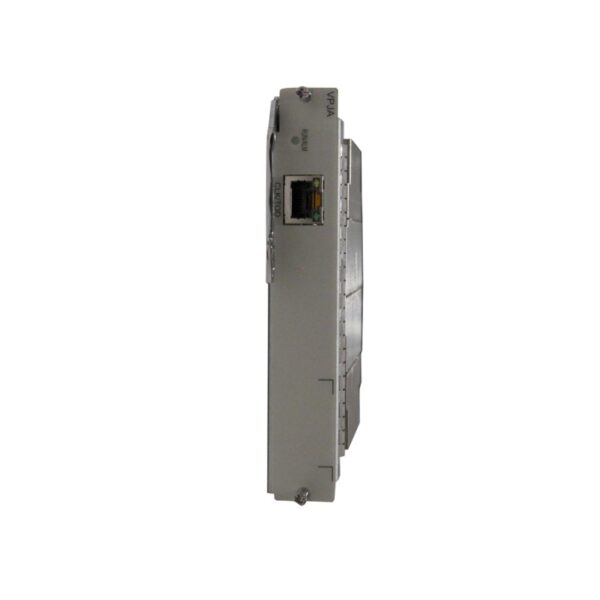

| Model: | H836VPJA – Huawei SmartAX MA5818 Services Boards |
| Detail: | Huawei SmartAX MA5818 centralized vectoring processing board, supports G.fast system-level vectoring for calculating the line crosstalk for the systems |
- Description
Description
H836VPJA Specification |
|
| Vectoring cancellation capability | G.fast cancellation |
| Operating temperature | -40°C to +65°C |
| Power-on and poweroff through the CLI | Supported |
| Power consumption | •Static: 48 W
•Typical: 67 W •Maximum: 94 W |
| NOTE:
•Static power consumption: None of the broadband ports are activated. •Typical power consumption: 50% of the broadband ports are activated at the same time. •Maximum power consumption: All the broadband ports are activated at the same time. |
|
