H80BVDPE
< tbody >

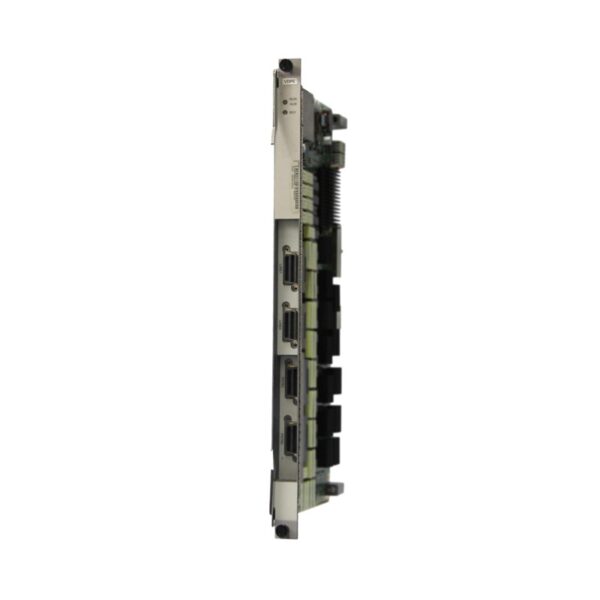

| Model: | H80BVDPE – Huawei SmartAX MA5600T Services Boards |
| Detail: | Huawei SmartAX MA5600T 64-port VDSL2 Service Board,with 600 ohm Real Impedance Splitter |
- Description
Description
H80BVDPE Specification |
|
| Connector | Delander 64-pin |
| Built-in splitter | 600 ohms |
| Bandwidth between VDSL and control boards | • 3.2Gbit/s (with SCUN/SCUK) • 1Gbit/s (with SCUB) |
| Maximum Frame Size | • PTM: 2000 • ATM: 1800 |
| Operating temperature | -40° C to +65° C |
| Power consumption | With 17a profiles: • Static: 24 W • Maximum: 79 W With 8b profiles: |
| Annex | • G.992.1 Annex A • G.992.3 Annex A/L/M • G.992.5 Annex A/M • G.993.2 Annex A/B |
| Profile | 8a/b/c/d, 12a/b, 17a |
| Vectoring | Not supported |
| Bonding | 2 pairs |
| SRA | Supported |
| RFI notch | Supported |
| UPBO | Supported |
| DPBO | Supported |
| G.INP | Supported |
| INM | Supported |
| Built-in MELT | Not supported |
| Built-in SELT | Supported |
| IPv6 | Supported |
| N:1 VMAC | Supported |
| 1:1 VMAC | Supported |
