Product Details

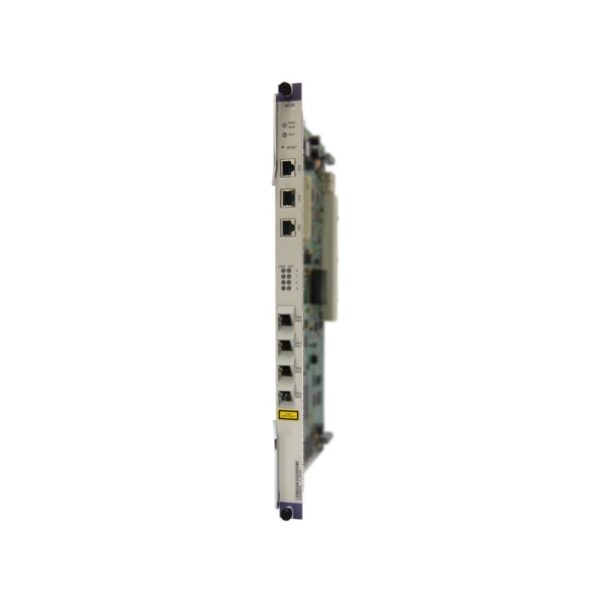

H801SCUB
| Model: | H801SCUB – Huawei SmartAX MA5600T Control Boards |
| Detail: | Huawei SmartAX MA5600T Super Control Unit Board |
Description
H801SCUB Specification |
|
|
Access Service |
Copper |
|
Daughter Board |
H801FLBA H801CKMC H801CKMD |
|
Load sharing |
No |
|
Ethernet synchronization |
No |
|
Temperature querying and high temperature alarming |
Yes |
|
Built-in 2GB CF card |
No |
|
Centric Management for GE Remote Extended Subracks |
No |
|
D-CCAP |
No |
|
Panel ports |
4 GE ports |
|
Internal interfaces |
|
|
Channel to the service board |
16 GE channels |
|
Channel to the GIU board |
– Providing four GE ports for upstream transmission using the control board or upstream board, which is controlled by the electronic switch. – Providing four GE ports for upstream transmission using the upstream board. Either the last GE port or VoIP daughter board can be used for upstream transmission, which is controlled by the electronic switch. |
|
Channel to the standby control board |
– |
