H35M8247HRO1

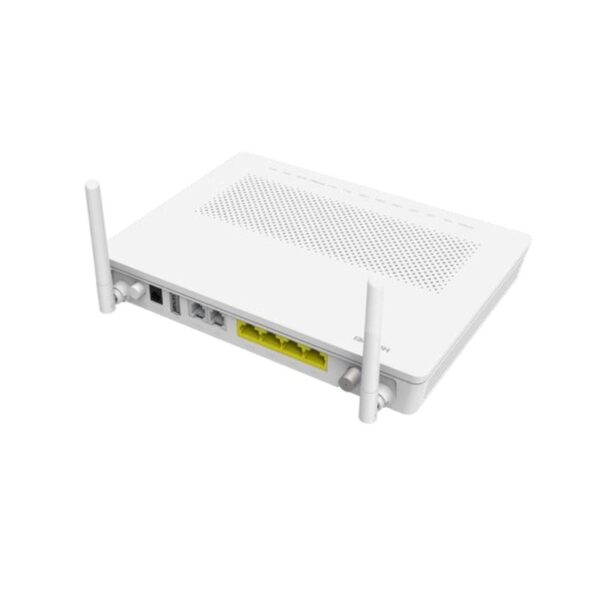

HG8247H Specification

Dimensions (H x W x D)

220 mm x 160 mm x 32 mm

(without an external antenna)

Weight

about 1000 g

Operating temperature

0°C to 40°C

Operating humidity

5% RH to 95% RH (non-condensing)

Power adapter input

100–240 V AC, 50–60 Hz

System power supply

11–13 V DC, 2 A

Static power consumption

7.5 W

Maximum power consumption

18 W

Ports

2POTS+4GE+CATV+Wi-Fi+USB

Indicators

POWER/PON/LOS/LAN/TEL/USB/WLAN/WPS/CATV

Interface Parameters

GPON Port

• Class B+

• Receiver sensitivity: -27 dBm

• Wavelengths: US 1310 nm, DS 1490 nm

• WBF

• Flexible mapping between GEM Port and TCONT

• GPON: consistent with the SN or password

authentication defined in G.984.3

• Bi-directional FEC

• SR-DBA

Ethernet Port

• Ethernet port-based VLAN tags and tag removal

• 1:1 VLAN, N:1 VLAN, or VLAN transparent

transmission

• QinQ VLAN

• Limit on the number of learned MAC addresses

• MAC address learning

CATV Port

• Bandwidth 54-870 MHz

• Output resistance 75 ohms

POTS Port

• Maximum REN: 4

• G.711A/μ, G.729a/b, and G.722 encoding/decoding

• T.30/T.38/G.711 fax mode

• DTMF

• Emergency calls (with the SIP protocol)

USB Port

• USB2.0

• FTP-based network storage

WLAN

• IEEE 802.11 b/g/n

• 2 x 2 MIMO

• Antenna gain: 2 dBi

• WMM

• Multiple SSIDs

• WPS

Product Function

Smart interconnection

• Smart Wi-Fi coverage (V300R015C10)

• SIP/H.248 auto-negotiation

• Any port any service

• Parental control (V300R015C10)

• L2/L3(IPv4) forwarding: 1G uplink, 2G downlink

Smart service

• Smart Wi-Fi sharing:

Portal/802.1x authentication (V300R015C10)

SoftGRE-based sharing (V300R015C10)

• Association of one account with two POTS ports

Smart O&M

• Variable-length OMCI messages

• Active/Passive rogue ONT detection and isolation

• Call emulation, and circuit test and loop-line test

• PPPoE/DHCP simulation testing

• WLAN emulation

Layer 3 Features

• PPPoE/Static IP/DHCP

• NAT/NAPT

• Port forwarding

• ALG, UPnP

• DDNS/DNS server/DNS client

• IPv6/IPv4 dual stack

• Static/Default routes

• Multiple services on one WAN port

Multicast

• IGMP v2/v3 proxy(V300R015C00) /snooping

• MLD v1/v2 snooping

• Multicast services through Wi-Fi

QoS

• Ethernet port rate

limitation

• 802.1p priority

• SP/WRR/SP+WRR

• Broadcast packet rate

limitation

Security

• SPI firewall

• Filtering based on

MAC/IP/URL addresses

Common O&M

• OMCI/Web UI/TR069

• Dual-system software

backup and rollback

Power Saving

• Dynamic power saving

• Indicator power saving

• Scheduled Wi-Fi shutdown

(V300R015C00)
