Product Details
FG-80E
AED888.00
| Model: | FG-80E – Fortinet NGFW Entry-level Series FortiGate 80E |
| Detail: | 14 x GE RJ45 ports (including 1 x DMZ port, 1 x Mgmt port, 1 x HA port, 12 x switch ports), 2 x Shared Media pairs (Including 2 x GE RJ45 ports, 2 x SFP slots). Max managed FortiAPs (Total/Tunnel) 32/16 |
Description

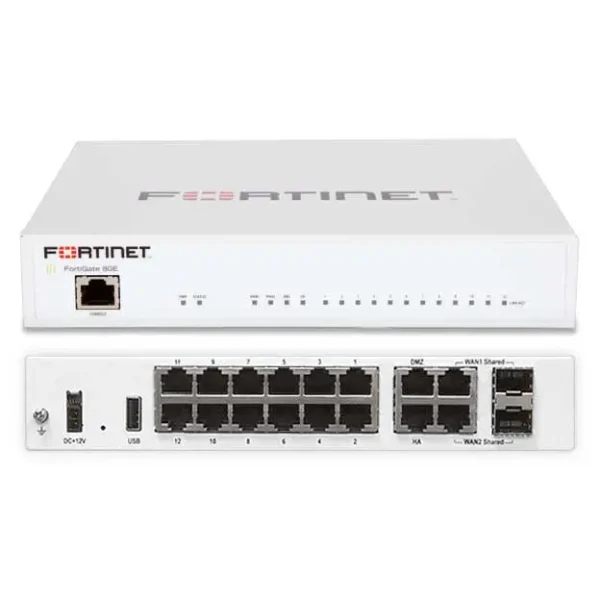

FG-80E Overview
FG-80E is the Fortinet NGFW Entry-level Series FortiGate 80E firewall. The FortiGate 80E series offers an excellent Security and SD-WAN solution in a compact fanless desktop form factor for enterprise branch offices and mid-sized businesses.
Quick Spec
Table shows the quick spec.
| SKU | FG-80E |
| Firewall | 4 Gbps |
| IPS | 450 Mbps |
| NGFW | 360 Mbps |
| Threat Protection | 250 Mbps |
| Interfaces | 14x GE RJ45 ports (including 1x DMZ port, 1x Mgmt port, 1x HA port, 12x switch ports),
2x Shared Media pairs (including 2x GE RJ45 ports, 2x SFP slots) |
FG-80E Specification |
|
| Type | FORTIGATE 80E |
|
Hardware Specifications |
|
| GE RJ45/SFP Shared Media Pairs | 2 |
| GE RJ45 Ports | 12 |
| GE RJ45 PoE/+ Ports | – |
| GE RJ45 DMZ/HA Ports | 2 |
| USB Ports | 1 |
| Console (RJ45) | 1 |
| Internal Storage | – |
|
System Performance and Capacity |
|
| Firewall Throughput (1518 / 512 / 64 byte UDP packets) | 4 / 4 / 4 Gbps |
| Firewall Latency (64 byte UDP Packets) | 3 μs |
| Firewall Throughput (Packet per Second) | 6 Mpps |
| Concurrent Sessions (TCP) | 1.3 Million |
| New Sessions/Second (TCP) | 30,000 |
| Firewall Policies | 5,000 |
| IPsec VPN Throughput (512 byte) | 2.5 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 200 |
| Client-to-Gateway IPsec VPN Tunnels | 2,500 |
| SSL-VPN Throughput | 200 Mbps |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 200 |
| SSL Inspection Throughput (IPS, avg. HTTPS) | 135 Mbps |
| SSL Inspection CPS (IPS, avg. HTTPS) | 135 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 95,000 |
| Application Control Throughput (HTTP 64K) | 900 Mbps |
| CAPWAP Throughput (HTTP 64K) | 920 Mbps |
| Virtual Domains (Default / Maximum) | 10 / 10 |
| Maximum Number of Switches Supported | 8 |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 32 / 16 |
| Maximum Number of FortiTokens | 500 |
| Maximum Number of Registered FortiClients | 200 |
| High Availability Configurations | Active / Active, Active / Passive, Clustering |
|
System Performance |
|
| IPS Throughput | 450 Mbps |
| NGFW Throughput | 360 Mbps |
| Threat Protection Throughput | 250 Mbps |
|
Dimensions and Power |
|
| Height x Width x Length | 1.65 x 8.5 x 7 inches
42 x 216 x 178 mm |
| Form Factor | Desktop |
| Power Required | 100–240V AC, 50–60 Hz |
| Power Consumption (Average / Maximum) | 18 W / 25 W |
| Current (Maximum) | 100V AC / 0.25A, 240V AC / 0.11A |
| Heat Dissipation | 85.30 BTU/h |
|
Operating Environment and Certifications |
|
| Operating Temperature | 32–104°F (0–40°C) |
| Storage Temperature | -31–158°F (-35–70°C) |
| Humidity | 10–90% non-condensing |
| Noise Level | Fanless 0 dBA |
| Operating Altitude | Up to 16,404 ft (5,000 m) |
| Compliance | FCC Part 15B, Class B, CE, RCM, VCCI, UL/cUL, CB, BSMI |
| Certifications | ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN |
Compare to Similar Item
Table shows the comparison of FG-80E and FG-81E.
|
Sku |
FG-80E |
|
|
Firewall |
4 Gbps |
4 Gbps |
|
IPS |
450 Mbps |
450 Mbps |
|
NGFW |
360 Mbps |
360 Mbps |
|
Threat Protection |
250 Mbps |
250 Mbps |
|
Interfaces |
14x GE RJ45 ports (including 1x DMZ port, 1x Mgmt port, 1x HA port, 12x switch ports), 2x Shared Media pairs (including 2x GE RJ45 ports, 2x SFP slots) |
14x GE RJ45 ports (including 1x DMZ port, 1x Mgmt port, 1x HA port, 12x switch ports), 2x Shared Media pairs (including 2x GE RJ45 ports, 2x SFP slots) |
| Internal Storage | – |
1x 128 GB SSD |
