Product Details
FG-100E-BDL
AED2,598.00

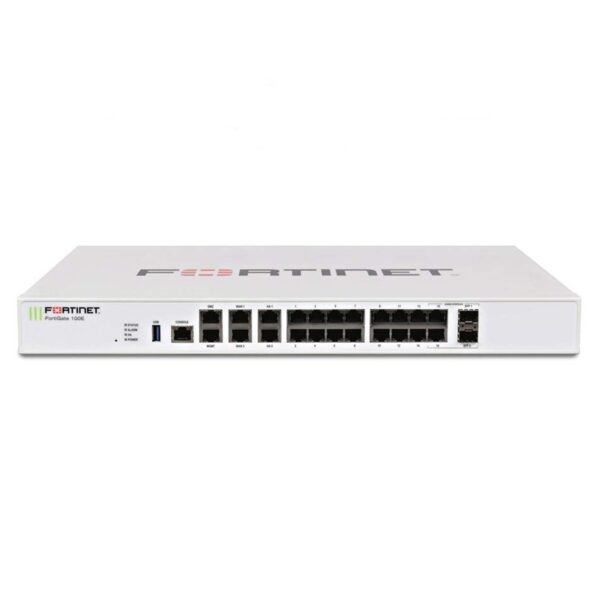

| Model: | FG-100E-BDL – Fortinet NGFW Middle-range Series FortiGate 100E BDL |
| Detail: | FG-100E Hardware plus 1 year 8×5 FortiCare and FortiGuard Unified (UTM) Protection |
Description
FG-100E-BDL Specification |
|
|
Type |
Fortinet FG-100E Hardware plus 1 Year 8×5 FortiCare and FortiGuard UTM Bundle |
|
Interfaces and Modules |
|
|
GE RJ45 Ports |
14 |
|
GE RJ45 Management/HA/DMZ Ports |
1 / 2 / 1 |
|
GE SFP Slots |
— |
|
GE RJ45 PoE/+ Ports |
— |
|
GE RJ45 WAN Ports |
2 |
|
GE RJ45 or SFP Shared Ports |
2 |
|
USB Port |
1 |
|
Console Port |
1 |
|
Internal Storage |
— |
|
Included Transceivers |
0 |
|
System Performance and Capacity |
|
|
Firewall Throughput (1518 / 512 / 64 byte, UDP) |
7.4 / 7.4 / 4.4 Gbps |
|
Firewall Latency (64 byte, UDP) |
3 μs |
|
Firewall Throughput (Packet per Second) |
6.6 Mpps |
|
Concurrent Sessions (TCP) |
2 Million |
|
New Sessions/Second (TCP) |
30,000 |
|
Firewall Policies |
10,000 |
|
IPsec VPN Throughput (512 byte) |
4 Gbps |
|
Gateway-to-Gateway IPsec VPN Tunnels |
2,000 |
|
Client-to-Gateway IPsec VPN Tunnels |
10,000 |
|
SSL-VPN Throughput |
250 Mbps |
|
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) |
500 |
|
SSL Inspection Throughput (IPS, avg. HTTPS) |
130 Mbps |
|
SSL Inspection CPS (IPS, avg. HTTPS) |
130 |
|
Application Control Throughput (HTTP 64K) |
1 Gbps |
|
CAPWAP Throughput (1444 byte, UDP) |
1.5 Gbps |
|
Virtual Domains (Default / Maximum) |
10 / 10 |
|
Maximum Number of FortiSwitches Supported |
24 |
|
Maximum Number of FortiAPs (Total / Tunnel) |
64 / 32 |
|
Maximum Number of FortiTokens |
5,000 |
|
Maximum Number of Registered FortiClients |
600 |
|
High Availability Configurations |
Active / Active, Active / Passive, Clustering |
|
System Performance — Enterprise Traffic Mix |
|
|
IPS Throughput |
500 Mbps |
|
NGFW Throughput |
360 Mbps |
|
Threat Protection Throughput |
250 Mbps |
|
Dimensions and Power |
|
|
Height x Width x Length |
1.75 x 17 x 10 inches 44.45 x 432 x 254 mm |
|
Form Factor |
Rack Mount, 1 RU |
|
AC Power Supply |
100–240V AC, 60–50 Hz |
|
Power Consumption (Average / Maximum) |
23.0 W / 25.5 W |
|
Heat Dissipation |
87.0 BTU/h |
|
Operating Environment and Certifications |
|
|
Operating Temperature |
32–104°F (0–40°C) |
|
Storage Temperature |
-31–158°F (-35–70°C) |
|
Humidity |
10–90% non-condensing |
|
Noise Level |
40.4 dBA |
|
Operating Altitude |
Up to 7,400 ft (2,250 m) |
|
Compliance |
FCC Part 15B, Class A, CE, RCM, VCCI, UL/cUL, CB, BSMI |
|
Certifications |
ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; IPv6 |
