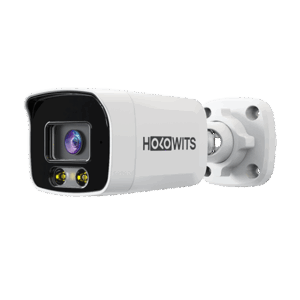

E1U-2LRV(2.8) AI Lite
2MP DualLightBullet Camera with Microphone
- 1/3” CMOS Sensor
- Support H.264/H.265/H.265+
- Support ONVIF Profiles
- Ingress Protection: IP67
- 2 White Lights and 2 IR Lights
- Support DWDR, 3D Noise Reduction, Backlight Compensation, and White Balance, Suitable for Different Monitoring Environments
- Support Remote Monitoring via Mobile App
- Built-In Microphone
- With 0.5T Computing Power
- Description
Description
Technical Spec
Camera
| Image Sensor | 1/ 3”CMOS/1920 (H)*1080 (V) |
| Max Aperture | F2.0 |
| Lens Aperture Type | Fixed iris |
| Focal Length | 2.8mm |
| Angle of View | H 100.5°, V 55.9°, D: 116.9° |
| White Light Range | 20m |
| IR Range | 30m |
Intelligence
| Computing Power | 0.5T |
| Behavior Analysis | Motion Detection/Intrusion detection/Tripwire crossing detection/Off-duty detection |
| Crowd Flow Analysis | Passenger flow statistics |
Video/Image
| Video Encoding Format | H.264/H.265/H.265+ |
| Video Frame Rate | Default 2MP@30fps |
| Video Encoding Channels | Dual Stream |
| Min Illumination | 0.02lux |
| Day/Night Mode | Day/Night mode: automatic, color, B/W(default: automatic) Trigger mode: image triggered or internal signal triggered (default: image triggered) |
| WDR | Auto/Weak/General/Strong/Disable |
| White Balance | Incandescent Light/Warm light light/Fluorescent light/Natural light/Manual white balance/Auto white balance/Locked white balance |
| SNR | ≥50dB |
| Main Stream | 1920*1080@(1-25/30 fps) |
| Sub stream | 448P(800*448)/D1(704*576)/360P(640*360 )/ CIF(352*288)@ (1-30 fps) |
| Signal System (Video Format) | PAL/NTSC |
| Digital Noise Reduction | Auto/Weak/General/Strong |
Audio
| Audio Encoding Format | G.711a/G.711u |
| Built-In Speaker | Not supported |
| Built-In Microphone | Supported |
Network
| Protocol | ONVIF，P2P，CGI，HTTP，TCP/IP，IPv4，RTSP，UDP，NTP，DHCP，DNS |
| Web Browser | Chrome/Edge/Firefox etc. |
| Compatible VIP/NVR/XVR | E700 Series NVR |
| Cloud Service | HOLOZ |
Port
| Network Port | 10M/100M Ethernet, RJ45 port |
General Specifications
| Power Type | PoE 48V, 0.2A, 10W Max (IEEE802.3af) |
| Power Consumption | Day ≦3W Night ≦7W |
| Operating Temperature | -30 °C to 60 °C |
| Operating Humidity | 10% to 90%(Non-Condensing) |
| IP Rating | IP67 |
| Weight | 330g(0.73lb) |
| Weight (With Package) | 380g (0.84lb) |
| Dimension | 179mm*67.2mm*62.5mm (L*W*H) |
| Material | Metal |
| Language | Support English/Chinese/Russian/Japanese/Korean/Italiano/Português etc |
