| Model |
DPB-TIO02 |
| Input interface |
HDMI*1 (HDMI 1.4, support 1920*1200@60Hz, support HDCP) |
|
DVI*2 (VESA standard, support 1920*1200@60Hz, support HDCP) |
|
AUDIO*1 (Audio input, used with multi-function card (optional)) |
| Output interface |
Port*2 (RJ45, 2 Gigabit Ethernet port output, 2 Ethernet ports can be spliced up, down, left and right arbitrarily) |
| Control interface |
USB OUT*1 (USB output, used for cascading between devices) |
|
USB IN*1 (USB input, connected to PC for parameter debugging) |
| Power supply |
100～240VAC |
| Dimension |
Standard 1U cabinet |
| Weight |
2.0kg |
| Rated power |
10W |
| Model |
DPB-TIO04 |
| Input interface |
HDMI*1 (HDMI 1.4, support 1920*1200@60Hz, support HDCP) |
|
DVI*2 (VESA standard, support 1920*1200@60Hz, support HDCP) |
|
AUDIO*1 (Audio input, used with multi-function card (optional)) |
| Output interface |
Port*2 (RJ45, 4 Gigabit Ethernet port output, 4 Ethernet ports can be spliced up, down, left and right arbitrarily) |
| Control interface |
USB OUT*1 (USB output, used for cascading between devices) |
|
USB IN*1 (USB input, connected to PC for parameter debugging) |
| Power supply |
100～240VAC |
| Dimension |
Standard 1U cabinet |
| Weight |
2.0kg |
| Rated power |
8W |
| Model |
DPB-TIO06 |
| Input interface |
HDMI*1 (HDMI 1.4 specification, support 1920*1200@60Hz, support HDCP) |
|
DVI*2 (VESA standard, support 1920*1200@60Hz, support HDCP) |
|
SDI*1 (3G SDI standard, support 1080p, 1080i, 720p) |
|
AUDIO IN×1 (3.5mm interface, support audio input) |
| Output interface |
Port*6 (RJ45, 6-channel Gigabit Ethernet port output, can be spliced arbitrarily up, down, left and right) |
|
AUDIO OUT×1 (3.5mm interface, support audio output, support HDMI audio analysis output) |
| Control interface |
RS232*1 (RJ11 interface, can be connected to the central control) |
|
USB_OUT*1 (USB output for cascading between devices) |
|
USB_IN*1 (USB input, connect to PC for debugging parameters) |
| Power supply |
100~240VAC |
| Equipment size |
Standard 1U chassis |
| Equipment weight |
3.07Kg |
| Rated power |
30W |
| Model |
DPB-TIO07 |
| Input interface |
HDMI*1 (HDMI 1.4 specification, support 1920*1200@60Hz, support HDCP) |
|
DVI*2 (VESA standard, support 1920*1200@60Hz, support HDCP) |
|
SDI*1 (3G SDI standard, support 1080p, 1080i, 720p) |
|
AUDIO IN×1 (3.5mm interface, support audio input) |
| Output interface |
Port*8 (RJ45, 8-channel Gigabit Ethernet port output, can be spliced arbitrarily up, down, left and right) |
|
AUDIO OUT×1 (3.5mm interface, support audio output, support HDMI audio analysis output) |
| Control interface |
RS232*1 (RJ11 interface, can be connected to the central control) |
|
USB_OUT*1 (USB output for cascading between devices) |
|
USB_IN*1 (USB input, connect to PC for debugging parameters) |
| Power supply |
100~240VAC |
| Equipment size |
Standard 1U chassis |
| Equipment weight |
3.1Kg |
| Rated power |
30W |
| Model |
DPB-TIO12 |
| Input interface |
HDMI*1 (HDMI 1.4 specification, support 1920*1200@60Hz, support HDCP) |
|
DVI*2 (VESA standard, support 1920*1200@60Hz, support HDCP) |
|
SDI*1 (3G SDI standard, support 1080p, 1080i, 720p) |
|
AUDIO IN×1 (3.5mm interface, support audio input) |
| Output interface |
Port*8 (RJ45, 8-channel Gigabit Ethernet port output, can be spliced arbitrarily up, down, left and right) |
|
AUDIO OUT×1 (3.5mm interface, support audio output, support HDMI audio analysis output) |
| Control interface |
RS232*1 (RJ11 interface, can be connected to the central control) |
|
USB_OUT*1 (USB output for cascading between devices) |
|
USB_IN*1 (USB input, connect to PC for debugging parameters) |
| Power supply |
100~240VAC |
| Equipment size |
Standard 1U chassis |
| Equipment weight |
3.1Kg |
| Rated power |
30W |
| Model |
DPB-TIO08-4K |
| Input Interface |
HDMI2.0×1 (Input resolution : 4096×2160@60Hz, support audio input) |
|
DP1.4×1 (Input resolution : 4096×2160@60Hz, support audio input) |
|
HDMI1.4×2 (Input resolution : 1920×1200@60Hz, support audio input) |
|
DVI×2 (Input resolution : 1920×1200@60Hz) |
|
AUDIO×1 (Audio input, connect audio signals of computers and other devices) |
| Output Interface |
Port×8 (RJ45, 8-channel Gigabit Ethernet port output) |
|
AUDIO×1 (Audio output, can output audio to active speakers and other devices (support HDMI, DP audio analysis output)) |
| Control interface |
LAN×1 (RJ45, can be connected to LAN) |
|
RS232×1 (RJ11 interface, used to connect to the central control) |
|
USB OUT × 1 (USB output for cascade control between devices) |
|
USB IN×1 (USB input, connected to a computer for debugging parameters) |
| Working power supply |
100-240VAC |
| Device size |
482.6mm*88.0mm*415.1mm |
| Equipment weight |
4.8Kg |
| Rated power |
50W |
| Model |
DPB-TIO16-4K |
| Input interface |
HDMI2.0*1 (EIA/CEA-861 standard, comply with HDMI 2.0 standard, support 4096*2160@60Hz, downward compatible with HDMI 1.4 and HDMI 1.3, support audio input) |
|
DP 1.4 *1 (DP 1.4 specification, support EDID setting, support 4096*2160@60Hz, support audio input) |
|
DVI*2 (Support HDCP 1.4, support 1920*1200@60Hz) |
|
HDMI1.4*2 (Support HDCP 1.4, support 1920*1200@60Hz, support audio input) |
|
AUDIO IN*1 (Audio input, can receive audio input from computers and other devices) |
| Output interface |
Port*16 (RJ45, 16-channel 1G network port output, can be arbitrarily spliced up, down, left and right) |
|
AUDIO OUT*1 (Audio output, can output audio to active speakers and other devices (support HDMI, DP audio analysis output)) |
| Control interface |
RS232*1 (RJ11 (6P6C) interface, can be connected to the central control) |
|
LAN*1 (100M Ethernet port, can connect to LAN control equipment) |
|
USB_OUT*1 (USB output for cascading between devices) |
|
USB_IN*1 (USB input, connected to PC for debugging parameters) |
| Power supply |
100-240VAC, 50/60Hz |
| Size |
W*H*L / 482.6mm*103.0mm*415.1mm (Standard 2U case) |
| Weight |
4.8kg |
| Rated power |
50W |
| Model |
DPB-TIO20-4K |
| Input interface |
HDMI2.0×1 (The maximum input resolution is 4096×2160@60Hz, backward compatible with HDMI 1.4 and HDMI 1.3, and supports audio input;) |
|
DP 1.2×1 (Maximum input resolution 4096*2160@60Hz, supports EDID and audio input;) |
|
HDMI1.4×2 (Maximum input resolution 1920×1200@60Hz, supports EDID, supports audio input;) |
|
DVI×2 (Maximum input resolution 1920×1200@60Hz, supports EDID;) |
|
AUDIO IN (Audio input, used to receive audio input from computers and other devices) |
| Output interface |
Port×20 (RJ45, 20 Gigabit Ethernet output ports, support flexible splicing up, down, left, and right) |
|
10 Gigabit fiber optic port × 2 (Interface 1 corresponds to the 1-10 Gigabit network port output, and interface 2 corresponds to the 11-20 Gigabit network port output. It needs to be matched with a 10G single-mode optical module (optional), and the transmission distance is 2Km;) |
|
AUDIO OUT (Audio output, used to output audio to speakers and other devices (support HDMI audio analytic output)) |
| Control interface |
RS232×1 (RJ11 interface, connected to the central control) |
|
USB_OUT×1 (USB output, used for cascading between devices) |
|
USB_IN×1 (USB input, connected to PC for debugging parameters) |
|
LAN×1 (RJ45, can connect to LAN) |
| Power supply |
100-240VAC |
| Equipment size |
482.6mm×88.0mm×414.1mm |
| Weight |
4.8Kg |
| Rated power |
50W |
| Model |
DPB-TIO26-4K |
| Input Interface |
HDMI2.0×1 (Maximum supported input resolution 4096×2160@60Hz, supports custom resolution, supports audio input) |
|
DP1.2×1 (Maximum supported input resolution 4096×2160@60Hz, supports custom resolution, supports audio input) |
|
HDMI 1.4×2 (Maximum supported input resolution 1920×1200@60Hz, supports custom resolution, supports audio input) |
|
DVI×2 (Maximum supported input resolution 1920×1200@60Hz, supports custom resolution) |
|
AUDIO IN×1 (3.5mm interface, supports audio input) |
|
U-DISK×1 (U disk interface, can play videos/pictures in U disk, maximum resolution 4096×2160@60Hz) |
| Output Interface |
Port×26 (RJ45, 26-way Gigabit Ethernet output) |
|
Optical fiber interface × 3 (Interface 1 corresponds to 1-10 Gigabit Ethernet port output, interface 2 corresponds to 11-20 Gigabit Ethernet port output, interface 3 corresponds to 21-26 Gigabit Ethernet port output, requires 10G single-mode optical module (optional), transmission distance 2Km) |
|
AUDIO OUT × 1 (3.5mm interface, supports audio output, supports HDMI and DP audio analysis output) |
| Control Interface |
LAN×1 (RJ45, can be connected to LAN) |
|
RS232×1 (RJ11 interface, can be connected to the central control) |
|
USB IN×1 (USB input, connected to a computer for debugging parameters) |
|
USB OUT × 1 (USB output for cascade control between devices) |
| Working power supply |
AC100V~240V, 50/60Hz |
| Device size |
482.6mm×385.0mm×133.3mm (length×width×height) |
| Equipment Net Weight |
6.25Kg |
| Rated power |
80W |
| Model |

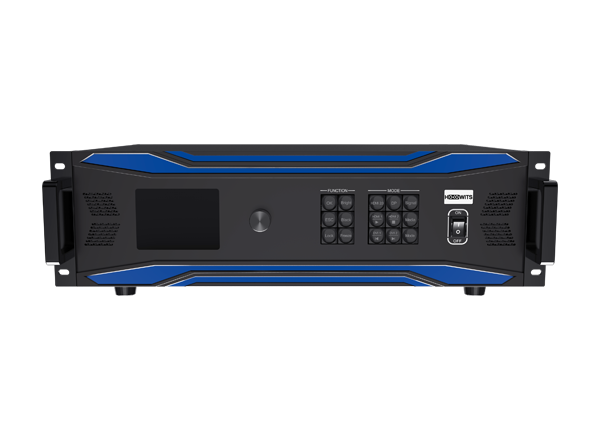

DPB-TIO40-4K |
| Input interface |
HDMI 2.0×1 (Maximum resolution 4096×2160@60Hz, backward compatible with HDMI 1.4 and HDMI 1.3, supports audio input, and supports independent EDID setting management) |
|
DP 1.2×1 (Maximum resolution 4096×2160@60Hz, supports audio input, and supports independent EDID setting management) |
|
HDMI1.4×2 (Maximum resolution 1920×1200@60Hz, supports audio input, and supports independent EDID setting management) |
|
DVI×2 (Maximum resolution 1920×1200@60Hz, supports independent EDID setting management) |
|
AUDIO IN (3.5mm interface to receive audio signals from computers and other devices;) |
|
U-DISK×1 (U disk interface, can play videos/pictures in U disk, maximum resolution 4096×2160@60Hz) |
| Output Interface |
Port×40 (RJ45, 40-channel Gigabit network port output) |
|
10G optical fiber interface×4 (Used with 10G single-mode optical module (optional), supports dual LC optical fiber interfaces, transmission distance 2Km) |
|
AUDIO OUT (3.5mm interface, output audio signals to active speakers and other devices (supports HDM, DP audio analysis output)) |
| Control interface |
RS232×1 (RJ11 interface, can be connected to central control) |
|
USB_OUT×1 (USB output for cascading between devices) |
|
USB_IN×1 (USB input, connect to PC for debugging parameters) |
|
LAN×1 (RJ45, can connect to LAN) |
| Working power supply |
100-240VAC |
| Dimensions (mm) |
482.6mm×133.3mm×385.0mm |
| Weight |
6.10Kg (net weight) |
| Rated power |
85W |
