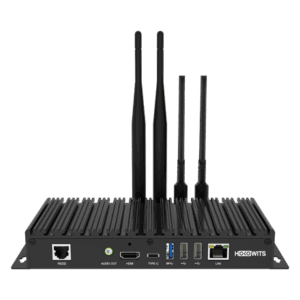

DPB-AS Async Send Box Series - Image 1
DCT-U4K60AI-2
DPB-FT Series

DPB-AS Async Send Box Series

DPB-AS Series Async Send Boxes

  • Models: DPB-AS65 (0.65MP), DPB-AS130 (1.3MP), DPB-AS230 (2.3MP), DPB-AS4K (4K)
  • Supports 4G, WiFi, wired network; rapid deployment for intelligent cloud management
  • Enables multi-screen, multi-service, cross-regional LED display control with unified networking
Categories: ,
Enquiry Now

Description

DPB-AS Series Async Send Boxes

  • Models: DPB-AS65 (0.65MP), DPB-AS130 (1.3MP), DPB-AS230 (2.3MP), DPB-AS4K (4K)
  • Supports 4G, WiFi, wired network; rapid deployment for intelligent cloud management
  • Enables multi-screen, multi-service, cross-regional LED display control with unified networking
Model Key Features Interfaces Power Dimensions (mm) Weight Temp Range
DPB-AS65 0.65MP Async Box, USB/Cloud control, RJ11 sensors, 4G/WiFi/USB 3.0 USB-B×1, USB-A×1, RJ11×2, SIM×1, 4G ANT×1, LAN×1, AUDIO×1, DISPLAY RJ45×1 DC 5V–12V, 12W 108×128×26 0.33kg -30°C to 70°C
DPB-AS130 1.3MP Async Box, HDMI sync/asynchronous, dual RJ11, WiFi USB-B×1, RJ11×2, HDMI IN×1, HDMI OUT×1, LAN×1, AUDIO OUT×1, Output RJ45×2, WiFi×1 DC 12V, 12W 234.8×137.4×26 0.83kg -20°C to 65°C
DPB-AS230 2.3MP Async Box, 4×Output ports, HDMI I/O, environmental sensors USB-B×1, RJ11×2, HDMI IN×1, HDMI OUT×1, LAN×1, AUDIO OUT×1, Output RJ45×4, WiFi×1 DC 12V, 12W 234.8×137.4×26 0.9kg -20°C to 65°C

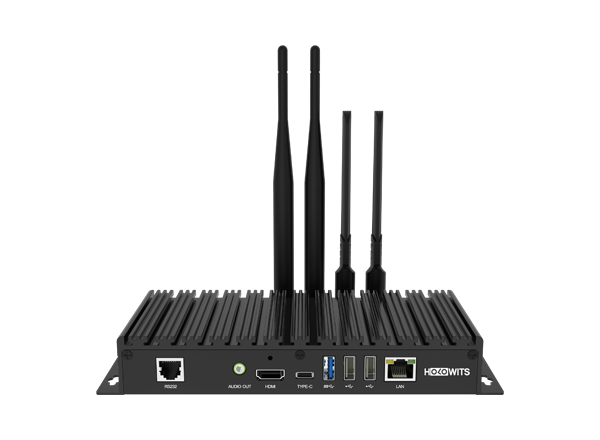

DPB-AS4K 4K Async Box, Dual HDMI2.0, Gigabit LAN, dual WiFi, SIM/4G, RS232 HDMI2.0×2, USB2.0×2, USB3.0×1, SIM×1, 4G ANT×2, RS232×1, LAN×1, AUDIO OUT×1, WiFi ANT×2 DC 5V–12V/2A, 15W 215×94×32 0.57kg -30°C to 65°C
