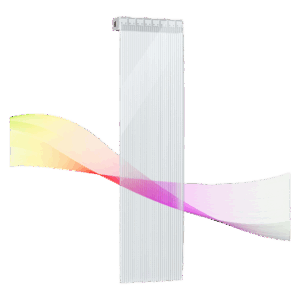

Display P08F-I - Image 1
Display P06T-I
Display P09-I

Display P08F-I

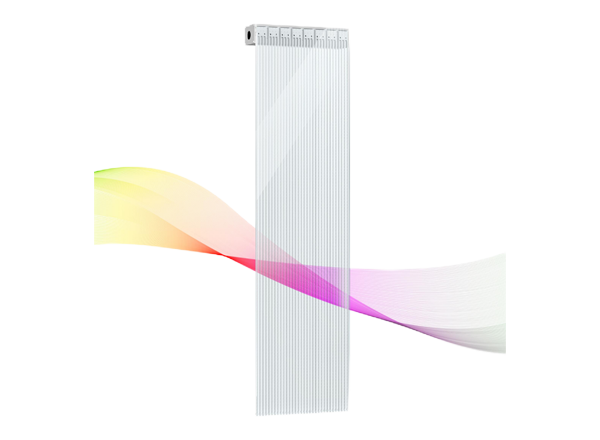

LED Indoor Display / Adhesive LED Transparent Screen

  • LED transparent laminating screen, mainly used for architectural glass curtain wall, curved glass curtain wall, with high transmittance, ultra-thin and light.
  • Bendable and arbitrary cutting, customized size according to the application scene.
  • Easy to install, can be directly installed in the building glass curtain wall inside and outside, no structural obstruction, will not affect the original structure of the building, appearance, and indoor lighting.
  • Laminating screen has obvious technical advantages in glass curtain wall and other application scenes.
Categories: ,
Enquiry Now

Description

Technical Spec

Pixel Pitch L(8mm) * W(8mm)
Pixel Density 15625 pixels/㎡
Display Thickness 3-6mm
LED Chip SMD2020
Product Size 960*256mm/1200*256mm
Power Consumption Average:240W/㎡, Maximum:800W/㎡
Screen Weight ≤3.5kg/㎡
Screen Transparency >60%
IP Rating IP45
Average Lifespan ≥100,000 operating hours
Power Requirements 220V±10%; AC50HZ
Screen Brightness 1500-5000cd/㎡
Viewing Distance Clear image visible at 10m-250m distance
Viewing Angle Horizontal ≥160°, Vertical ≥140°
Gray Level ≥16 bit
Color Temperature 5500K-15000K (Adjustable)
Driving Method Static
Attenuation Rate Less than 0.05% in 2 years
Refresh Rate ≥3840HZ
Frame Rate ≥60HZ
Average Operating Time ≥10,000 hours
Led Chip Failure Rate ≤1/10,000
Control System Colorlight/Novastar, Synchronous/Asynchronous
Operating Environment -10~+65 ℃/ 10~90 %RH
Storage Environment -40+85 ℃/10~90%RH
Installation Method Adhering to Glass; Hanging Installation, Fixed Installation
