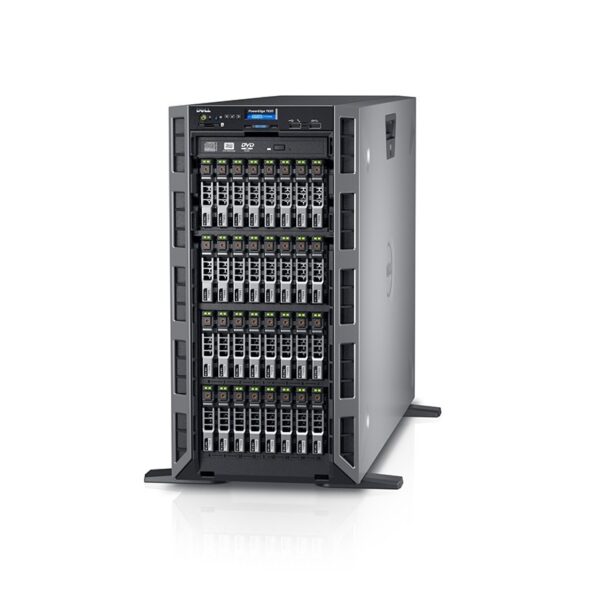

Dell PowerEdge T630 Xeon E5-2603 v4 4GB 1TB SAS H330 Tower Server Specification
|
|
Product Series
|
Dell PowerEdge T630 Server
|
|
Model
|
Dell PowerEdge T630 Xeon E5-2603 v4 4GB 1TB SAS H330 Tower Server
|
|
Fully Customizable
|
Intel® Xeon® E5-2603 v4, Optional Operating System, 4GB Memory, 1TB Hard Drive, SAS, H330 and a 3 Year Warranty
|
|
Processor
|
Intel® Xeon® E5-2603 v4 1.7GHz,15M Cache,6.4GT/s QPI,6C/6T (85W) Max Mem 1866MHz
|
|
Operating System
|
No Operating System
|
|
Memory
|
4GB RDIMM, 2400MT/s, Single Rank, x8 Data Width
|
|
Hard Drive
|
1TB Hard Drive
|
|
Warranty
|
3 Year Basic Hardware Warranty Repair, 5X10 HW-Only, 5×10 NBD On-site
|
|
Chipset
|
Intel C610 series chipset
|
|
Embedded Hypervisor (Optional)
|
Microsoft® Windows Server® 2008, with Hyper-V®
VMware® ESXi
Citrix XenServer
|
|
Storage
|
SAS, SATA, Near-line SAS, SSD, PCIe SSD
Up to 4 optional Express Flash PCIe SSDs
Up to 144TB via 18 x 8TB 3.5” HDDs
|
|
Drive Bays
|
Internal hard drive bay and hot-plug backplane:
Up to 8 x 3.5” SAS, SATA, Near-Line SAS,SSD, PCIe SSD drives with optional flex bay
Up to 18 x 3.5” SAS, SATA, Near-Line SAS,SSD drives without optional flex bay
Up to 16 x 2.5” SAS, SATA, Near-line SAS, SSD, PCIe SSD drives with optional flex bay
Up to 32 x 2.5” SAS, SATA, Near-Line SAS,SSD drives with optional flex bay
|
|

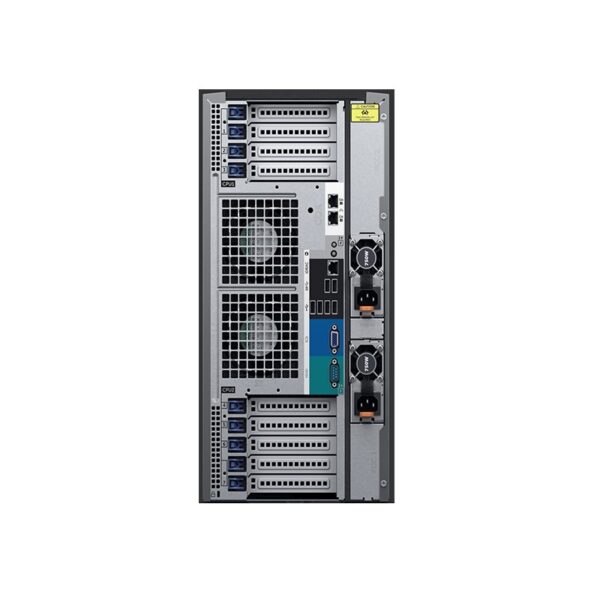

Slots
|
Slot 1: Full Length, Full Height, CPU1 – PCIe Gen3 x16 (x16 connector)
Slot 2: Full Length, Full Height, PCH – PCIe Gen2 x4 (x8 connector)
Slot 3: Full Length, Full Height, CPU1 – PCIe Gen3 x16 (x16 connector)
Slot 4: Half Length, Full Height, CPU2 – PCIe Gen3 x8 (x8 connector)
Slot 5: Full Length, Full Height, CPU2 – PCIe Gen2 (DMI) x4 (x8 connector)
Slot 6: Full Length, Full Height, CPU2 – PCIe Gen3 x16 (x16 connector)
Slot 7: Full Length, Full Height, CPU2 – PCIe Gen3 x16 (x16 connector)
Slot 8: Half Length, Full Height, CPU1 – PCIe Gen3 x8 (x8 connector)
|
|
RAID Controllers
|
Internal:
PERC S130
PERC H330
PERC H730
PERC H730P
External:
PERC H830
|
|
Network Controller
|
2 x 1Gb
|
|
Communications
|
Broadcom® 5719 quad-port 1Gb NIC
Broadcom 5720 dual-port 1Gb NIC
Broadcom 57810 dual-port 10Gb DA/SFP+ CNA
Broadcom 57810 dual-port 10Gb Base-T network adapter
Intel® Ethernet I350 dual-port 1Gb server adapter
Intel Ethernet I350 quad-port 1Gb server adapter
Intel Ethernet X540 dual-port 10GBASE-T server adapter
Mellanox® ConnectX®-3 dual-port 10Gb Direct Attach/SFP+ server network adapter
Mellanox ConnectX-3 dual-port 40Gb Direct Attach/QSFP server network adapter
Emulex® LPE 12000, single-port 8Gb Fibre Channel HBA
Emulex LPE 12002, dual-port 8Gb Fibre Channel HBA
Emulex LPe16000B, single-port 16Gb Fibre Channel HBA
Emulex LPe16002B, dual-port 16Gb Fibre Channel HBA
Emulex OneConnect OCe14102-U1-D 2-port PCIe 10GbE CNA
QLogic® 2560, single-port 8Gb Optical Fibre Channel HBA
QLogic 2562, dual-port 8Gb Optical Fibre Channel HBA
Qlogic 2660, single-port 16GB, Fibre Channel HBA, full height
Qlogic 2662, dual-port 16GB, Fibre Channel HBA, full height
|
|
Power
|
Titanium efficiency 750W AC power supply
Gold efficiency 1100W DC power supply
Platinum efficiency 495W, 750W, 1100W or 1600W AC power supply
|
|
Availability
|
ECC memory
Hot-plug hard drives
Hot-plug redundant cooling
Hot-plug redundant power
iDRAC8
Internal Dual SD Module
Single Device Data Correction (SDDC)
Spare Rank
Tool-less chassis
Support for high availability clustering and virtualization
Proactive systems management alerts
iDRAC8 with Lifecycle Controller
|
|
Graphics Card
|
Video Type :Integrated Integrated Matrox G200 with iDRAC8
Video Memory: 16 MB shared with iDRAC8 application memory
GPUs – Support for up to four optional 300W internal GPU processing accelerators
|
|
Chassis
|
Form Factor: 5U
Height 443.5 mm (17.5 inch) with feet
434.5 mm (17.1 inch) without feet
Width:48.2cm (18.98”)
Depth:75.09cm (29.56”)
Max Weight:
T630 full system with 2.5” HDD:
Max 2.5″x16 (6 fans) 37.57Kg/82.75lb
Max 2.5″x32 (6 fans) 40.55Kg/89.32lb
T630 full system with 3.5” HDD:
Max 3.5″x18 (6 fans) 49.65 Kg/109.36 lb
|
|
Management
|
Dell OpenManage portfolio of systems management solutions, including:
OpenManage Essentials console
iDRAC8 with Lifecycle Controller
|
