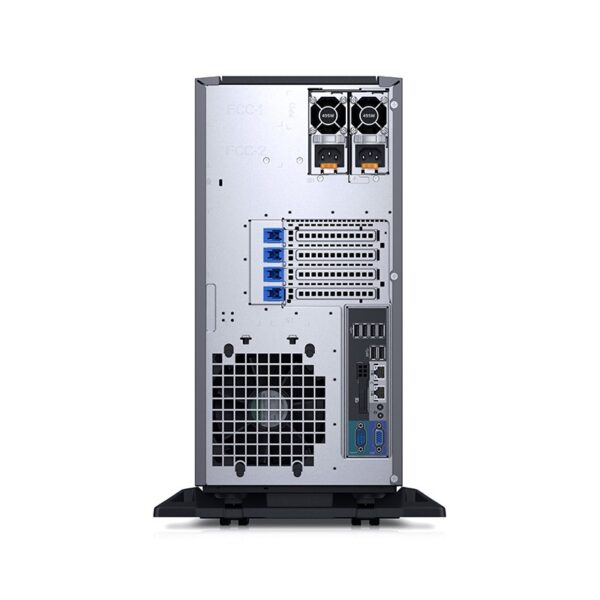

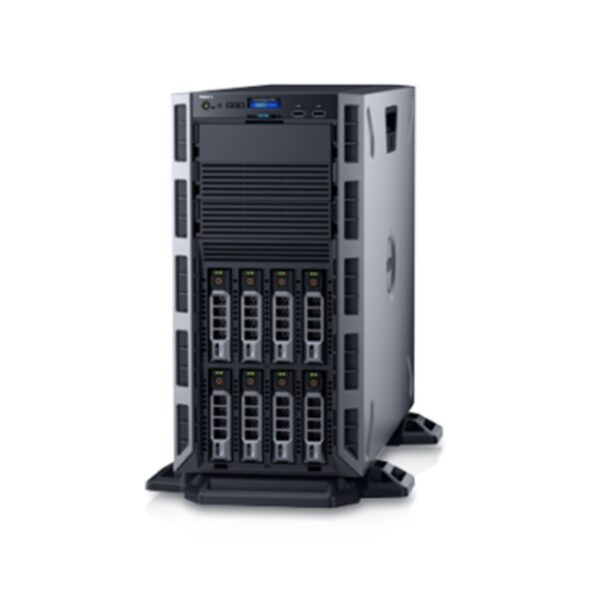

Dell PowerEdge T330 Xeon E3-1230 v5 8GB 500GB SATA Tower Server

Dell PowerEdge T330 Xeon E3-1230 V5 8BG 500GB SATA Tower Server Specification

Product Series

Dell PowerEdge T330 Server

Model

Dell PowerEdge T330 Xeon E3-1230 V5 8BG 500GB SATA Tower Server

Customizable

Intel® Xeon® E3-1230 v5, Optional Operating System, 8GB Memory, 500GB Hard Drive and a 3 Year Warranty

Processor

Intel® Xeon® E3-1230 v5 3.4GHz, 8M cache, 4C/8T, turbo (80W)

Operating System

No Operating System

Memory

8GB (1x8GB) 2400MT/s DDR4 ECC UDIMM

Hard Drive

500GB 7.2K RPM SATA 3Gbps 3.5in Hot-plug Hard Drive

Warranty

3 Years Basic Hardware Warranty Repair: 5×10 HW-Only, 5×10 NBD Onsite

Chipset

Intel C236

Embedded Hypervisor (Optional)

Hypervisor Support

Microsoft Windows Server with HyperV®
VMware vSphere ESXi®

Storage

2.5” SATA 7.2K
2.5” SATA SSD’s
2.5” nearline SAS 7.2K
2.5” SAS 10K HDDs
2.5” SAS 15K HDDs
3.5” Enterprise SATA 7.2K HDDs
3.5” nearline SAS 7.2K HDDs

Drive Bays

8 x 3.5″ bays (also supports 2.5” HDD in 3.5” hybrid drive carrier)

Slots

4 slots:
1×8 PCIe 3.0 (x16 connector)
1×4 PCIe 3.0 (x8 connector)
1×4 PCIe 3.0 (x8 connector)
1×1 PCIe 3.0 (x1 connector)

RAID Controllers

PERC S130, PERC H330, PERC H730, PERC H830

Network Controller

Broadcom® BCM5720

Communications

2 X 1GbE LOM

Power

1 x 350W cabled PSU
or up to 2 x 495W redundant PSUs

Device Access

8 total USB:
Rear USB: 2 x USB3.0 + 4 x USB 2.0
Front USB: 1 x USB 2.0 + 1 x USB 3.0

Management

Systems management:
IPMI 2.0 compliant
Dell OpenManage Essentials
Dell OpenManage Mobile
Dell OpenManage Power Center

Dell OpenManage Integrations:
Dell OpenManage Integration Suite for Microsoft System Center
Dell OpenManage Integration for VMware vCenter®

Dell OpenManage Connections:
HP Operations Manager
IBM Tivoli® Netcool®
CA Network and Systems Management
Dell OpenManage Plug-in for Oracle® Database Manager

Remote management:
iDRAC8 with Lifecycle Controller
iDRAC8 Express (default)
iDRAC8 Enterprise (upgrade)
8GB vFlash media (upgrade)
16GB vFlash media (upgrade)

Dimensions

Height: chassis base height – 430.3 mm/17.04 in
With foot – 443.3 mm/17.45 in
With wheel – 471.3 mm/18.55 in

Width: chassis base width – 218 mm/8.58 in
With foot – 304.5 mm/11.98 in

Depth: front to rear wall (w/o bezel) – 542.2 mm/21.33 in
front to PSU handle (w/o bezel) – 578.42 mm/22.77 in
front to rear wall (with bezel) – 558.6 mm/21.99 in
front to PSU handle (with bezel) – 594.82 mm/23.41 in
