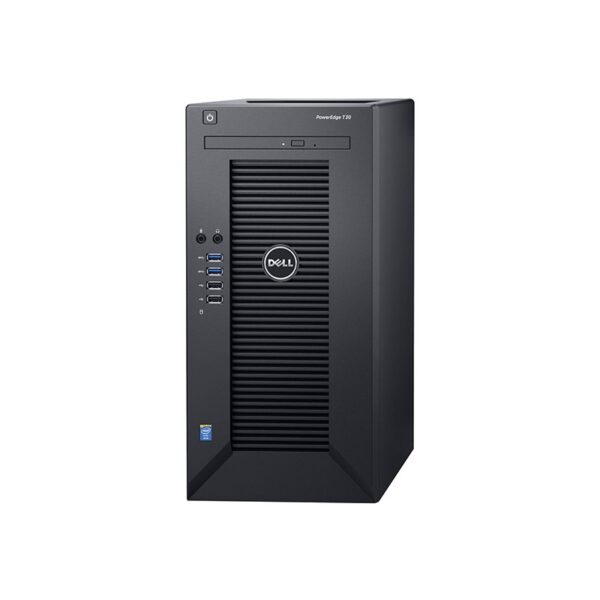

Dell PowerEdge T30 Xeon E3-1225 v5 8GB 1TB SATA Tower Server

Dell PowerEdge T30 Xeon E3-1225 v5 8GB 1TB SATA Tower Server Specification

Product Series

Dell PowerEdge T30 Server

Model

Dell PowerEdge T30 Pentium G4400 4GB 1TB SATA Tower Server

Fixed Configuration

Intel® Xeon® processor E3-1225 v5, 8GB memory, 1TB hard drive, SATA and a 1 year warranty

Processor

Intel Xeon E3-1225 v5 3.3G, 8M cache, 4C/4T, turbo (80W)

Operating System

No Operating System

Memory

8GB UDIMM, 2400MT/s, Single Rank, x8 Data Width

Hard Drive

1TB 7.2K RPM SATA 6Gbps Entry 3.5in Cabled Hard Drive

Warranty

1Yr Basic Hardware Warranty Repair: 5×10 HW-Only, 5×10 NBD Parts

Optical Drive

DVD+/-RW SATA Internal

Chipset

Intel C236

Storage

Up to 6 total SATA HDDs (4 x 3.5” SATA HDD + 2 additional 2.5” SATA HDD (w/ expansion kit and optional controller card)

Optical bay: Internal DVD+/-RW (standard on Intel Xeon configuration, optional on Intel Pentium configuration)

Slots

4 slots:
1 PCIe x16 3.0
1 PCIe x16 3.0 (x4 speed)
1 PCIe x4 3.0

1 PCI

RAID Controllers

Software RAID: Intel Rapid Storage Controller 12.0 (supports SATA 6Gb/s or SATA 3Gb/s)

Network Controller

Intel I219-LM Gigabit Ethernet LAN 10/100/1000 1-port

Power

290W

Availability

Error Correction Code (ECC) memory
Software RAID

Chassis

Mini tower

Management

Intel AMT 11.0 (supported on Intel Xeon config)
Intel Standard Manageability (supported on Pentium config)

Dimensions

Height: 14.17 inch / 359.9mm
Width : 6.89 inch / 175mm
Depth : 17.12 inch / 434.85mm

Ports

10x USB, 1 microphone, 1x headphone, PS2, Displayport, HDMI, RJ45, serial, audio in, audio out
