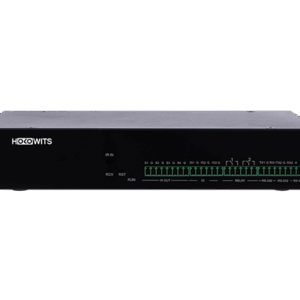

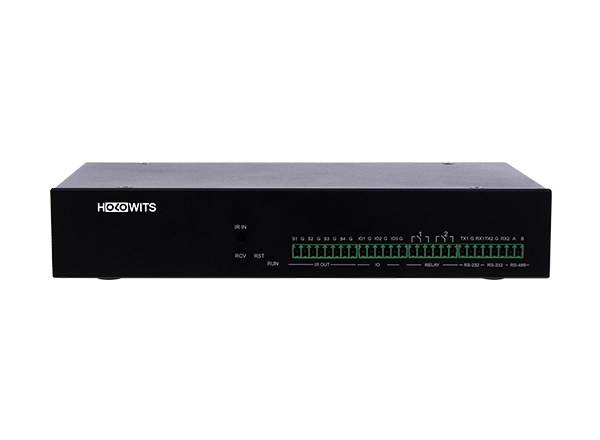

DCT-U4K60AI-1

U Series 4K60 1IO Distributed Control Terminal

Flexible 4K/8K video I/O with H.264/H.265 encoding, multi-stream tiling/scaling/splitting, 30ms latency, and embedded sync for direct LED/LCD/DLP wall deployment
Cross-platform KVM management supporting 16×1080P60 signal control, biometric login, OSD previews, account following, and text/screenshot communication via USB transparency
Robust embedded Linux system with dual power (DC12V/POE), IR learning, central control ports, and 24/7 stability via auto-recovery and network packet-loss repair
AI-powered features including gesture recognition, 16-scenario event analysis, OCR text extraction, and SM2/SM3/SM4 encryption for secure operations
Customizable AV workflows: 18-band audio EQ, signal cropping/annotation, dynamic subtitles/logo overlays, SIP video intercom, and environmental data displays
Serverless decentralized architecture with preset/adaptive video wall layouts (1P-16P), offline retention, and hot-swappable deployment

Categories: Display & Control, HOLOWITS

Processing power	Supports 4K@60fps input/output encoding/decoding with backward compatibility, supports 4-channel 4K@60 or 16-channel 1080P@60fps decoding
Codec capability	Supports H.264/H.265 video encoding and PCM audio lossless transmission
Video interface	1×HDMI IN, 1×HDMI OUT
Audio port	1×3.5mm stereo input, 1×3.5mm stereo output, input sensitivity: 775mV
USB interface	2×USB2.0 (KVM), 2×USB3.0 (AV input), 1×Type-C
Network port	1×RJ45, 10/100/1000Base-T, supports POE
OPTICAL fiber interface	1×SFP
Serial port	1×RS-485, 2×RS-232
Infrared	1×IR IN, 4×IR OUT
I/O Ports	3×I/O ports
Weak relay port	2×RELAY ports
Reset button	1×pinhole RST button
Restore settings button	1×pinhole RCV button
Mode switch	1×Input/output mode switch
Power supply	DC 12V / POE
Max power consumption	10W
Ambient temperature	-10°C~45°C (working), -15°C~45°C (non-working)
Environment humidity	5%~90% (working), no condensation
Weight	About 1.02kg
Dimensions (L×W×H)	240×117×41.8mm
