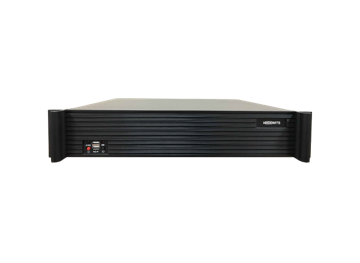

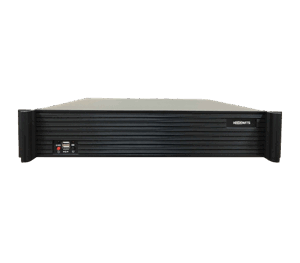

DCH-MA400
Distributed Control Management Platform 400
- Adopt the third-generation splicing processor design, based on the distributed architecture, run on the embedded Linux system, stable and reliable; support efficient management, control and data interaction of the splicing system.
- Embedded splicing server software and web management system, adopt B/S architecture, no need to install any software; conveniently and visually manage the entire splicing wall system via the browser.
- 2U rack-mounted hardware architecture, stable structure, superior heat dissipation.
- Standard with 1TB hard disk storage, support extension to 8TB, support the storage of audiovisual signals collected by 8-channel input box.
- Support dual-server hot backup. When the main server fails, it will immediately switch to the standby server.
- Description
Description
Technical Spec
| CPU | i3 dual core |
| RAM | 8GB DDR; maximum support 16GB DDR |
| Storage | 1TB SSD hard drive; 2 SATA2.0 ports; 1 SATA3.0 |
| Hard disk bay | Standard 3.5″ hard drive bay×6 |
| Display interface | VGA+DVI |
| Network port | Gigabit Ethernet port x2 |
| Hardware monitoring | Fault /error /overload /alarm(including disk /RAID /power /fan /temperature /IO performance) |
| Working temperature | -10°C~60°C |
| Relative humidity | 5%-90%, no condensation |
| Power supply | AC 220-240V 50/60Hz |
| Power consumption | 250W |
| Dimension | 400×428×88.5mm (D×W×H) |
| Net weight | 7.4kg |
| Gross weight | 9kg |
