Product Details

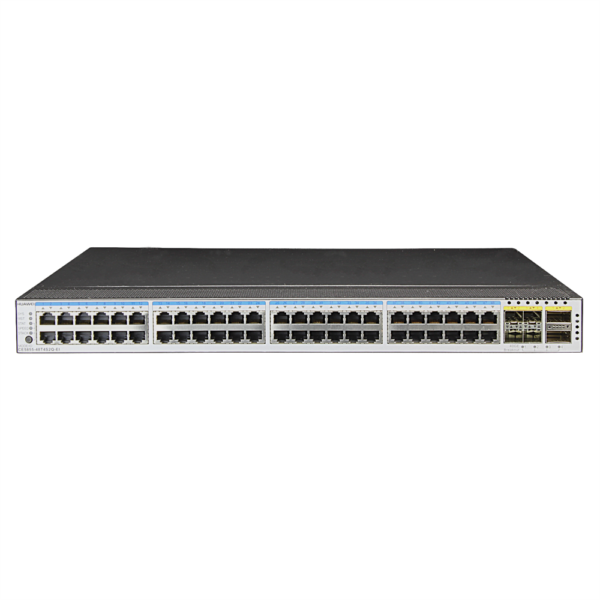

CE5850-48T4S2Q-EI
AED5,667.00
| Model: | CE5850-48T4S2Q-EI Huawei CE5800 Series Data Center Switch |
| Detail: | CE5850-48T4S2Q-EI Switch(48-Port GE RJ45,4-Port 10GE SFP+,2-Port 40GE QSFP+,Without Fan and Power Module) |
Description
CE5850-48T4S2Q-EI Specification |
|
|
Base-T Ports |
48 |
|
SFP+ Ports |
4 |
|
QSFP+ Ports |
2 |
|
Switching Capacity |
336 Gbit/s |
|
Forwarding Rates |
252 Mpps |
|
Airflow Design |
Front-to-back or back-to-front |
|
Device Virtualization |
iStack |
|
Super Virtual Fabric (SVF) |
|
|
Network Virtualization |
M-LAG |
|
TRILL (CE5855 & CE5850) |
|
|
VM Awareness |
Agile Controller |
|
SDN |
Open Programmability System (OPS) |
|
Traffic Analysis |
NetStream |
|
sFlow |
|
|
VLAN |
Adding access, trunk, and hybrid interfaces to VLANs |
|
Default VLAN |
|
|
QinQ |
|
|
MUX VLAN |
|
|
GVRP |
|
|
ACL |
ingress: 4.5k egress: 1k |
|
MAC Address Table |
maximum: 128k |
|
Dynamic learning and aging of MAC addresses |
|
|
Static, dynamic, and black hole MAC address entries |
|
|
Packet filtering based on source MAC addresses |
|
|
MAC address limiting based on ports and VLANs |
|
|
ARP (maximum) |
16k |
|
IPv4 FIB (maximum) |
12k |
|
IP Routing |
IPv4 routing protocols, such as RIP, OSPF, BGP, and IS-IS |
|
IPv6 routing protocols, such as RIPng, OSPFv3, IS-ISv6, and BGP4+ (not supported by CE5855) |
|
|
IPv6 FIB (maximum) |
6k |
|
IPv6 |
IPv6 Neighbor Discovery (ND) (not supported by CE5855) |
|
Path MTU Discovery (PMTU) (not supported by CE5855) |
|
|
TCP6, ping IPv6, tracert IPv6, socket IPv6, UDP6, and Raw IP6 |
|
|
Multicast FIB (maximum) |
2k |
|
Multicast |
IGMP, PIM-SM, PIM-DM, MSDP, and MBGP |
|
IGMP snooping |
|
|
IGMP proxy |
|
|
Fast leave of multicast member interfaces |
|
|
Multicast traffic suppression |
|
|
Multicast VLAN |
|
|
Reliability |
LACP |
|
STP, RSTP, VBST, MSTP |
|
|
BPDU protection, root protection, and loop protection |
|
|
Smart Link and multi-instance |
|
|
DLDP |
|
|
ERPS (G.8032) |
|
|
VRRP, VRRP load balancing, and BFD for VRRP |
|
|
BFD for BGP/IS-IS/OSPF/Static route |
|
|
QoS |
Traffic classification based on Layer 2 headers, Layer 3 protocols, Layer 4 protocols, and 802.1p priority |
|
Actions of ACL, CAR, re-marking, and scheduling |
|
|
Queue scheduling algorithms, including PQ, WRR, DRR, PQ + WRR, and PQ + DRR |
|
|
Congestion avoidance mechanisms, including WRED and tail drop |
|
|
Traffic shaping |
|
|
Configuration and Maintenance |
Console, Telnet, and SSH terminals |
|
Network management protocols, such as SNMPv1/v2c/v3 |
|
|
File upload and download through FTP and TFTP |
|
|
BootROM upgrade and remote upgrade |
|
|
802.3az Energy Efficient Ethernet (EEE) |
|
|
Hot patches |
|
|
User operation logs |
|
|
Zero-Touch Provisioning (ZTP) |
|
|
Security and Management |
802.1x authentication |
|
Command line authority control based on user levels, preventing unauthorized users from using commands |
|
|
DoS, ARP, and ICMP attack defenses |
|
|
Port isolation, port security, and sticky MAC |
|
|
Binding of the IP address, MAC address, interface number, and VLAN ID |
|
|
Authentication methods, including AAA, RADIUS, and HWTACACS |
|
|
Remote Network Monitoring (RMON) |
|
|
Dimensions (W x D x H) |
442 mm x 420 mm x 43.6 mm |
|
Weight (fully loaded) |
8.8 kg (19.4 lb) |
|
Environmental Parameters |
Operating temperature: 0°C to 40°C (32°F to 104°F) (0m to 1,800m) |
|
Storage temperature: -40°C to 70°C (-40°F to 158°F) |
|
|
Relative humidity: 5% to 95%, non-condensing |
|
|
Operating Voltage |
AC: 90V to 264V |
|
DC: -38.4V to -72V |
|
|
Maximum Power Consumption |
133W |
