Product Details
C9500-24Y4C-A
Original price was: $21,600.00.$5,562.00Current price is: $5,562.00.

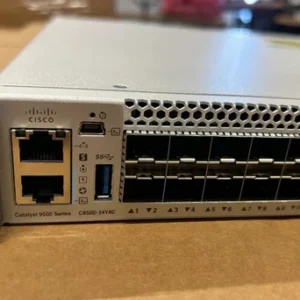

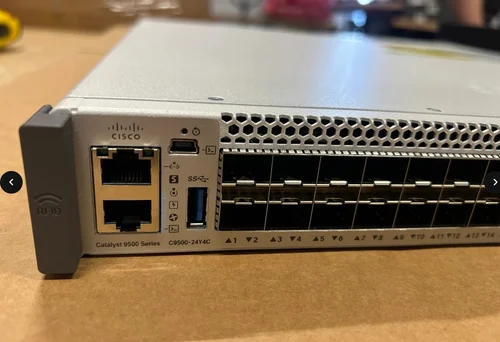

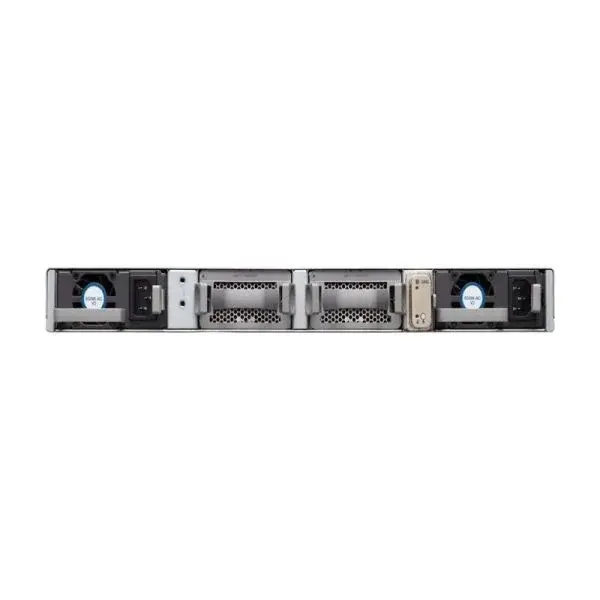

| Model: | C9500-24Y4C-A – Cisco Switch Catalyst 9500 |
| Detail: | Catalyst 9500 24×1/10/25G and 4-port 40/100G, Advantage, Need to order DNA License |
Description
C9500-24Y4C-A Specification |
|
|
Switching capacity |
Up to 1.6 Tbps |
|
Forwarding rate |
Up to 1 Bpps |
|
Total number of MAC addresses |
Up to 82,000 |
|
Total number of IPv4 routes (Address Resolution Protocol [ARP] plus learned routes) |
Up to 212,000 indirect + direct Up to 90,000 host/ARP |
|
Total number of IPv6 routes |
Up to 212,000 indirect + direct Up to 90,000 host |
|
QoS ACL scale |
Up to 16000 |
|
Security ACL scale |
Up to 27000 |
|
FNF entries |
Up to 98,000 |
|
DRAM |
16 GB |
|
Flash |
16 GB |
|
VLAN IDs |
4000 |
|
Total Switched Virtual Interfaces (SVIs) |
4000 |
|
Jumbo frame |
9216 bytes |
|
Power supply specifications |
|
|
Power Supply Selection |
C9K-PWR-650WAC-R or C9K-PWR-930WDC-R |
|
Dimensions, physical specifications, weight, and MTBF |
|
|
Dimensions (H x W x D) |
1.73 x 17.5 x 18.0 in |
|
Rack units (RU) |
1 RU |
|
Chassis with 2 power supplies and built-In fan |
20.99 lb (9.52 kg) |
|
Input voltage |
90 to 264 VAC |
|
Operating temperature |
32° to 104°F (0° to 40°C) |
|
Storage temperature |
-4° to 149°F (-20° to 65°C) |
|
Relative humidity operating and nonoperating noncondensing |
Ambient (noncondensing) operating: 5% to 90% Ambient (noncondensing) nonoperating and storage: 5% to 95% |
|
Altitude |
Operation up to 13,000 feet at 40°C |
|
MTBF (hours) |
336,780 |
