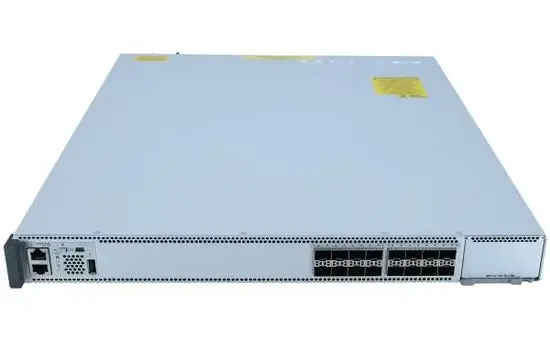

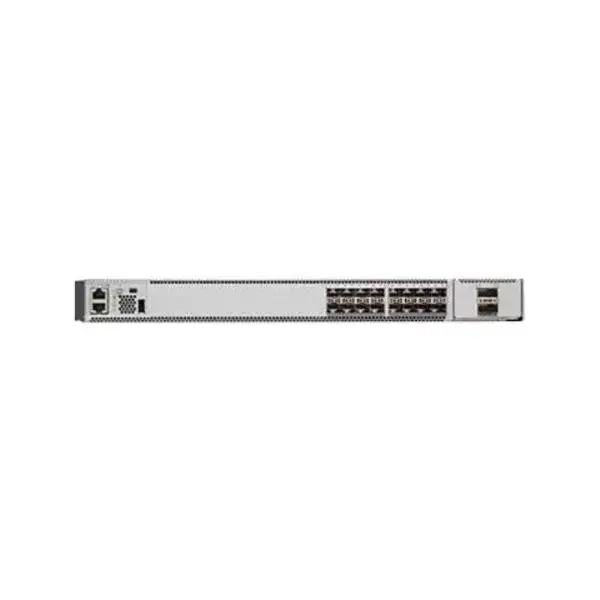

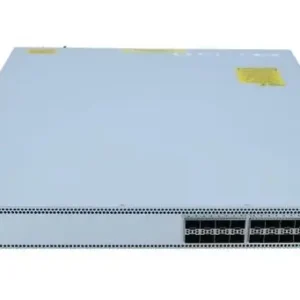

C9500-16X-A

C9500-16X-A Specification

Performance specifications C9500-16X-A

Switching capacity

Up to 240 Gbps

Forwarding rate

Up to 360 Mpps

Total number of MAC addresses

Up to 64,000

Total number of IPv4 routes (Address Resolution Protocol [ARP] plus learned routes)

Up to 64,000 indirect

Up to 80,000 host

Total number of IPv6 routes

Up to 32,000 indirect

Up to 40,000 host

QoS ACL scale

Up to 18000

Security ACL scale

Up to 18000

FNF entries

Up to 512,000

DRAM

16 GB

Flash

16 GB

VLAN IDs

4000

Total Switched Virtual Interfaces (SVIs)

4000

Jumbo frame

9198 bytes

Power supply specifications

Power Supply Selection

PWR-C4-950WAC-R or PWR-C4-950WDC-R

Power max rating

950 W

Dimensions, physical specifications, weight, and MTBF

Dimensions (H x W x D)

1.73 x 17.5 x 21.52 in

Rack units (RU)

1 RU

Chassis with 2 power supplies and built-In fan

23.6 lb (10.7 kg)

Input voltage

90 to 264 VAC

Operating temperature

32° to 104°F (0° to 40°C)

Storage temperature

-4° to 149°F (-20° to 65°C)

Relative humidity operating and nonoperating noncondensing

Ambient (noncondensing) operating: 5% to 90%

Ambient (noncondensing) nonoperating and storage: 5% to 95%

Altitude

Operation up to 6000 feet at 55°C and 13,000 feet at 45°C

MTBF (hours)

315,790
