ASR1004-20G-HA/K9
Original price was: $80,800.00.$42,350.00Current price is: $42,350.00.
< tbody >

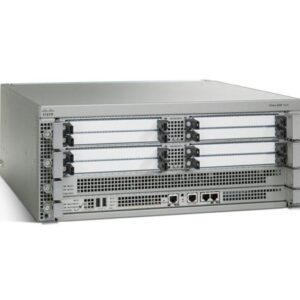

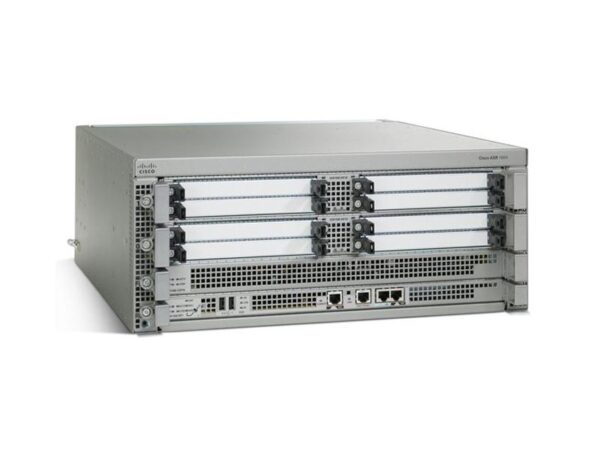

| Model: | ASR1004-20G-HA/K9 Cisco ASR 1000 Router |
| Detail: | Cisco ASR 1000 Router High Availability Bundle ASR1004-20G-HA/K9 |
WhatsApp Us
- Description
Description
ASR1004-20G-HA/K9 Specification | |
| General | |
| Device Type | Router – with Cisco ASR 1000 Series Embedded Services Processor, 20Gbps / Route Processor 1 / SPA Interface Processor 10G |
| Enclosure Type | Desktop – modular – 4U |
| Connectivity Technology | Wired |
| Performance | Bandwidth: 20 Gbps |
| Capacity | Concurrent L2TP VPN tunnels: 16000 ¦ Concurrent sessions: 32000 ¦ IPv4 routes: 1000000 ¦ IPv6 routes: 250000 ¦ IPSec VPN tunnels: 10000 ¦ NAT entries: 1000000 ¦ ACL rules: 16000 |
| Network / Transport Protocol | L2TP, IPSec |
| Remote Management Protocol | Telnet, SNMP 3, SSH |
| Encryption Algorithm | Triple DES, AES |
| Authentication Method | Secure Shell (SSH) |
| Features | Firewall protection, NAT support, VPN support, MPLS support, IPv6 support, Stateful switchover (SSO), Access Control List (ACL) support, Quality of Service (QoS), MPLS VPN, software redundancy |
| Compliant Standards | CISPR 24, EN55022, VCCI Class A ITE, EN55024, CISPR 22, EN50082-1, CSA 22.2 No. 60950, EN 61000-6-1, AS/NZS 60950-1, AS/NZ 3548 Class A, ICES-003 Class A, FCC CFR47 Part 15, EN300-386, UL 60950-1, IEC 60950-1, EN 60950-1 |
| Expansion / Connectivity | |
| Interfaces | Management: 1 x 10Base-T/100Base-TX – RJ-45 ¦ Management: 1 x console – RJ-45 ¦ Management: 1 x auxiliary – RJ-45 ¦ USB: 1 x |
| Expansion Slots | 1 (total) / 0 (free) x processor board ¦ 11 (total) / 9 (free) x expansion slot |
| Installed Modules Qty (Max) | 3 (installed) / 12 (max) |
| Power | |
| Power Device | Internal power supply |
| Power Redundancy | Yes |
| Installed Qty | 2 (installed) / 2 (max) |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Miscellaneous | |
| Rack Mounting Kit | Included |
| Software / System Requirements | |
| OS Provided | Cisco IOS Advanced Enterprise Services |
| Dimensions & Weight | |
| Width | 17.2 in |
| Depth | 21.9 in |
| Height | 7 in |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 – 90% |
