Product Details

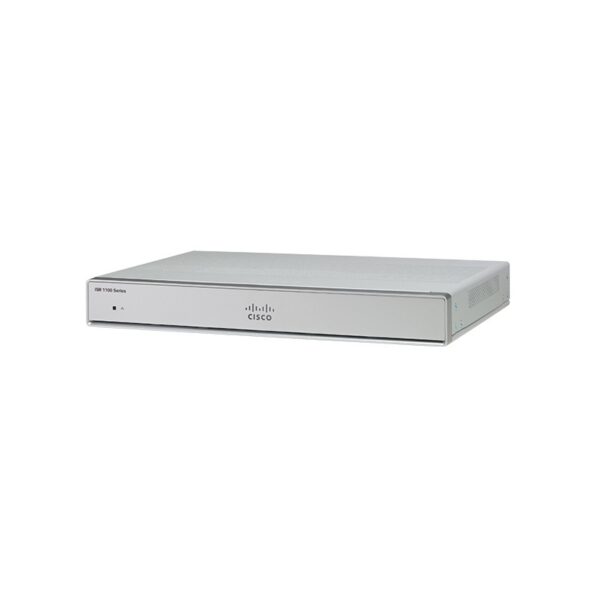

C1117-4PWZ
AED1,595.00
< tbody >
| Model: | C1117-4PWZ – Cisco 1100 Series Integrated Services Routers |
| Detail: | ISR 1100 4P DSL Annex A w/ LTE Adv SMS/GPS 802.11ac -Z WiFi |
Description
C1117-4PWZ Specification |
|
| Description | ISR 1100 4P DSL Annex A w/ LTE Adv SMS/GPS 802.11ac -Z WiFi |
|
Physical Properties |
|
| Dimensions (H x W x D) | Non-LTE models:
H x W X D = 1.75 x 12.7 x 9.03 in. (42 x 323 x 230mm) (includes rubber feet) |
| Weight with AC PS (w/o modules) | 5.5 Lbs. (2.5 kg) maximum |
|
AC Input Power |
|
| Input voltage | Universal 100 to 240 VAC |
| Frequency | 50-60 Hz |
| Input current | PoE not enabled: 0.82A maximum
PoE enabled: 1.55A Maximum |
| Surge current | 90 A peak and less than 8 Arms per half cycle |
|
Ports |
|
| Micro USB Port | One RJ-45: Separate console port |
| USB port | USB 3.0 Type A host port
USB devices supported: USB flash memory |
| Console port | One USB 5-pin micro Type B: Console management connectivity |
| 10/100/1000 Gigabit Ethernet | Two GE ports allocated among RJ45 and SFP as:
One combo port with 10/100/1000RJ-45 Ethernet port or SFP Ethernet port (labeled GE0/0/0) One dedicated 10/100/1000RJ-45 Ethernet port (labeled GE0/0/1) |
| Wireless VLANs | 32 (encrypted and non-encrypted VLANs) |
| Wireless specifications | 2×2 .11ac Wave 2 |
| Default and maximum DRAM | 4GB |
| Default and maximum flash | 4GB |
| Inline PoE | 4 ports for -8P PIDs, 2 ports for -4P PIDs
802.3af-compliant PoE or 802.3at-compliant PoE+ |
| Acoustic for Cisco 1100 Series ISRs | Not Applicable – Fanless design |
| Approvals and compliance | Emission
47 CFR Part 15
CISPR 32 Edition 2 EN 300 386 V1.6.1 EN 55032:2012/ AC:2013 EN 55032:2015 EN61000-3-2 2014 EN61000-3-3: 2013 ICES-003 ISSUE 6:2016 KN 32: 2015 V-2/2015.04 V-3/2015.04 TCVN 7189: 2009 CNS13438: 2006 IEC 60950-1 EN 60950-1 UL 60950-1 CSA C22.2 No. 60950-1 Immunity CISPR24: 2010 + A1: 2015 EN 300 386 V1.6.1 EN55024: 2010 + A1: 2015 KN35: 2015 TCVN 7317: 2003 |
|
Environmental |
|
| Operating humidity | 5 to 85% relative humidity |
| Operating temperature | 32 to 104°F (0 to 40°C) Sea Level;
32 to 77°F (0°C to 25°C) at 10,000 ft 1.5°C derating per 1000 ft |
| Altitude in China | 0-6560 ft (0-2000 m) |
| Altitude in all other countries | 0-10,000 ft (0-3050 m) |
|
Transportation and Storage |
|
| Nonoperating temperature | -40 to 158°F (-40 to 70°C) |
| Nonoperating humidity | 5 to 95% relative humidity (noncondensing) |
| Nonoperating altitude | 0 to 15,000 ft (0 to 4570m) |
