Product Details

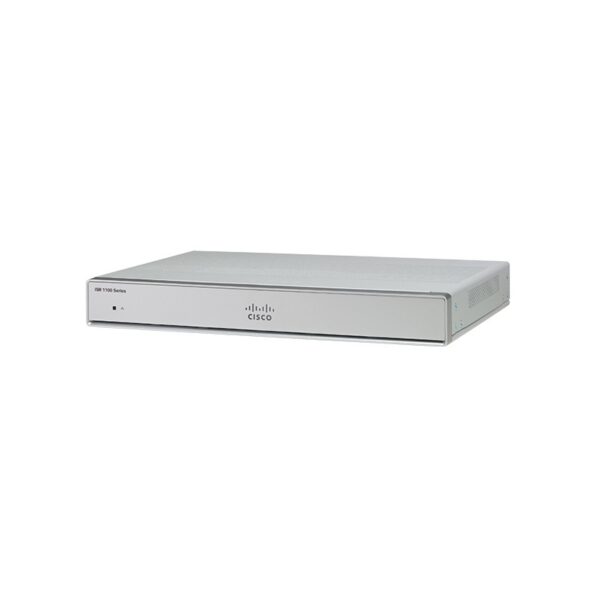

C1117-4PLTELA
AED2,095.00
| Model: | C1117-4PLTELA – Cisco 1100 Series Integrated Services Routers |
| Detail: | ISR 1100 4P Annex A Router w/ LTE Adv SMS/GPS LATAM & APAC |
Description
C1117-4PLTELA Specification |
|
|
Description |
ISR 1100 4P Annex A Router w/ LTE Adv SMS/GPS LATAM & APAC |
|
Physical Properties |
|
|
Dimensions (H x W x D) |
LTE models: H x W X D = 1.75 x 12.7 x 9.6 in. (44 x 323 x 244 mm) (includes rubber feet) |
|
Weight with AC PS (w/o modules) |
5.5 Lbs. (2.5 kg) maximum |
|
AC Input Power |
|
|
Input voltage |
Universal 100 to 240 VAC |
|
Frequency |
50-60 Hz |
|
Input current |
PoE not enabled: 0.82A maximum PoE enabled: 1.55A Maximum |
|
Surge current |
90 A peak and less than 8 Arms per half cycle |
|
Ports |
|
|
Micro USB Port |
One RJ-45: Separate console port |
|
USB port |
USB 3.0 Type A host port USB devices supported: USB flash memory |
|
Console port |
One USB 5-pin micro Type B: Console management connectivity |
|
10/100/1000 Gigabit Ethernet |
Two GE ports allocated among RJ45 and SFP as: One combo port with 10/100/1000RJ-45 Ethernet port or SFP Ethernet port (labeled GE0/0/0) One dedicated 10/100/1000RJ-45 Ethernet port (labeled GE0/0/1) |
|
Wireless VLANs |
32 (encrypted and non-encrypted VLANs) |
|
Wireless specifications |
2×2 .11ac Wave 2 |
|
Default and maximum DRAM |
4GB |
|
Default and maximum flash |
4GB |
|
Inline PoE |
4 ports for -8P PIDs, 2 ports for -4P PIDs 802.3af-compliant PoE or 802.3at-compliant PoE+ |
|
Acoustic for Cisco 1100 Series ISRs |
Not Applicable – Fanless design |
|
Approvals and compliance |
Emission 47 CFR Part 15
CISPR 32 Edition 2 EN 300 386 V1.6.1 EN 55032:2012/ AC:2013 EN 55032:2015 EN61000-3-2 2014 EN61000-3-3: 2013 ICES-003 ISSUE 6:2016 KN 32: 2015 V-2/2015.04 V-3/2015.04 TCVN 7189: 2009 CNS13438: 2006 IEC 60950-1 EN 60950-1 UL 60950-1 CSA C22.2 No. 60950-1 Immunity CISPR24: 2010 + A1: 2015 EN 300 386 V1.6.1 EN55024: 2010 + A1: 2015 KN35: 2015 TCVN 7317: 2003 |
|
Environmental |
|
|
Operating humidity |
5 to 85% relative humidity |
|
Operating temperature |
32 to 104°F (0 to 40°C) Sea Level; 32 to 77°F (0°C to 25°C) at 10,000 ft 1.5°C derating per 1000 ft |
|
Altitude in China |
0-6560 ft (0-2000 m) |
|
Altitude in all other countries |
0-10,000 ft (0-3050 m) |
|
Transportation and Storage |
|
|
Nonoperating temperature |
-40 to 158°F (-40 to 70°C) |
|
Nonoperating humidity |
5 to 95% relative humidity (noncondensing) |
|
Nonoperating altitude |
0 to 15,000 ft (0 to 4570m) |
