Product Details
C1000-24P-4G-L
Original price was: AED2,120.00.AED848.00Current price is: AED848.00.
| Model: | C1000-24P-4G-L – Cisco Catalyst 1000 Series Switches |
| Detail: | 24x 10/100/1000 Ethernet PoE+ ports and 195W PoE budget, 4x 1G SFP uplinks |
PDF Attachment: C1000-24P-4G-L Datasheet
Description

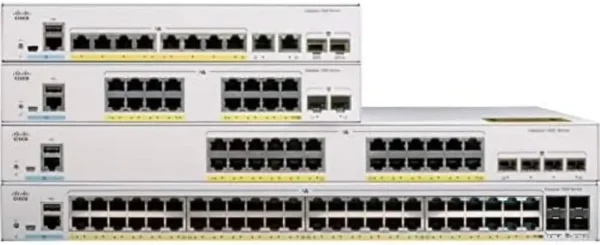

C1000-24P-4G-L – Cisco Catalyst 1000 Series Switches
Buying Cisco c1000-24p-4g-l Switches for Gear Net Technologies will be an awesome method to give your office organization, an increase in speed and execution that likewise at an extraordinarily low cost.
C1000-24P-4G-L – Cisco Catalyst 1000 Series Switches
The Cisco Catalyst c1000-24p-4g-l Switches are the establishment of most business organizations, and how critical they are for your work environment. Through Cisco Switches, gadgets associated with your organization can speak with each other and furthermore with different organizations effectively, much the same as the Internet. Cisco conveys a far-reaching arrangement of exchanging answers for Enterprise Networks, server farms, and more modest organizations. These arrangements are improved for a wide scope of enterprises, including specialist co-ops, monetary administrations, and the public area.
C1000-24P-4G-L – Cisco Catalyst 1000 Series Switches
Cisco® Catalyst® 1000 Series Switches are fixed overseen Gigabit Ethernet undertaking class Layer 2 switches intended for private companies and branch workplaces. These are basic, adaptable and secure switches ideal for out-of-the-wiring-wardrobe and basic Internet of Things (IoT) organizations. Cisco® Catalyst® 1000 work on Cisco IOS® Software and backing straightforward gadget the executives and organization the board through a Command-Line Interface (CLI) just as an on-box web UI. These switches convey improved organization security, network dependability, and operational proficiency for little associations.
Main Features
- 24P-4G-L
- Switch
- managed
- 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink)
- rack-mountable
- PoE+ (195 W)
C1000-24P-4G-L Specification |
|
| Description | 24x 10/100/1000 Ethernet PoE+ ports and 195W PoE budget, 4x 1G SFP uplinks |
| Gigabit Ethernet ports | 24 |
| Uplink interfaces | 4 SFP |
| PoE+power budget | 195W |
| Fanless | Y |
| Dimensions (WxDxH in inches) | 17.5 x 11.76 x 1.73 |
|
Console ports C1000-24P-4G-L |
|
| RJ-45 Ethernet | 1 |
| USB mini-B | 1 |
| USB-A port for storage and Bluetooth console | 1 |
|
Memory and processor C1000-24P-4G-L |
|
| CPU | ARM v7 800 MHz |
| DRAM | 512 MB |
| Flash memory | 256 MB |
|
Performance C1000-24P-4G-L |
|
| Forwarding bandwidth | 28 Gbps |
| Switching bandwidth | 56 Gbps |
| Forwarding rate(64—byte L3 packets) | 41.67 Mpps |
| Unicast MAC addresses | 16000 |
| IPv4 unicast direct routes | 542 |
| IPv4 unicast indirect routes | 256 |
| IPv6 unicast direct routes | 414 |
| IPv6 unicast indirect routes | 128 |
| IPv4 static routes | 16 |
| IPv6 static routes | 16 |
| IPv4 multicast routes and IGMP groups | 1024 |
| IPv6 multicast groups | 1024 |
| IPv4/MAC security ACEs | 600 |
| IPv6 security ACEs | 600 |
| Maximum active VLANs | 256 |
| VLAN IDs available | 4094 |
| Maximum STP instances | 64 |
| Maximum SPAN sessions | 4 |
| MTU-L3 packet | 9198 bytes |
| Jumbo Ethernet frame | 10,240 bytes |
| Dying Gasp | Yes |
| MTBF in hours (data) | 2,026,793 |
| MTBF in hours (PoE) | 698,220 |
| MTBF in hours (Full PoE) | 698,220 |
|
Environmental |
|
| Operating temperature Seal level | -5 to 50 deg C* |
| Up to 5,000ft (1500 m) | -5 to 45 deg C |
| Upto 10,000 (3000 m) | -5 to 40 deg C |
| Operating altitude | 10,000 ft (3,000m) |
| Operating relative humidity | 5% to 90% at 40C |
| Storage temperature | -13 to 158F (-25 to 70C) |
| Storage altitude | 15,000 ft (4500m) |
| Storage relative humidit | 5% to 95% at 65C |
| *Note:
50C operation is supported for short term operation only; GLC-BX-D/U and CWDM optics cannot support 50C operation; Minimum ambient temperature for cold start is at 0C (32F) |
|
|
Safety and compliance |
|
| Safety | UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1, IEC 62368-1, UL 62368-1
GB 4943.1-2011 |
| EMC: Emissions
|
47CFR Part 15 Class A, AS/NZS CISPR32 Class A, CISPR32 Class A, EN55032 Class A, ICES-003 Class A, VCCI-CISPR32 Class A, EN61000-3-2, EN61000-3-3, KN32 Class A, CNS13438 Class A |
| EMC: Immunity | EN55024 (including EN 61000-4-5), EN300386, KN35 |
| Environmental | Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU |
| Telco | Common Language Equipment Identifier (CLEI) code |
| U.S. government certifications | TBD |
|
Connectors and interfaces |
|
| Ethernet interfaces
|
* 10BASE-T ports: RJ-45 connectors, 2-pair Category 3, 4, or 5 Unshielded Twisted Pair (UTP) cabling
* 100BASE-TX ports: RJ-45 connectors, 2-pair Category 5 UTP cabling * 1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling * 1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Category 5 UTP cabling |
| Indicator LEDs
|
* Per-port status: link integrity, disabled, activity
* System status: system |
| Console cables
|
* CAB-CONSOLE-RJ45 Console cable 6 ft. with RJ-45
* CAB-CONSOLE-USB Console cable 6 ft. with USB Type A and mini-B connectors |
| Power
|
* Use the supplied AC power cord to connect the AC power connector to an AC power outlet
* Models have external power supply |
