Product Details
AIR-AP1815T-I-K9
AED631.00

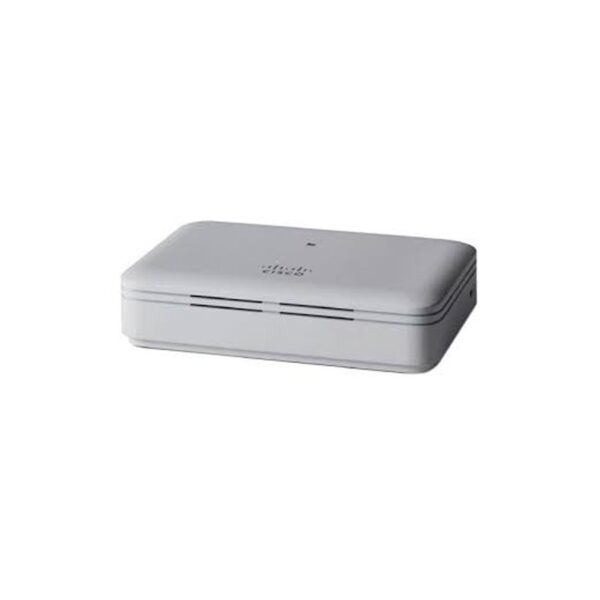

| Model: | Cisco Aironet 1815T 802.11ac Wave 2 Access Point |
| Detail: | Cisco Aironet AP1815T Series, Reg Domain I |
Description
Get a next-generation Cisco Aironet AIR-AP1815W-K-K9C Outdoor Access Point at the cheapest rate from our website. AIR-AP1815W-K-K9C is a Cisco Aironet 1815M 802.11ac Wave 2 Access Point with Cisco Aironet Mobility Express and Reg Domain K. Get more power, resilience, and advanced software features with these newest Outdoor Access Points!
Why you should buy AIR-AP1815W-K-K9C?
This Cisco Aironet AIR-AP1815W-K-K9C has Multiuser (MU) multiple-input, multiple-output (MU-MIMO) that allows simultaneous data transmission of data to multiple 802.11ac Wave 2–capable clients and improves the client experience. With the latest Wi-Fi standard and IEEE’s new 802.11ac Wave 2 standard, this outdoor access point eases the deployment of secure converged applications. This Cisco Aironet 1815M series is an optimized platform that provides flexible deployment mode through the Mobility Express Solution which is ideal for small to medium-sized deployments that require 50 or fewer access points. Gigabit Ethernet wired and 802.11ac Wave 2 wireless connectivity of these switches help to make your network ready for the mobile devices and applications it needs to support at a great value. Simplify your operations, get the reliability that you need, and deliver better performance with the AIR-AP1815W-K-K9C outdoor access point.
We the Gear Net Technologies are a Dubai-based company having many years of experience in distributing and supplying IT, networking, and security product and services across the globe. Avoid dashing from one shop to another to purchase your favorite product, just Buy Cisco AIR-AP1815W-K-K9C online from our website and get doorstep service. Also, we are having Cisco products for sale so you can buy the switch at the ever best price. So, what are you waiting for? Seize the opportunity as soon as possible! We are the most trusted Cisco switches suppliers in Dubai and always ready to fulfill your physical servers, switches, and other network product requirements. Additionally, you can also look for other products such as AIR-AP1815M-K-K9C, AIR-AP1815T-I-K9
Cisco Aironet 1815t Access Point Specification |
||||||||
| Authentication and security | ● Advanced Encryption Standard (AES) for Wi-Fi Protected Access 2 (WPA2)
● 802.1X, RADIUS authentication, authorization, and accounting (AAA) ● 802.11r ● 802.11i |
|||||||
| Software | ● Cisco Unified Wireless Network Software with AireOS Wireless Controllers Release 8.5 or later | |||||||
| Supported WLAN Controllers | ● Cisco 2500 Series Wireless Controllers, Cisco 3500 Series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, Cisco Wireless Services Module 2 (WiSM2) for Catalyst® 6500 Series Switches, Cisco 5500 Series Wireless Controllers, Cisco Flex® 7500 Series Wireless Controllers, Cisco 8500 Series Wireless Controllers, Cisco 9800 series Wireless Controllers, | |||||||
| Maximum clients | ● Maximum number of associated wireless clients: 200 per Wi-Fi radio, in total 400 clients per access point | |||||||
| 802.11ac | ● 2×2 single-user/multiuser MIMO with two spatial streams
● Maximal ratio combining (MRC) ● 20-, 40-, and 80-MHz channels ● PHY data rates up to 866.7 Mbps (80 MHz on 5 GHz) ● Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Rx) ● 802.11 Dynamic Frequency Selection (DFS) ● Cyclic shift diversity (CSD) support |
|||||||
| Ethernet ports | ● Authentication with 802.1X or MAC filtered
● Dynamic VLAN or per port ● Traffic locally switched or tunneled back to wireless LAN controller |
|||||||
| Data rates supported | 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps | |||||||
| 802.11b/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54 Mbps | ||||||||
| 802.11n data rates on 2.4 GHz: | ||||||||
| MCS Index1 | GI2 = 800 ns | GI = 400 ns | ||||||
| 20-MHz Rate (Mbps) | 20-MHz Rate (Mbps) | |||||||
| 0 | 6.5 | 7.2 | ||||||
| 1 | 13 | 14.4 | ||||||
| 2 | 19.5 | 21.7 | ||||||
| 3 | 26 | 28.9 | ||||||
| 4 | 39 | 43.3 | ||||||
| 5 | 52 | 57.8 | ||||||
| 6 | 58.5 | 65 | ||||||
| 7 | 65 | 72.2 | ||||||
| 8 | 13 | 14.4 | ||||||
| 9 | 26 | 28.9 | ||||||
| 10 | 39 | 43.3 | ||||||
| 11 | 52 | 57.8 | ||||||
| 12 | 78 | 86.7 | ||||||
| 13 | 104 | 115.6 | ||||||
| 14 | 117 | 130 | ||||||
| 15 | 130 | 144.4 | ||||||
| 802.11ac data rates on 5 GHz: | ||||||||
| MCS Index | Spatial Streams | GI = 800 ns | GI = 400 ns | |||||
| 20-MHz Rate (Mbps) | 40-MHz Rate (Mbps) | 80-MHz Rate (Mbps) | 20-MHz Rate (Mbps) | 40-MHz Rate (Mbps) | 80-MHz Rate (Mbps) | |||
| 0 | 1 | 6.5 | 13.5 | 29.3 | 7.2 | 15 | 32.5 | |
| 1 | 1 | 13 | 27 | 58.5 | 14.4 | 30 | 65 | |
| 2 | 1 | 19.5 | 40.5 | 87.8 | 21.7 | 45 | 97.5 | |
| 3 | 1 | 26 | 54 | 117 | 28.9 | 60 | 130 | |
| 4 | 1 | 39 | 81 | 175.5 | 43.3 | 90 | 195 | |
| 5 | 1 | 52 | 108 | 234 | 57.8 | 120 | 260 | |
| 6 | 1 | 58.5 | 121.5 | 263.3 | 65 | 135 | 292.5 | |
| 7 | 1 | 65 | 135 | 292.5 | 72.2 | 150 | 325 | |
| 8 | 1 | 78 | 162 | 351 | 86.7 | 180 | 390 | |
| 9 | 1 | – | 180 | 390 | – | 200 | 433.3 | |
| 0 | 2 | 13 | 27 | 58.5 | 14.4 | 30 | 65 | |
| 1 | 2 | 26 | 54 | 117 | 28.9 | 60 | 130 | |
| 2 | 2 | 39 | 81 | 175.5 | 43.3 | 90 | 195 | |
| 3 | 2 | 52 | 108 | 234 | 57.8 | 120 | 260 | |
| 4 | 2 | 78 | 162 | 351 | 86.7 | 180 | 390 | |
| 5 | 2 | 104 | 216 | 468 | 115.6 | 240 | 520 | |
| 6 | 2 | 117 | 243 | 526.5 | 130 | 270 | 585 | |
| 7 | 2 | 130 | 270 | 585 | 144.4 | 300 | 650 | |
| 8 | 2 | 156 | 324 | 702 | 173.3 | 360 | 780 | |
| 9 | 2 | – | 360 | 780 | – | 400 | 866.7 | |
| Maximum number of non-overlapping channels | A (A regulatory domain):
● 2.412 to 2.462 GHz; 11 channels ● 5.180 to 5.320 GHz; 8 channels ● 5.500 to 5.700 GHz; 8 channels (excludes 5.600 to 5.640 GHz) ● 5.745 to 5.825 GHz; 5 channels B (B regulatory domain): ● 2.412 to 2.462 GHz; 11 channels ● 5.180 to 5.320 GHz; 8 channels ● 5.500 to 5.720 GHz; 12 channels ● 5.745 to 5.825 GHz; 5 channels C (C regulatory domain): ● 2.412 to 2.472 GHz; 13 channels ● 5.745 to 5.825 GHz; 5 channels D (D regulatory domain): ● 2.412 to 2.462 GHz; 11 channels ● 5.180 to 5.320 GHz; 8 channels ● 5.745 to 5.825 GHz; 5 channels E (E regulatory domain): ● 2.412 to 2.472 GHz; 13 channels ● 5.180 to 5.320 GHz; 8 channels ● 5.500 to 5.700 GHz; 8 channels (excludes 5.600 to 5.640 GHz) F (F regulatory domain): ● 2.412 to 2.472 GHz; 13 channels ● 5.745 to 5.805 GHz; 4 channels G (G regulatory domain): ● 2.412 to 2.472 GHz; 13 channels ● 5.745 to 5.865 GHz; 7 channels H (H regulatory domain): ● 2.412 to 2.472 GHz; 13 channels ● 5.180 to 5.320 GHz; 8 channels ● 5.745 to 5.825 GHz; 5 channels I (I regulatory domain): ● 2.412 to 2.472 GHz; 13 channels ● 5.180 to 5.320 GHz; 8 channels |
K (K regulatory domain):
● 2.412 to 2.472 GHz; 13 channels ● 5.180 to 5.320 GHz; 8 channels ● 5.500 to 5.620 GHz; 7 channels ● 5.745 to 5.805 GHz; 4 channels N (N regulatory domain): ● 2.412 to 2.462 GHz; 11 channels ● 5.180 to 5.320 GHz; 8 channels ● 5.745 to 5.825 GHz; 5 channels Q (Q regulatory domain): ● 2.412 to 2.472 GHz; 13 channels ● 5.180 to 5.320 GHz; 8 channels ● 5.500 to 5.700 GHz; 11 channels R (R regulatory domain): ● 2.412 to 2.472 GHz; 13 channels ● 5.180 to 5.320 GHz; 8 channels ● 5.660 to 5.700 GHz; 3 channels ● 5.745 to 5.805 GHz; 4 channels S (S regulatory domain): ● 2.412 to 2.472 GHz; 13 channels ● 5.180 to 5.320 GHz; 8 channels ● 5.500 to 5.700 GHz; 11 channels ● 5.745 to 5.825 GHz; 5 channels T (T regulatory domain): ● 2.412 to 2.462 GHz; 11 channels ● 5.280 to 5.320 GHz; 3 channels ● 5.500 to 5.700 GHz; 8 channels (excludes 5.600 to 5.640 GHz) ● 5.745 to 5.825 GHz; 5 channels Z (Z regulatory domain): ● 2.412 to 2.462 GHz; 11 channels ● 5.180 to 5.320 GHz; 8 channels ● 5.500 to 5.700 GHz; 8 channels (excludes 5.600 to 5.640 GHz) ● 5.745 to 5.825 GHz; 5 channels |
||||||
| Note: This varies by regulatory domain. Refer to the product documentation for specific details for each regulatory domain. | ||||||||
| Available transmit power settings | 2.4 GHz
20 dBm (100 mW) 17 dBm (50 mW) 14 dBm (25 mW) 11 dBm (12.5 mW) 8 dBm (6.25 mW) 5 dBm (3.13 mW) 2 dBm (1.56 mW) -1 dBm (0.78 mW) |
5 GHz
20 dBm (100 mW) 17 dBm (50 mW) 14 dBm (25 mW) 11 dBm (12.5 mW) 8 dBm (6.25 mW) 5 dBm (3.13 mW) 2 dBm (1.56 mW) -1 dBm (0.78 mW) |
||||||
| Note: The maximum power setting will vary by channel and according to individual country regulations. Refer to the product documentation for specific details. | ||||||||
| Integrated antennas | ● 2.4 GHz, gain 2 dBi
● 5 GHz, gain 3 dBi |
|||||||
| Interfaces | ● 1 x 10/100/1000BASE-T autosensing (RJ-45)
● Three 10/100/1000BASE-T ports (local Ethernet ports), including one PoE out port: ◦ PoE out provides 802.3af when access point is powered by Cisco local power supply (AIR-PWR-D=) |
|||||||
| Indicators | ● Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors | |||||||
| Dimensions (W x L x H) |
● Access point (without mounting bracket): 6 x 4 x 1.5 in (152.4 x 101.6 x 37.7mm) | |||||||
| Weight | ● Access point without mounting bracket or any other accessories: 13 oz (365 g) | |||||||
| Environmental | ● Operating
◦ Temperature: 32° to 104°F (0° to 40°C) ◦ Humidity: 10% to 90% (non-condensing) ◦ Max. altitude: 9843 ft (3,000 m) @ 40°C ● Non-operating (storage and transportation) ◦ Temperature: -22° to 158°F (-30° to 70°C) ◦ Humidity: 10% to 90% (non-condensing) ◦ Max. altitude: 15,000 ft (4,500 m) @ 25°C |
|||||||
| System | ● 512 MB DRAM
● 128 MB flash ● 710 MHz quad-core |
|||||||
| Input power requirements | ● 44 to 52V DC | |||||||
| Power draw | ● 8.5W (no PoE out and no USB) | |||||||
| PoE output | ● 802.3af: 15.4W at port | |||||||
| Physical security | ● Kensington lock slot | |||||||
| Accessories | ● Physical security kit: AIR-SEC-50= (sold separately), with 50 pcs. security screws used to secure the access point onto wall-mounting bracket, 50 pcs. RJ-45 caps and 2 pcs. unlock keys used to block physical access to Ethernet ports | |||||||
| Warranty | Limited Lifetime Hardware Warranty | |||||||
| Compliance | ● Safety:
◦ UL 60950-1 ◦ CAN/CSA-C22.2 No. 60950-1 ◦ UL 2043 ◦ IEC 60950-1 ◦ EN 60950-1 ● Radio approvals: ◦ FCC Part 15.247, 15.407 ◦ RSS-247 (Canada) ◦ EN 300.328, EN 301.893 (Europe) ◦ ARIB-STD 66 (Japan) ◦ ARIB-STD T71 (Japan) ◦ EMI and susceptibility (Class B) ◦ FCC Part 15.107 and 15.109 ◦ ICES-003 (Canada) ◦ VCCI (Japan) ◦ EN 301.489-1 and -17 (Europe) ◦ EN 50385 ● IEEE standards: ◦ IEEE 802.11a/b/g, 802.11n, 802.11h, 802.11d ◦ IEEE 802.11ac ● Security: ◦ 802.11i, WPA2, WPA ◦ 802.1X ◦ AES ● Extensible Authentication Protocol (EAP) types: ◦ EAP-Transport Layer Security (TLS) ◦ EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol Version 2 (MSCHAPv2) ◦ Protected EAP (PEAP) v0 or EAP-MSCHAPv2 ◦ EAP-Flexible Authentication via Secure Tunneling (FAST) ◦ PEAP v1 or EAP-Generic Token Card (GTC) ◦ EAP-Subscriber Identity Module (SIM) ● Multimedia: ◦ Wi-Fi Multimedia (WMM) ● Other: ◦ FCC Bulletin OET-65C ◦ RSS-102 |
|||||||
