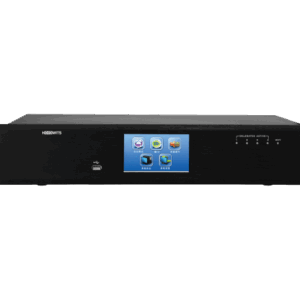

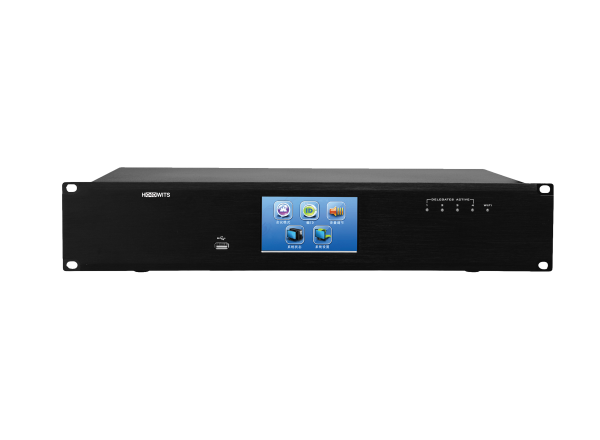

ACH-AIO
Audio Conference Host All-In-One Server
- The device features uncompressed 48kHz audio transmission with shielded Cat5e cables, a 16-channel DSP audio matrix, 10-band EQ, volume/delay adjustments, and 5ms ultra-low latency for high-fidelity sound quality and real-time processing.
- It supports hybrid wired/wireless conferencing with 4,096 wired and 300 wireless units, 24 simultaneous speakers (16 wired + 8 wireless), role-based audio separation, and cross-domain synchronization for seamless mixed outputs.
- Redundant backup mechanisms include dual-host hot standby, ring network redundancy, and T-link fault recovery (5ms loop restoration), ensuring uninterrupted operation during cable/unit failures.
- Flexible I/O includes 16 Phoenix outputs (expandable to 272), RCA/XLR interfaces, RS-232/485 controls, 4 RJ45 ports, USB recording, and camera tracking via PELCO-D/VISCA protocols.
- Multi-platform control via C/S, B/S, 4.3″ touchscreen, Android apps, or web UI enables audio parameter adjustments, language switching (CN/EN/RU/FR), voting/sign-in, and role-based unit management.
- Advanced features include fire alarm integration, 63+1 wired interpretation channels, AP channel optimization, battery/WiFi monitoring for wireless units, and cloud/local configuration backups.
- Conference management tools support FIFO/VOICE/APPLY modes, agenda workflows (attendance, voting, scoring), partitioned phase control for 16 independent systems, and transcription system integration.
- System diagnostics include status LEDs, log management, firmware OTA updates, and unified monitoring via an audio management platform for networked devices (mixers, amplifiers, etc.).
- Description
Description
Technical Spec
| Microphone capacity | Wired microphone≤4096; wireless microphone≤300 |
| Simultaneous interpretation channel | 63+1 channels |
| Frequency response | 80~16KHz |
| SNR | >78dB(A) |
| Dynamic range | >80dB |
| THD | <0.05% |
| Main power | 100-120VAC/200-240VACbyswitch |
| Audio input | LINEIN1: 775mVrms balanced; 2 output phoenix terminals: 775mVrms balanced; LINEIN2: 775mVrms unbalanced |
| Audio output | LINEOUT1: 1Vrms balanced; 16 multi-function output phoenix terminals: 1Vrms balanced; LINEOUT2: 1Vrms unbalanced |
| Output load | >1KΩ |
| EXTENSION port | 1 for connect conference system extension equipment |
| DANTE/NC port | 1 for connect to external devices with DANTE protocol |
| WIFI network port | 1 for connect to wireless AP |
| PC network port | 1 for connect to the computer |
| DELEGATES output interface | 4 for connect conference speaking units |
| RS-232 interface | 2 channels, 1 channel for camera tracking, 1 channel for docking external equipment |
| RS-485 interface | 1 for camera tracking |
| Static power consumption | 30W |
| Output power consumption | 320W |
| Wired microphone connection method | Special cable (6 pins) |
| Touch screen | 4.3-inch fu×olor touch screen |
| Colour | Black |
| Net weight | 5.6Kg |
| Dimension | 484×303×88mm (L×W×H) |
| Installation method | 19-inch standard cabinet |
