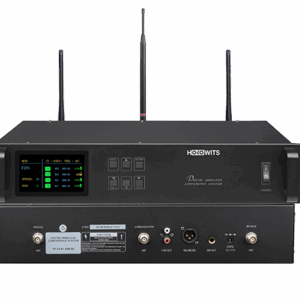

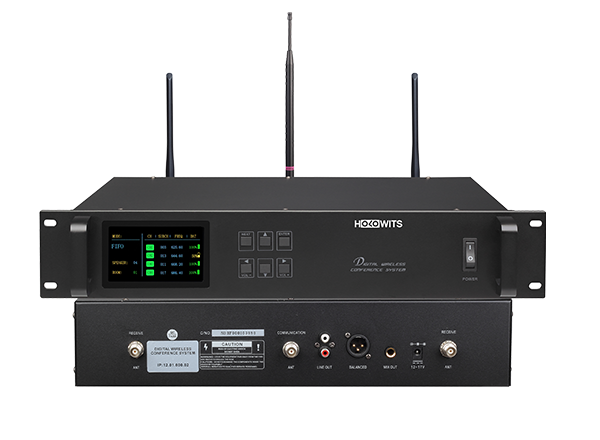

ACF E1-0
The Digital Wireless Conference System Host
- Processes audio and control signals without the need for complex wiring
- Supports unlimited units, with ID: 001-008 and IP: 001-160, allowing versatile placement
- Offers FIFO, limit speech, and chairperson mode, with up to four simultaneous speakers.
- 4.3-inch TFT color screen with 800×480 pixels, featuring easy-to-navigate menu design.
- Enables the chairperson to override other speakers for smooth meeting management.
- Automatically shuts down units when the host is turned off to conserve battery life.
- Effective working range of up to 100 meters, with a communication range of 100-150 meters.2U Chassis Design: Fits standard 19-inch racks, ensuring easy installation in various conference environments.
- Operates at DC 12-17V with a power consumption of just 6.5W, ensuring energy efficiency.
- Description
Description
Technical Spec
| Technology | Digital Wireless |
| IP & ID Coding | ID: 001-008, IP: 001-160 |
| Display | 4.3-inch TFT Color Screen, 800×480 pixels |
| Speech Modes | FIFO, Limit Speech, Chairperson Mode |
| Simultaneous Microphone | Up to 4 |
| Chairperson Control | Priority Override |
| Power Supply | DC 12-17V |
| Power Consumption | 6.5W |
| Communication Range | 100-150 meters |
| Effective Working Distance | ≤ 100 meters |
| Chassis Design | 2U, 19-inch rack-mountable |
| Sensitivity | -105 dBm |
| Signal-to-Noise Ratio | > 90 dB |
| Distortion | < 0.05% dB @ 1KHz |
| Standard Antennas | 3 external, extendable, effective up to 60 meters (clear sight) |
