Product Details
AC6805
AED9,990.00

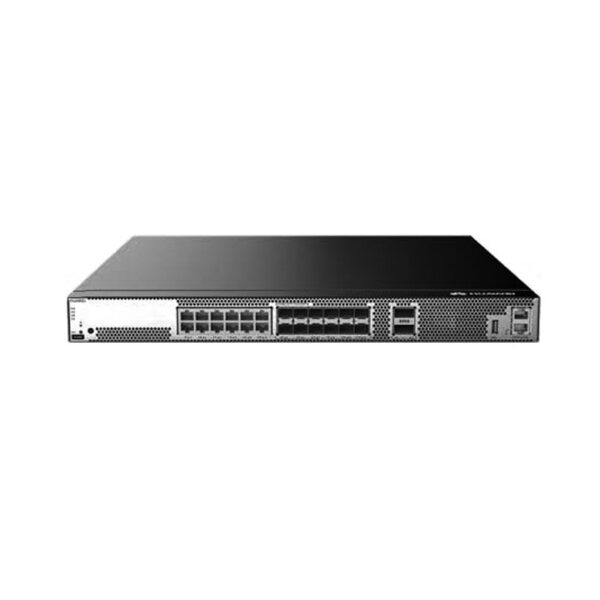

| Model: | AC6805 – Huawei Wireless Access Controllers |
| Detail: | AC6805 mainframe (12*GE ports, 12*10GE SFP+ ports, 2*40GE QSFP+ ports, no power) |
Description
AC6805 Specification |
|
|
Forwarding Capability |
40 Gbit/s |
|
Maximum Number of Managed APs |
6K |
|
Maximum Number of Access Users |
64K |
|
AP-AC Networking |
Layer 2 or Layer 3 networking |
|
Forwarding Modes |
Direct forwarding or tunnel forwarding |
|
AC Active/Standby Modes |
1+1 HSB or N+1 backup |
|
Radio Protocols |
802.11 a/b/g/n/ac/ac Wave 2/ax |
|
Dimensions (H x W x D) |
43.6 mm x 442 mm x 440 mm |
|
Interface type |
2 x 40G (QSFP+) + 12 x 10GE (SFP+) + 12 x GE |
|
Maximum power consumption |
231.7 W |
|
Operating temperature and altitude |
-60 m to +1800 m: 0°C to 45°C 1800 m to 5000 m: Temperature decreases by 1°C every time the altitude increases 220 m. |
|
Relative humidity |
5% RH to 95% RH, non-condensing |
|
Power module |
AC and DC power modules, supporting hot swapping, and hot backup NOTE:A maximum of two power modules are supported |
|
Number of managed APs |
Central APs：768 Common APs and RUs：6K NOTE:The RUs managed by the WLAN AC do not occupy the WLAN AC’s license resources. However, the total number of managed common APs and RUs cannot exceed the upper limit allowed by the WLAN AC. |
|
Number of access users |
64K NOTE:The maximum number of access users varies depending on the authentication mode. |
|
Number of MAC address entries |
100K |
|
Forwarding capability |
40Gbit/s NOTE:Packet length: 1024 bytes |
|
Number of VLANs |
4K |
|
Number of routing entries |
IPv4: 16K l IPv6: 4K |
|
Number of ARP entries |
100K |
|
Number of multicast forwarding entries |
2K |
|
Number of DHCP IP address pools |
256 IP address pools, each of which contains a maximum of 64K IP addresses |
|
Number of local accounts |
6.4K |
|
Number of ACLs |
32K |
